SINOTRUK HOWO Compressed Garbage Collection Truck 5-6CBM LHD 4X2 ZZ1087D3415C180

SINOTRUK HOWO Compressed Garbage Collection Truck 5-6CBM LHD 4X2 ZZ1087D3415C180

  • SINOTRUK HOWO Compressed Garbage Collection Truck 5-6CBM LHD 4X2 ZZ1087D3415C180
  • SINOTRUK HOWO Compressed Garbage Collection Truck 5-6CBM LHD 4X2 ZZ1087D3415C180
  • SINOTRUK HOWO Compressed Garbage Collection Truck 5-6CBM LHD 4X2 ZZ1087D3415C180
  • SINOTRUK HOWO Compressed Garbage Collection Truck 5-6CBM LHD 4X2 ZZ1087D3415C180
SINOTRUK HOWO Compressed Garbage Collection Truck 5-6CBM LHD 4X2 ZZ1087D3415C180
Product Details:
Place of Origin: China
Brand Name: SINOTRUK HOWO
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ1087D3415C180
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD28000-USD29000/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2,000units per month
Contact Now
Detailed Product Description
Product Name: Compressed Garbage Collection Truck Model: ZZ1087D3415C180
Drive Type: LHD 4X2 Emission Standard: Euro 2
Engine: CY4102, 110HP Tank Body Capacity: 5-6CBM
High Light:

waste management garbage truck

,

rubbish removal trucks

SINOTRUK HOWO Compressed Garbage Collection Truck 5-6CBM LHD 4X2 ZZ1087D3415C180



Description:



SINOTRUK HOWO Compressed Garbage Collection Truck 5-6CBM LHD 4X2 ZZ1087D3415C180

Compressed garbage truck, connecting the main compartment with a collection box, with the

most reasonable angle, blade type main launch board, has a special parabolic surface

optimal loading angle formed by compressed garbage collecting box filling mechanism of

30T above the rolling force, with 10T loading pressure in the pressure compartment, at

the same time, launched in 5T has always been to squeeze pressure, squeeze compressed

garbage, is conducive to the compressed garbage from the main carriage. Full volume

utilization rate can reach more than 97%.



The vehicle function is complete, easy to operate, garbage loading, the hydraulic drive

and electronic program controller control, accurate, reliable performance, performance

and reliable. The garbage filling body, can automatically continuous work, can also be

semi automatic one-way work, or manual operation, and return to the function.



The vehicle hydraulic drive, the maximum working pressure of 210bar, the system working

pressure 180bar, rolling force on a garbage collection box is 30 tons, by collecting box

into the main chamber when the loading capacity is 10 tons, the main launch plate on the

extrusion pressure of compressed garbage, keeping 5 tons of garbage unloading force

launched the 10 tons, the compression loading mechanism of each loading compression cycle

time is 25 seconds, the launch cycle time in shirk refuse, no more than 45 seconds.



Specification:



SINOTRUK HOWO Compressed Garbage Collection Truck 5-6CBM LHD 4X2 ZZ1087D3415C180

Chassis Model

ZZ1087D3415C180

Drive Type

4×2

Engine

CY4102, 83KW/110HP

Cabin

2080 lengthened cab(with one sleeper, air-conditioner and two new-style seat)

Transmission

HW35505TCL(5 forwards & 1 reverses)

Front Axle

2.7 Tons

Driving Axle

5.5Tons

Clutch

hydraulically operating with air assistance

Rim/ Tire

7.50-16LT,7.50R16LT

Wheel base

3360(mm)

Capacity of Cargo body

5-6CBM

Time of cycle

≦25s

Time of discharge

≦40s

Max compression

≧35000kgs

Overall dimension

6520×2050×2460(mm)

The curb weight

3950(Kg)

Gross weight

8000 kg

Max. speed

95km/h

Color

White, red, green, golden and so on.


Applications:



Which is mainly used for municipal solid waste (MSW), commercial waste, and are used for non-toxic, non

corrosive and non industrial radioactive waste collection and transportation.



Competitive Advantage:



1) The vehicle function is complete, easy to operate, big garbage loading capacity

2) the hydraulic drive and electronic program controller control is more accurate and with reliable performance

3) The optimized hydraulic control system helps to avoid wrong operation, it has higher safety and running

efficiency.

4) excellent appearance of cabin, safety, reliable
5) low fuel consumption
6) with all kinds of truck model, which can fulfill your requirement
7) the key parts adopt the world's top technology products
8) based on strong technical support and top level technology make the trucks with high quality and more reliable
9) competitive price, cost-effective
10) quick and efficient spare parts supply bring you more convenient

11) fast delivery time, we can arrange production according to your needs exactly and quickly

12) professional import and export dealing procedure, make customs clearance more high efficiency

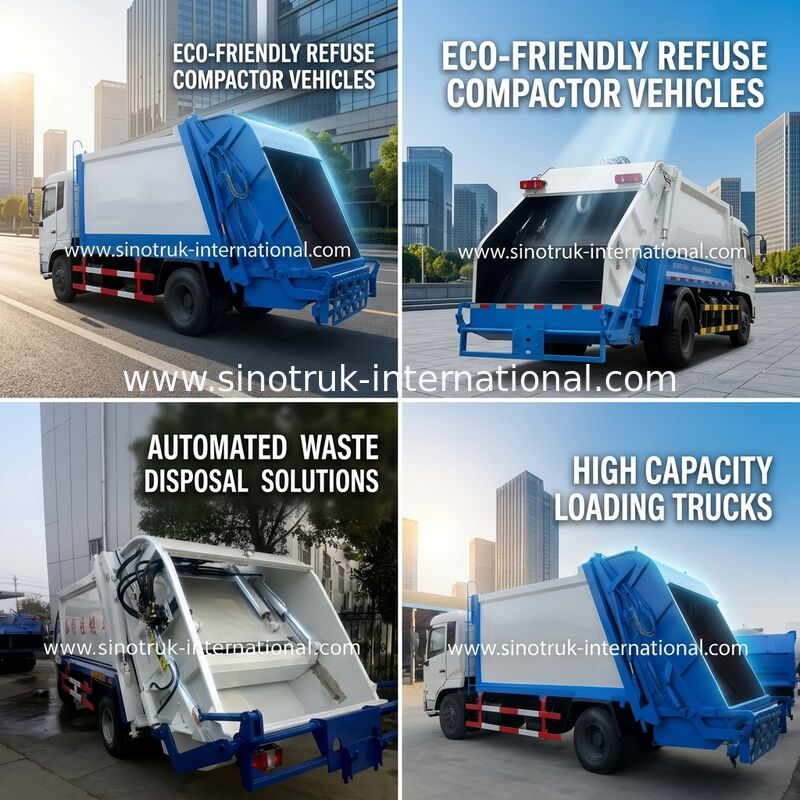

SINOTRUK HOWO Compressed Garbage Collection Truck 5-6CBM LHD 4X2 ZZ1087D3415C180 0
