Home ProductsOil Tank Truck

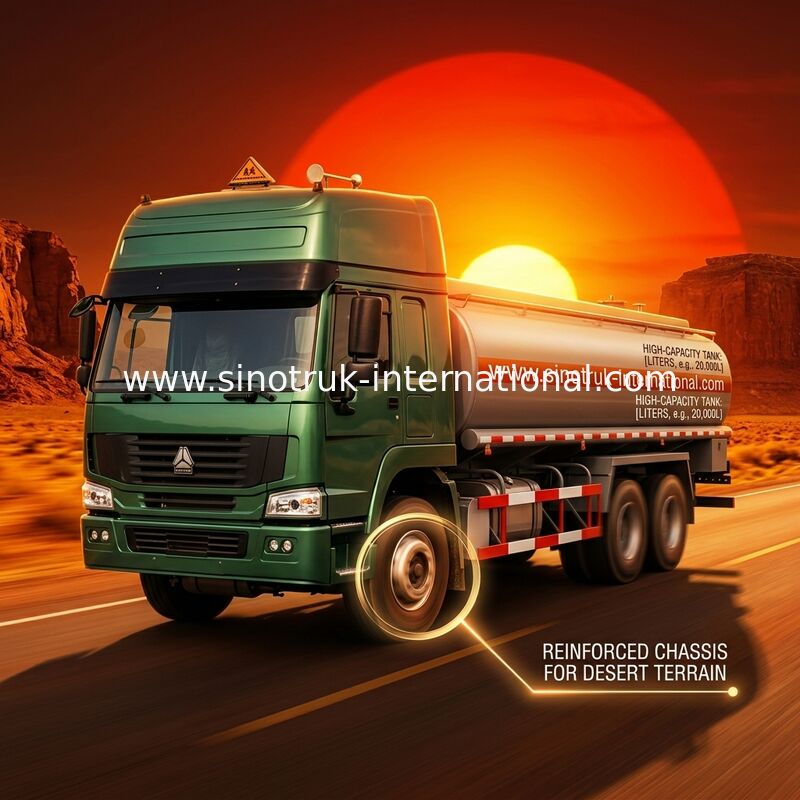

16-20 CBM Computer Refueling Vehicle Crude Oil Transportation Trucks

16-20 CBM Computer Refueling Vehicle Crude Oil Transportation Trucks

  • 16-20 CBM Computer Refueling Vehicle Crude Oil Transportation Trucks
  • 16-20 CBM Computer Refueling Vehicle Crude Oil Transportation Trucks
  • 16-20 CBM Computer Refueling Vehicle Crude Oil Transportation Trucks
  • 16-20 CBM Computer Refueling Vehicle Crude Oil Transportation Trucks
16-20 CBM Computer Refueling Vehicle Crude Oil Transportation Trucks
Product Details:
Place of Origin: China
Brand Name: SINOTRUK HOWO
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ1257M4341W
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD41000-USD41500/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2,000units per month
Contact Now
Detailed Product Description
Product Name: Oil Tank Truck Model: ZZ1257M4341W
Drive Type: LHD 6X4 Emission Standard: Euro 2
Engine: WD615.87, 290HP Tank Body Capacity: 16-20CBM
High Light:

fuel tanker truck

,

fuel oil delivery truck

Oil Tank Truck SINOTRUK HOWO 15-20Tons for Oil Transportation 6X4 LHD Euro2 290HP



Description:



Oil Tank Truck SINOTRUK HOWO 15-20 Tons for Oil Transportation 6X4 LHD Euro2 290HP

The Oil Tank Truck is also called mobile fuel trucks, computer refueling vehicle, oil

tanker, tanker loading oil, pulling oil, oil truck, edible oil transport vehicle, mainly

for oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil)

transportation and storage. According to a variety of gas or oil, and the use of

different environment with the oil, pump oil, a variety of oil equipment, put the

function. Tanker special part is composed of a tank, PTO, drive shaft, gear pump,

pipeline system components. Pipes system is composed of an oil pump, three through four

ball valve, two-way valve. Filter pipe.



Specification:



Oil Tank Truck SINOTRUK HOWO 15-20Tons for Oil Transportation 6X4 LHD Euro2 290HP

Chassis Model

ZZ1257M4341W

Drive Type

6×4

Engine

WD615.87, 290HP

Cabin

HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat)

Transmission

HW15710(10 forwards & 2 reverses)

Front Axle

HF9(1X9 Tons)

Driving Axle

HC16(1X16 Tons)

Clutch

hydraulically operating with air assistance

Rim/ Tire

11.00R20, Radial tyre

Wheel base

4400+1350(mm)

Capacity of tank body

16-20CBM

Thickness of tank body

5mm,With 5 cabin

Basic setup

Gear oil pump, flow meter, flash hider, fire extinguisher

Overall dimension

9200×2500×3150mm

The curb weight

11940(Kg)

Gross weight

25000 kg

Max. speed

95km/h

Color

White, red, green, golden and so on.


Applications:



The Oil tank truck is mainly used for oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil)

transportation and storage.



Competitive Advantage:



1) Our company produces the Oil tank truck with advanced butt welding technology, after the forming

of  the tank high pressure gas leak detection, the tank has a high intensity, stable center of gravity,

safe  and stable vehicle characteristics;

2) Shot blasting pre treatment process after welding tank, rust, paint adopts the advanced baking  technology, durable and beautiful appearance. Independent sub positions,

3) Divided into different oil products, chemicals, food, as liquid food truck, chemical liquid truck, insulation  liquid vehicles, dangerous goods transport vehicles, the asphalt transportation vehicle

4) External sandblasting processing of tank, internal anti-corrosion treatment,        Outside surface adopts advanced polyurethane paint, beautiful appearance

5) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation,

150 degree tilt up and down. Options small flow pump, spraying reel to wake insecticidal garden trees

 flowers and  plants

6) with all kinds of truck model, which can fulfill your requirement
7) the key parts adopt the world's top technology products
8) based on strong technical support and top level technology make the trucks with high quality and

more reliable
9) competitive price, cost-effective
10) quick and efficient spare parts supply bring you more convenient

11) fast delivery time, we can arrange production according to your needs exactly and quickly

12) professional import and export dealing procedure, make customs clearance more high efficiency
