International Water Truck 25-35CBM 8X4 For Water Carrying Landscaping

International Water Truck 25-35CBM 8X4 For Water Carrying Landscaping

  • International Water Truck 25-35CBM 8X4 For Water Carrying Landscaping
  • International Water Truck 25-35CBM 8X4 For Water Carrying Landscaping
  • International Water Truck 25-35CBM 8X4 For Water Carrying Landscaping
  • International Water Truck 25-35CBM 8X4 For Water Carrying Landscaping
International Water Truck 25-35CBM 8X4 For Water Carrying Landscaping
Product Details:
Place of Origin: China
Brand Name: SINOTRUK HOWO
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ1317N4641W
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD41000-USD41500/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2,000units per month
Contact Now
Detailed Product Description
Product Name: Water Tank Truck Model: ZZ1317N4641W
Drive Type: LHD 8X4 Emission Standard: Euro 2
Engine: WD615.69, 336HP Tank Body Capacity: 25-35CBM
High Light:

international water truck

,

construction water truck

Water tank truck 25-35CBM 8X4 for water carrying, for water carrying, landscaping



Description:



Water tank truck 25-35CBM 8X4 for water carrying, for water carrying, landscaping

SINOTRUK Water tank truck adopts import brand vacuum pump or domestic famouse brand pump.



Self suction height: less than or equal to 7m, sprinkler width: is equal to or more than 20m, maximum range: greater than or equal to 28m; adjusting the pillars, the range is more than or equal to 28m; also can be adjusted into a mist, a range of equal to or more than 5m.



Working principle is truck engine driven gearbox, gearbox mounted power take-off drive

sprinkler pumps, sprinkler pump produces the main driving force, inside the tank of

liquid through the pipe to spray out.



Before the spray sprinkle, is arranged

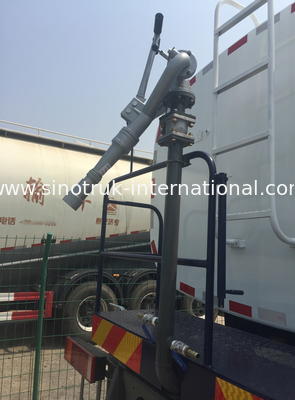

in front of the duck shaped nozzle or round blunt mouth, mounted behind the open sprinkler nozzle or shower nozzle of cylinder, at the back of the work platform, equipped with water cannons.



It is widely used in city landscaping, road or ming site dusty restrain.

Which can choose more truck chassis brand, such as HOWO, HOWO A7, Golden prince, STYER

and so on.



Specification:



Water tank truck 25-35CBM 8X4 for water carrying, for water carrying, landscaping

Chassis Model

ZZ1317N4641W

Drive Type

8×4

Engine

WD615.69, 336HP

Cabin

HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat)

Transmission

HW15710(10 forwards & 2 reverses)

Front Axle

HF9(1X9 Tons)

Driving Axle

HC16(1X16 Tons)

Clutch

hydraulically operating with air assistance

Rim/ Tire

11.00R20, Radial tyre

Wheel base

1800+4325+1350(mm)

Capacity of tank body

25-35CBM

Spraying width of travel

14.8m

Spraying height

≧30m

Water sucking depth

≧4m

Overall dimension

11920×2496×3550mm

The curb weight

15180(Kg)

Gross weight

31000 kg

Max. speed

95km/h

Color

White, red, green, golden and so on.


Applications:



The Water tank truck is mainly used for construction of mines and other enterprises, road flushing and

dust covering in large-medium-scale cities.



Competitive Advantage:



1) competitive price, cost-effective
2) quick and efficient spare parts supply bring you more convenient, based on strong technical support and top level technology make the trucks with high quality and more reliable

3) the key parts adopt the world's top technology products

4) fast delivery time, we can arrange production according to your needs exactly and quickly

5) professional import and export dealing procedure, make customs clearance more high efficiency

6) High pressure, wide range of spraying good flushing effect

7) Blunt head universal adjustment, meet the arbitrary Angle and the combination of the flush operation

8) Pneumatic control and manual control system can realize two functions

9) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation,

150 degree tilt up and down. Options small flow pump, spraying reel to wake insecticidal garden trees

flowers and plants

10) External sandblasting processing of tank, internal anti-corrosion treatment, Outside surface adopts advanced polyurethane paint, beautiful appearance

11) with all kinds of truck model, which can fulfill your requirement



International Water Truck 25-35CBM 8X4 For Water Carrying Landscaping 0International Water Truck 25-35CBM 8X4 For Water Carrying Landscaping 1
