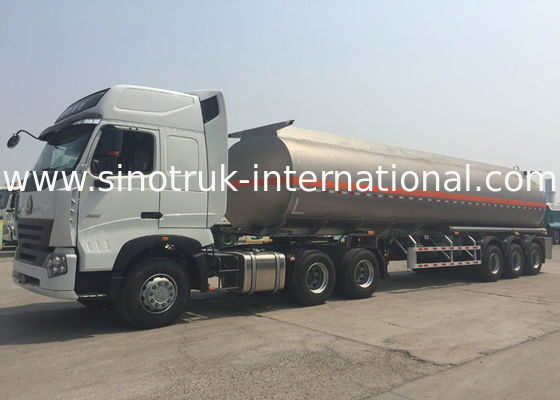

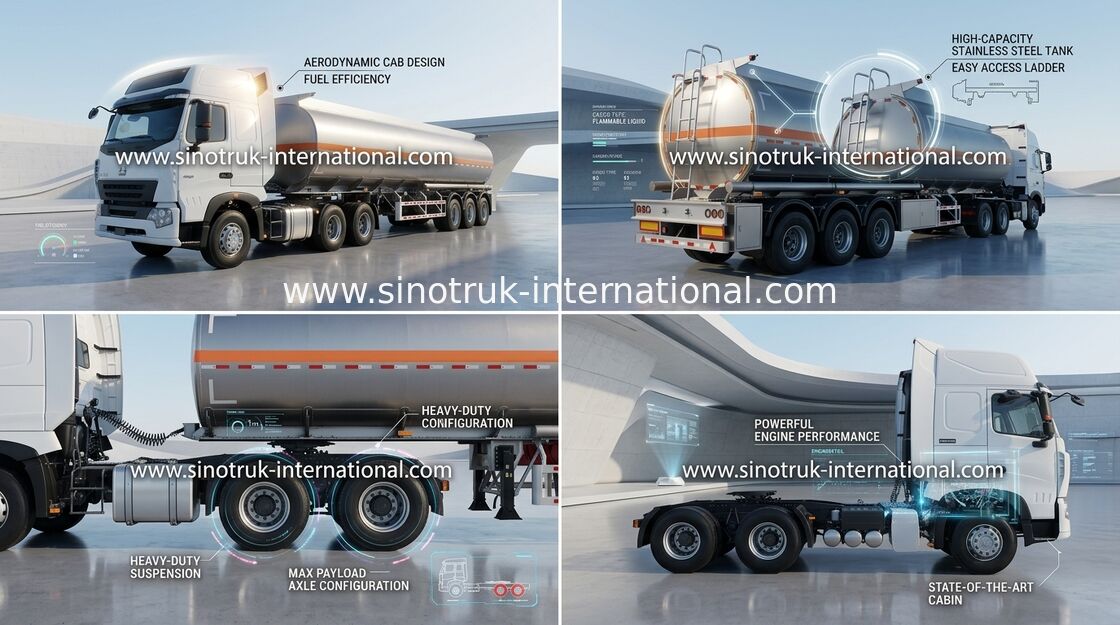

Large Capacity Diesel Semi Trailer Fuel Tanker Truck Tri - Axle 50 - 80 Tons

Large Capacity Diesel Semi Trailer Fuel Tanker Truck Tri - Axle 50 - 80 Tons

    • Large Capacity Diesel Semi Trailer Fuel Tanker Truck Tri - Axle 50 - 80 Tons
    • Large Capacity Diesel Semi Trailer Fuel Tanker Truck Tri - Axle 50 - 80 Tons
    • Large Capacity Diesel Semi Trailer Fuel Tanker Truck Tri - Axle 50 - 80 Tons
    • Large Capacity Diesel Semi Trailer Fuel Tanker Truck Tri - Axle 50 - 80 Tons
  • Large Capacity Diesel Semi Trailer Fuel Tanker Truck Tri - Axle 50 - 80 Tons

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: 3 Axles 50000 Liters Oil carrying Trailer

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: Negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship, or by 40GP, 40HQ,40FR and so on
    Delivery Time: 20 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 4,000units per month
    Detailed Product Description
    Product Name: Semi Trailer Oil Tank Truck Model: 3 Axles 50000Liters
    Fifth Wheel: #50, #90 Loading Capacity: 50-80tons
    Tank Capacity: 45-60CBM Thickness Of Tank Body: 4mm 5mm 6mm Optional
    Axles: 3X13 Tons,3X16 Tons Material: Carbon Steel Or Mn Steel

    HOWO A7 Large Capacity Tri - Axle Diesel Tanker Semi Trailer Truck 50 - 80Tons​





    Description:



    HOWO A7 Large Capacity Tri - Axle Diesel Tanker Semi Trailer Truck 50 - 80Tons

    Semi Trailer Tank Truck is divided into two parts, oil tank part and a support body

    skeleton or driving part is traction head connecting Trailer tanker, compared with

    ordinary single type tank truck, semi-trailer tank truck can effectively improve the

    transportation efficiency. In the same tonnage and reduce  the transportation cost,

    saving fuel. The rear of Semi trailer tank is approximately the same,which have 2 Axles

    and 3 Axles, according to the need to choose  the traction head.



    According to customer's special requirements for the use of centrifugal pumps, gear

    pumps, stainless steel pumps, with large flow, fast suction speed and so on.

    Tanker measurement can choose single count, flow meter double counting, assembly tax

    controlled computer refueling machine, installed 10 to 15 meters automatic telescopic

    return reel, equipped with a gas gun. Edible oil can be used edible oil computer meter

    to measure.



    Tank body using 4mm or 6mm quality carbon steel according to the national standard, the

    shape of oval or square round tank, can be installed 1-4 kinds of oil. Also can produce

    heating insulation series tank.



    The tank design using multi channel swash plate. Using high pressure gas leakage

    detection, the tank  has characteristics of high strength, stable center of gravity, high

    vehicle safety and stable and so on.





    Specification:



    HOWO A7 Large Capacity Tri - Axle Diesel Tanker Semi Trailer Truck 50 - 80Tons
    Model 3 Axles 50000Liters
    Axle

    FUWA brand, 13ton, 3 Sets

    Main beam

    Beam height: 500mm

    Upper plate: 10mm

    Double Middle plate: 6 mm

    Down plate: 12mm

    Tank Body Thickness

    4mm, 5mm, 6mm optional

    Material

    Carbon steel or Mn steel

    Gross vehicle weight

    65000kgs

    King pin

    #90

    Support leg

    JOST Standard 28T

    Suspension

    Normal suspension

    Thickness leaf spring

    10/10/10

    Tire/Rim

    1200R20, 13pcs, 8.5, 12 pcs

    Brake Chamber

    Standard 6 pcs

    Spare wheel carrier

    2 pcs

    Tool box

    1 pcs

    Electrical System

    Chinese standard 24C lighting system

    Side Maker Lamp

    LED lamp

    Painting

    Polyurethane Paint

    Overall dimension

    14100×2500×3780(mm)

    Color White, red, green, golden and so on.




    Applications:



    It’s suitable for storage and carrying all kinds of Oils .



    Competitive Advantage:



    1) it has higher safety and running efficiency.

    2) Optimized structure design, let it have lower self weight, but more stonger

    3) excellent appearance of cabin, safety, reliable

    4) low fuel consumption

    5) the key parts adopt the world's top technology products

    6) based on strong technical support and top level technology make the trucks with high

        quality and more reliable

    7) competitive price, cost-effective

    8) quick and efficient spare parts supply bring you more convenient

    9) fast delivery time, we can arrange production according to your needs exactly and Quickly

    10) professional import and export dealing procedure, make customs clearance more high efficiency



    Large Capacity Diesel Semi Trailer Fuel Tanker Truck Tri - Axle 50 - 80 TonsLarge Capacity Diesel Semi Trailer Fuel Tanker Truck Tri - Axle 50 - 80 Tons
