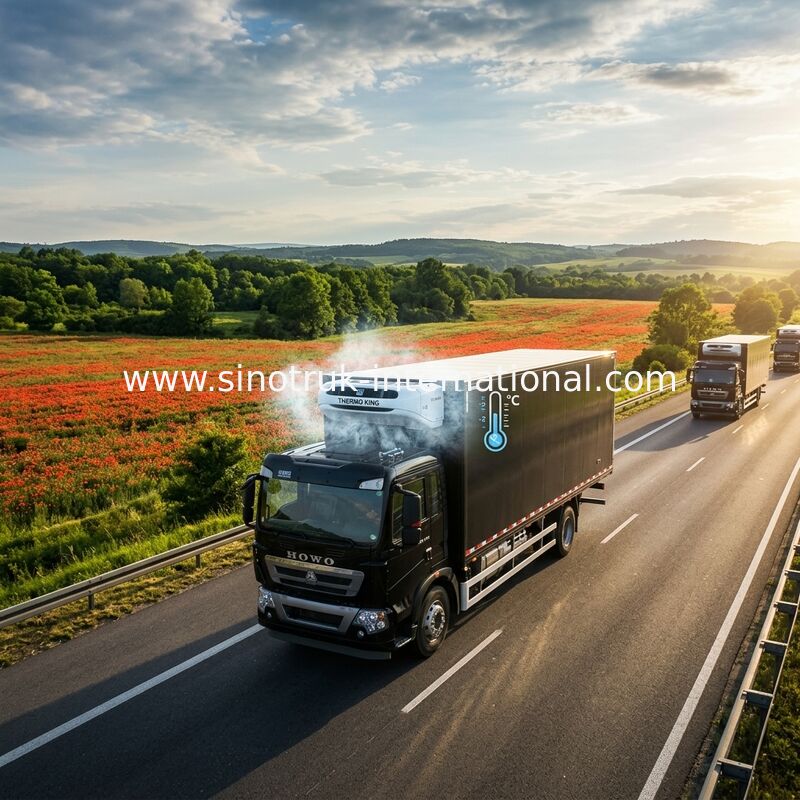

Commercial Refrigerated Truck SINOTRUK HOWO 20 - 25 CBM German MAN Engine Euro 4

Commercial Refrigerated Truck SINOTRUK HOWO 20 - 25 CBM German MAN Engine Euro 4

    • Commercial Refrigerated Truck SINOTRUK HOWO 20 - 25 CBM German MAN Engine Euro 4
    • Commercial Refrigerated Truck SINOTRUK HOWO 20 - 25 CBM German MAN Engine Euro 4
    • Commercial Refrigerated Truck SINOTRUK HOWO 20 - 25 CBM German MAN Engine Euro 4
    • Commercial Refrigerated Truck SINOTRUK HOWO 20 - 25 CBM German MAN Engine Euro 4
  • Commercial Refrigerated Truck SINOTRUK HOWO 20 - 25 CBM German MAN Engine Euro 4

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: ZZ1167H501GD1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD26000-USD26500/UNIT)negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 25 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Refrigerated Food Truck Model: ZZ1167H501GD1
    Drive Type: LHD 4X2 Emission Standard: Euro 4
    Engine: German Man Engine MC07.21-40, 210HP Loading Capacity: 16Tons

    Refrigerated Truck SINOTRUK HOWO T5G 4x2 LHD 20 - 25CBM German MAN engine Euro4



    Description:



    Refrigerated Truck SINOTRUK HOWO T5G 4x2 LHD 20 - 25CBM German MAN engine Euro4

    Our company's production of circular easy brand refrigerator car introduced Italy,

    Germany, the United States overall polyester foam technology, and high strength fiber

    plastic and other material manufacturing technology and equipment


    Refrigerated truck is one kind of closed van truck which is used to transport the frozen

    or fresh goods,  was fitted with the refrigerating unit device and polyurethane thermal

    insulation van and it is refrigeration special use transport truck, usually used for

    transporting frozen foods ( freezer truck ), dairy ( milk truck ), vegetables and fruits

    ( fresh goods transport vehicle ), vaccine and drug ( vaccine vehicles) etc.



    Refrigerated trucks by special automobile chassis walking part, and the insulation body (usually made of polyurethane materials, glass steel, color steel plate, stainless steel, etc.) inside the refrigeration unit, temperature recorder and other components, special requirements for vehicles, such as car meat hook, hook can be mounted to the flesh, waist, Aluminum Alloy rail, ventilation slots and other options.



    Specification:



    Refrigerated Truck SINOTRUK HOWO T5G 4x2 LHD 20 - 25CBM German MAN engine Euro4

    Chassis Model

    ZZ1167H501GD1

    Drive Type

    4×2

    Engine

    MC07.21-40, 210HP, Euro4

    Cabin

    T5G-M lengthened cab(with one sleeper, air-conditioner and two new-style seat)

    Transmission

    DC6J70TC(6 forwards & 1 reverses)

    Front Axle

    1090

    Driving Axle

    1118

    Clutch

    hydraulically operating with air assistance

    Rim/ Tire

    10.00R20

    Wheel base

    4400(mm)

    Van board material

    polymer composites

    Dimension of cargo body

    6200*2300*2000mm, Bottom:3mm Side:1.5mm

    Refrigerator

    XL-300,  -18C0

    Overall dimension

    7128×2462×3375mm

    The curb weight

    8500(Kg)

    Gross weight

    16000 kg

    Max. speed

    95km/h

    Color

    White, red, green, golden and so on.


    Applications:



    Refrigerated Truck can widespread use in transportation of all kind of frozen food, vaccinum, vegetables and fruit.



    Competitive Advantage:

    1)Sealed container to ensure the sealing of refrigerated trucks to reduce the heat exchange with the outside world strictly, to ensure that the refrigerator to maintain the low temperature refrigeration equipment and refrigeration container. To install the connectivity and provide Everfount refrigeration, ensure containers within the allowable temperature in the range of goods.

    2) so that our company refrigeration, heat preservation technology level basic reached

    world advanced water level.

    3) Refrigeration, heat preservation car body with light, high strength, good heat

    insulation performance,  high temperature stability, no pollution, oxidation, easy

    maintenance, but also has low noise, low energy consumption, low failure rate, food

    preservation effect is good and so on a series of advantages
    4) A lot of technical indicators and the world's advanced level is close to the fully

    closed polyurethane  plate bonded glass steel structure, this product is light weight,

    low heat leakage.

    5) The "sandwich" structure (low thermal conductivity), good thermal

    insulation effect. Using unsaturated  polyester resin as binder, plus a cushion, with

    rigid polyurethane foam insulation, heat conduction low  coefficient, high strength. High

    strength plate bonding, high sealing glue, forming a whole. The structure of the

    refrigerator car is dominant in the domestic market, our company is using the technology

    of  refrigerated trucks.
    6) with all kinds of truck model, which can fulfill your requirement
    7) the key parts adopt the world's top technology products
    8) based on strong technical support and top level technology make the trucks with high

    quality and more reliable
    9) competitive price, cost-effective

    10) quick and efficient spare parts supply bring you more convenient

    11) fast delivery time, we can arange production according to your needs exactly and quickly

    12) professional import and export dealing precedure, make customs clearance more high efficiency
