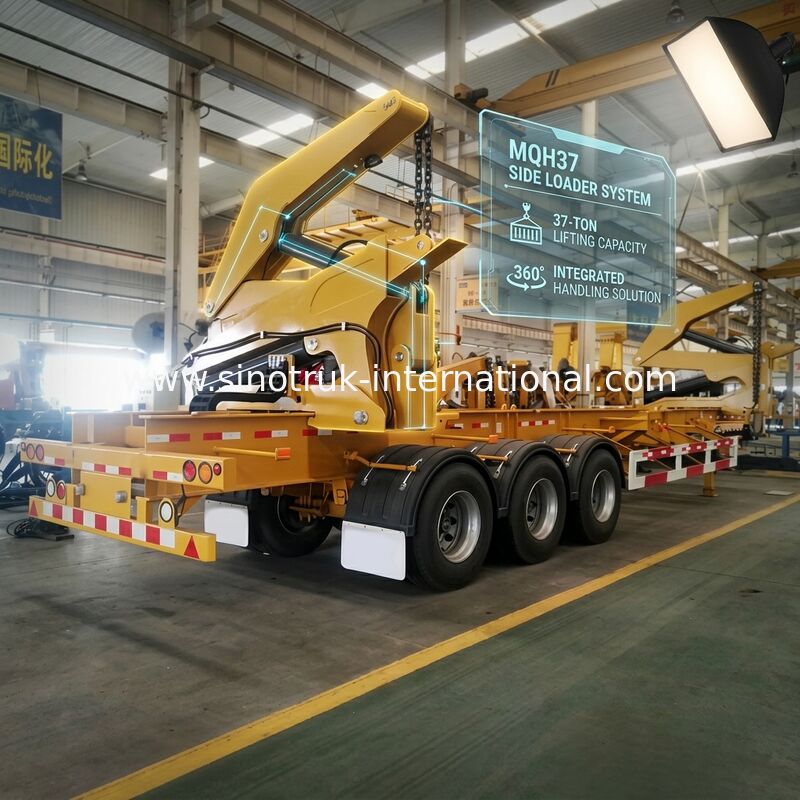

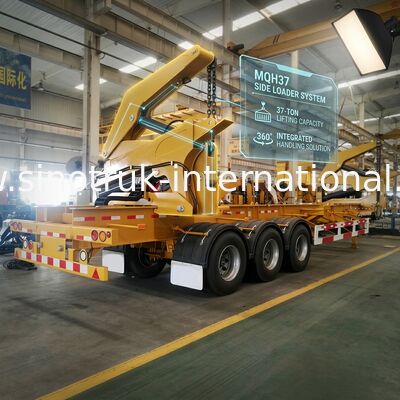

Yellow 40ft Truck Mounted Crane 3 Axle Self Loading Container Truck Trailer

Yellow 40ft Truck Mounted Crane 3 Axle Self Loading Container Truck Trailer

    • Yellow 40ft Truck Mounted Crane 3 Axle Self Loading Container Truck Trailer
    • Yellow 40ft Truck Mounted Crane 3 Axle Self Loading Container Truck Trailer
    • Yellow 40ft Truck Mounted Crane 3 Axle Self Loading Container Truck Trailer
    • Yellow 40ft Truck Mounted Crane 3 Axle Self Loading Container Truck Trailer
  • Yellow 40ft Truck Mounted Crane 3 Axle Self Loading Container Truck Trailer

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK trailer +XCMG Crane
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: 3 Axles 37 tons

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD79000-USD85000/UNIT)negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 25 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Container Side Lifter Total Length: 13m
    Max. Lifting Capacity: 37Tons Model: 3 Axles Semi Trailer
    Hydralic System: Europe Brand Trailer Chassis: Crane Special Using

    40ft container side loader 3 axle container self loading container truck trailer



    Description:



    40ft container side loader 3 axle container self loading container truck trailer

    Container Side Loader is special using for container loading and lifting. Which can lift and transport all kinds of 20 or 40 feets container, widespread use in transportation, civil  construction (including constructional engineering, road and bridge engineering, municipal  constructional engineering, mechanical engineering etc.), landscape sanitation, electricity and  telecommunication industry, field operation, pipeline transportation, stone industry, dock cargo handing and long distance goods transfer. After installed additional device, it can be used for traffic accidents and high altitude rescue.



    Which can choose 2 Alxes or 3 Axles, can laoding 30 - 40tons, 2X20 feets or 1 X 40feets container.



    The body includes a body, one side is hinged on the top of the at least one telescopic arm, hinged on the telescopic arm of the front end of the spreader, and a driving unit, which is characterized in that each telescopic arm is connected with a hydraulic cylinder, the cylinder luffing cylinder is fixed on the body the piston rod, wherein the hinge cylinder in the telescopic arm, one side of the piston cylinder of the telescopic arm through the spreader to the local rotation.



    Specification:



    Container Side Lifter 3 Axles Semi Trailer lift and carry 20ft or 40ft container
    Model 3 Axles for 20 or 40 feet Container
    Max lifting capacity 37 tons
    Axle FUWA brand, 16ton, 3 Sets
    Main beam

    Beam height: 500mm

    Upper plate: 10mm

    Double Middle plate: 6 mm

    Down plate: 12mm

    Dimension of Flat 13000*3000*6mm
    Material Carbon steel or Mn steel
    Gross vehicle weight 70000kgs
    King pin #90
    Support leg JOST Standard 28T
    Suspension Normal suspension
    Thickness leaf spring 10/10/10
    Tire/Rim 1200R20, 13pcs, 8.5, 12 pcs
    Brake Chamber Standard 6 pcs
    Spare wheel carrier 2 pcs
    Tool box 1 pcs
    Electrical System Chinese standard 24C lighting system
    Side Maker Lamp LED lamp
    Painting Polyurethane Paint
    Overall dimension 16000×2500×3880(mm)
    Color White, red, green, golden and so on.


    Applications:



    Container Sider Loader which can widespread use in transportation, for all kinds 40 or 20 feets container,

    popular used in sea port.



    Competitive Advantage:



    1) competitive price, cost-effective
    2) quick and efficient spare parts supply bring you more convenient

    3) fast delivery time, we can arrange production according to your needs exactly and quickly

    4) professional import and export dealing procedure, make customs clearance more high efficiency

    5) Adopted imported hydraulic pump, valve and other hydraulic components, lock micro products, to ensure safety and durability

    6) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation,

    150 degree tilt up and down. Options small flow pump, spraying reel to wake insecticidal garden trees flowers and plants

    7) with all kinds of truck model, which can fulfill your requirement
    8) the key parts adopt the world's top technology products
    9) based on strong technical support and top level technology make the trucks with high quality and

    more reliable

    10) Product is made of high strength steel plate welding, increase the structural strength, reduce the weight of the engine, greatly improving the lifting performance

    11) Hexagon bending forming jib, reduced the horizontal shaking, make the operation more safety; Rotating device is made of high quality rotary support and reducer, make the action more supple and smooth.

    12) External sandblasting processing of tank, internal anti-corrosion treatment, Outside surface adopts advanced polyurethane paint, beautiful appearance
