Place of Origin: | China |
Brand Name: | SINOTRUK |
Certification: | ISO/3C/BV/IFA/SGS |
Model Number: | ZZ1257S4341W |
Minimum Order Quantity: | 1unit |
---|---|
Price: | Negotiation |
Packaging Details: | Waxing in Bulk ship, Roro ship, Container |
Delivery Time: | 10-30 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 3,000 units per month |
Product Name: | Sprinkling Truck | Model: | ZZ1257S4341W |
---|---|---|---|
Color: | Orange | Transmission: | HW15710(10 Forwards & 2 Reverses) |
Cabin: | HW76 Lengthened Cab | Engine: | WD615.47, 371HP |
High Light: | Sinotruk Howo Sprinkling Truck,LHD 6x4 Sprinkling Truck,ZZ1257S4341W Sprinkling Truck |

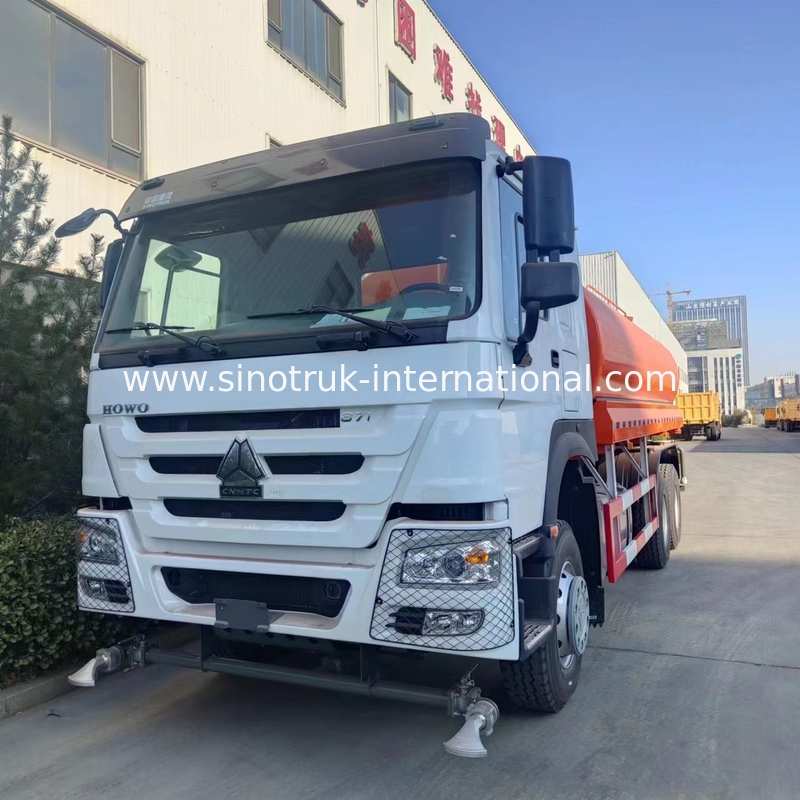

Sinotruk Howo Lhd 6×4 371hp Sprinkling Truck
SINOTRUK HOWO LHD 6x4 371HP SPRINKLING TRUCK
Description:
SINOTRUK HOWO Water Tank Sprinkling Truck LHD 6X4 18CBM For Pesticide Spraying
Sprinkling Truck used in the construction of factories and mining enterprises, large and medium-sized city road cleaning, dust, urban greening, status spraying, pesticide spraying, guardrail washing, but also has water transport, drainage and other emergency fire function
The water tank truck produced by our company has the characteristics of high pressure, wide spraying range and good flushing effect. The flushing head can be adjusted universally to meet any angle and combination of flushing operations. The system can realize pneumatic control and manual control.

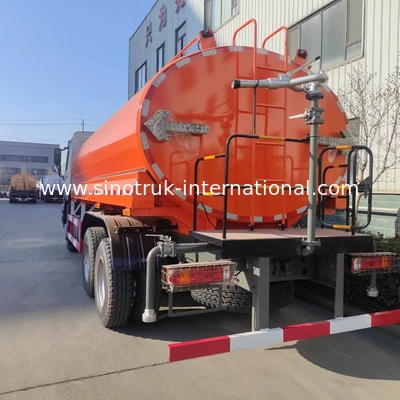

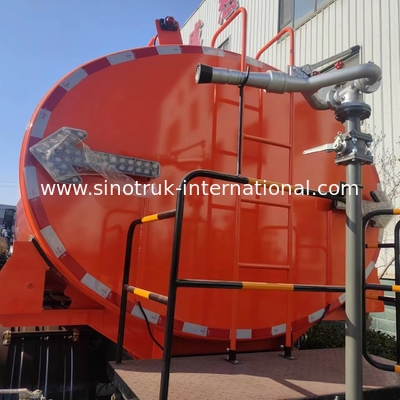

The exterior of the tank is sandblasted, the interior of the tank is treated with anti-corrosion, and the exterior surface is painted with high-grade polyurethane finish, which has a beautiful appearance. It can be equipped with front and rear high spray, with spray diffusion function, and can turn 360 degrees horizontally, or tilt up and down 150 degrees. It can be equipped with small flow pump and spray reel to wake up the garden flowers and kill insects
The working principle is that the truck engine drives the gear box, and the power on the gear box takes off to drive the sprinkler pump, which generates the main driving force of the sprinkler pump and sprays the liquid in the tank through the pipeline. Self-priming height: ≤ 7m, nozzle width: ≥ 20m, maximum range: ≥ 28m; Adjust the column, the range is greater than or equal to 28m; It can also be adjusted into fog, with the range equal to or greater than 5m. Before spraying, the front is equipped with a duck-shaped nozzle or a round blunt mouth, and the rear is equipped with an open nozzle or a cylinder of shower nozzle. At the back of the working platform, a high-pressure water cannon is installed.
Specification:
SINOTRUK HOWO LHD 6×4 371HP SPRINKLING TRUCK | |
Chassis Model | ZZ1257M4341W |
Drive Type | 6×4 |
Engine | WD615.47, 371HP |
Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat) |
Transmission | HW15710(10 forwards & 2 reverses) |
Front Axle | HF9(1X9 Tons) |
Driving Axle | HC16(1X16 Tons) |
Clutch | hydraulically operating with air assistance |

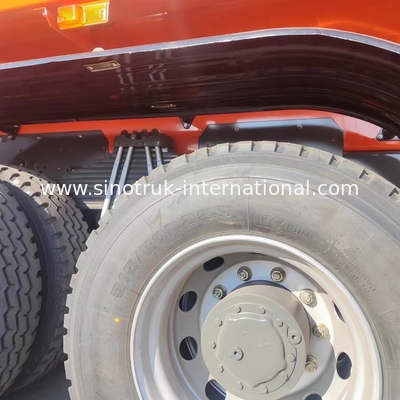

Rim/ Tire | 315/30R22.5 |
Wheel base | 4400+1350(mm) |
Capacity of tank body | 15-20CBM |
Spraying width of travel | 14.8m |
Spraying height | ≧30m |
Water sucking depth | ≧4m |
Overall dimension | 9520×2496×3150mm |
The curb weight | 10180(Kg) |
Gross weight | 25000 kg |
Max. speed | 95km/h |
Color | White, red, green, orange and so on. |
Applications:
The water tank truck is mainly used for the construction of mines and other enterprises, and for the washing and dust prevention of roads in large and medium-sized cities.
Competitive Advantage:
1) Competitive price and high cost performance
2) Fast and efficient supply of spare parts brings you more convenience
3) The delivery time is fast. We can arrange production accurately and quickly according to your needs
4) Professional import and export processing process makes customs clearance more efficient
5) High pressure, wide spraying range, good flushing effect
6) Universal adjustment of blunt head to meet any angle and combination punching operation
7) Pneumatic control and manual control system can realize two functions
8)The exterior of the tank body is sandblasteinterior id, the s antiseptic, and the exterior surface is made of advanced polyurethane paint, with beautiful appearance
9)Front and rear high spray optional, spray diffusion function, 360 degrees rotation, up and down tilt 150 degrees. Choose a small flow pump, spray reel to wake up insecticidal garden trees and flowers
10) Various types of trucks can meet your needs.
11) the key parts adopt the world's top technology products
12)Based on strong technical support and top technology, the truck is of higher quality and more reliable
