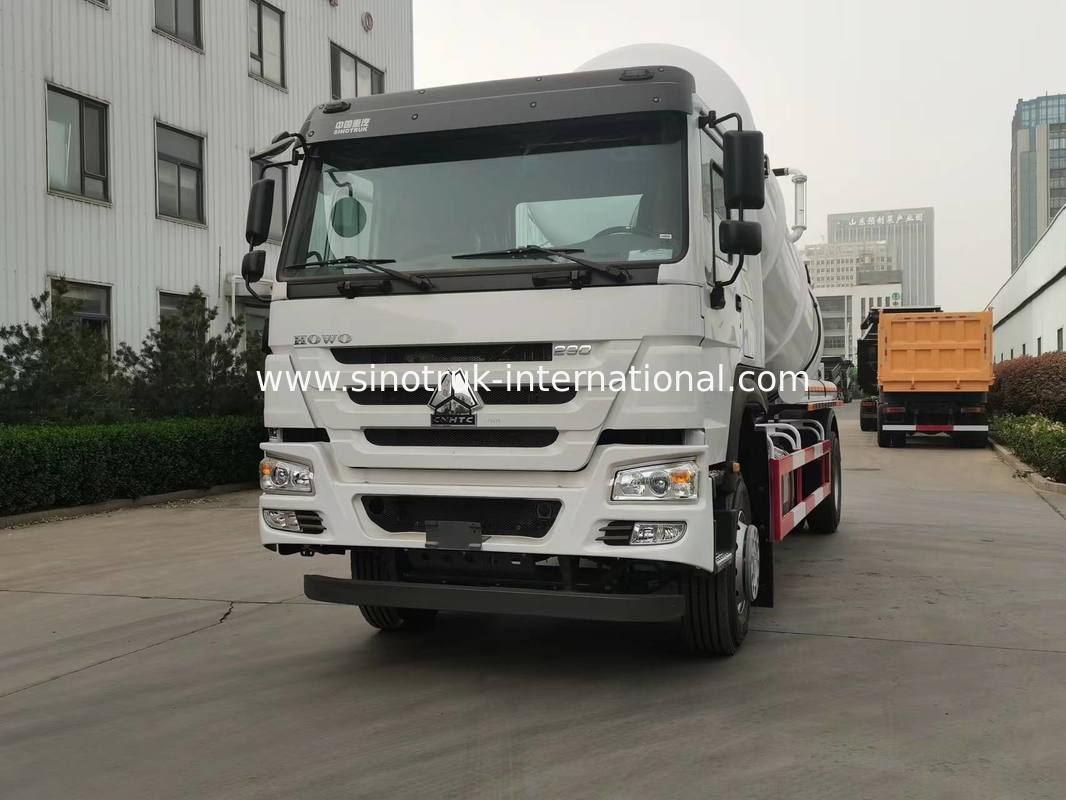

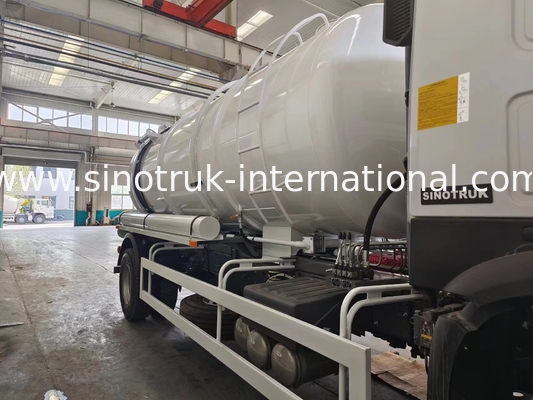

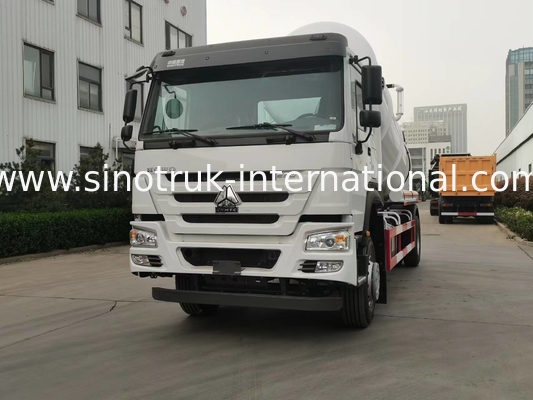

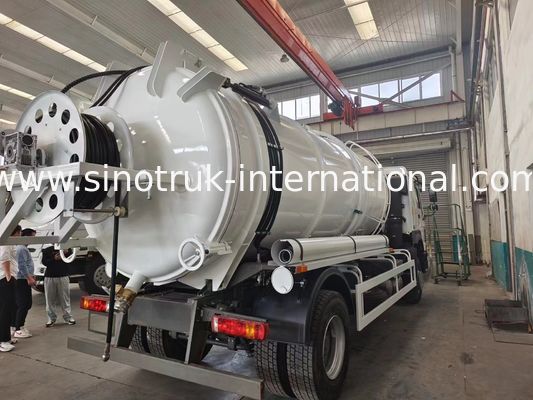

Vacuum Pump Sewage Suction Truck Septic Tank Cleaning 16CBM LHD 290HP

Vacuum Pump Sewage Suction Truck Septic Tank Cleaning 16CBM LHD 290HP

  • Vacuum Pump Sewage Suction Truck Septic Tank Cleaning 16CBM LHD 290HP
  • Vacuum Pump Sewage Suction Truck Septic Tank Cleaning 16CBM LHD 290HP
  • Vacuum Pump Sewage Suction Truck Septic Tank Cleaning 16CBM LHD 290HP
  • Vacuum Pump Sewage Suction Truck Septic Tank Cleaning 16CBM LHD 290HP
Vacuum Pump Sewage Suction Truck Septic Tank Cleaning 16CBM LHD 290HP
Product Details:
Place of Origin: China
Brand Name: SINOTRUK HOWO
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ1257N4341W
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 10-30 working days
Payment Terms: T/T, L/C
Supply Ability: 3,000 units per month
Contact Now
Detailed Product Description
Product Name: Sewage Suction Truck Model: ZZ1257N4341W
Drive Type: LHD 6X4 Emission Standard: Euro 2
Engine: WD615.87, 290HP Tank Body Capacity: 15-18CBM
High Light:

Vacuum Pump Sewage Suction Truck

,

290HP Sewage Suction Truck

,

LHD Sewage Suction Truck

Vacuum Pump Sewage Suction Truck , Septic Tank Cleaning Truck 16CBM LHD 290HP

Sewage Suction Truck SINOTRUK HOWO 15CBM LHD 6X4 Euro2 290HP



Description:

Sewage Suction Truck SINOTRUK HOWO 15CBM LHD 6X4 Euro2 290HP

German advanced manufacturing technology, introduction of underground coexistence

Collection and transportation of sewage pipes, sludge, general waste, and buildings

Operation of waste liquid muddy water, etc., and other functions.


A sewage suction vehicle is a sanitation vehicle for collection and transportation.

Sewage sludge in municipalities, sanitary and large property management

The company has the functions of vacuum suction and pressure discharge to avoid secondary pollution

All high-efficiency, time-saving vacuum pumps and valves are imported.


Various brands for you to choose, such as HOWO, Golden Prince, HOWO A7, Hohan, Engine

Power is 266HP, 290HP, 336HP, 371HP, etc.

Specification:



Sewage Suction Truck SINOTRUK HOWO 15CBM LHD 6X4 Euro2 290HP
Chassis Model ZZ1257N4341W
Drive Type 6×4
Engine WD615.87, 290HP
Cabin HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat)
Transmission HW15710(10 forwards & 2 reverses)
Front Axle HF9 (1X9Tons)
Driving Axle HC16(2X16Tons)
Clutch hydraulically operating with air assistance
Rim/ Tire 11.00R20
Wheel base 4300+1350(mm)
Capacity of tank body 15-18CBM
Diameter of suction tube Φ100mm
Suction depth ≥ 8 m
Vacuum pump

type: Vane pump

Pumping speed: 318 m3/h

Rated speed: 1300rpm

Overall dimension 9400×2500×3850mm
The curb weight 12050(Kg)
Gross weight 25000 kg
Max. speed 95km/h
Color White, red, green, golden and so on.


Applications:



Can be widely used in the collection of urban rain wells, inspection wells and all kinds of ditches within

the sludge, sewage or oil chemical sewage tank sediment suction, shipment and discharge.



Competitive Advantage:



1) Including chassis, power take-off, drive shaft, vacuum suction pump and pressure

tanks, hydraulic components, piping systems, vacuum pressure gauges, waste composition windows,

Vehicle configuration of cleaning equipment and high-power, high-quality vacuum suction pump

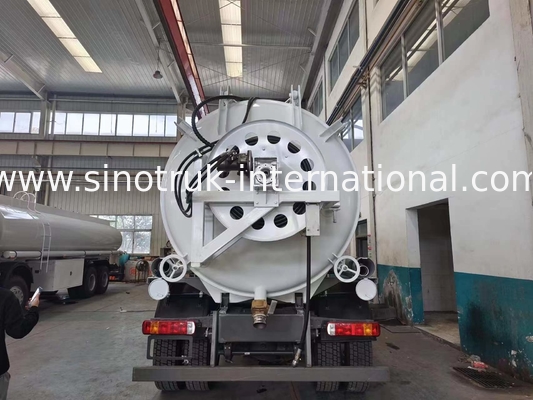

Hydraulic system, tank head when pushed, rear tank door can be opened and emptied

with two cylinders.
2) We produce trucks with the ability to hydraulically open the rear door.

System, 60 degree opening angle. Steering wheel lock, also automatic as an option

hydraulic lock. Special seal, tightness is highly reliable. the layout of

Vacuum pumps are more flexible for vacuum pipeline optimization

For installation as well as hydraulic drives, the automatic control system brings

comfortable.
3) Optimized hydraulic control system can avoid wrong operation.

Operational safety and efficiency.
4) Excellent cabin appearance, safe and reliable
5) Low fuel consumption
6) With all kinds of truck models that can meet your needs
7) Main parts adopt the world's top technology products
8) Based on strong technical support and top technology, the truck is highly

quality and reliability
9) Competitive price, cost-effective
10) Fast and efficient spare parts supply brings you more convenience
11) Fast delivery time, we can arrange the production exactly according to your requirements.

quickly
12) Professional import/export formalities, customs formalities more expensive

efficiency
