Place of Origin: | China |
Brand Name: | SINOTRUK |
Certification: | ISO/3C/BV/IFA/SGS |
Model Number: | ZZ1257N3847B1 |
Minimum Order Quantity: | 1Unit |
---|---|
Price: | Negotiation |
Packaging Details: | Waxing in Bulk ship, Roro ship, Container |
Delivery Time: | 10-30 working days |
Supply Ability: | 3,000 units per month |
Product Name: | Concrete Mixer Truck | Model: | ZZ1257N3847B1 |
---|---|---|---|
Drive Type: | RHD 6X4 | Engine: | WD615.69 336HP |
Tank Body Capacity: | 10CBM | Cab: | HW76 |
High Light: | 10CBM SINOTRUK HOWO Concrete Mixer Truck,20CBM SINOTRUK HOWO Concrete Mixer Truck,340Hp Concrete Mixer Truck |

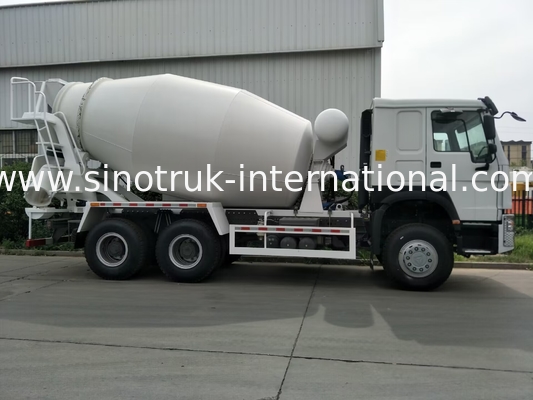

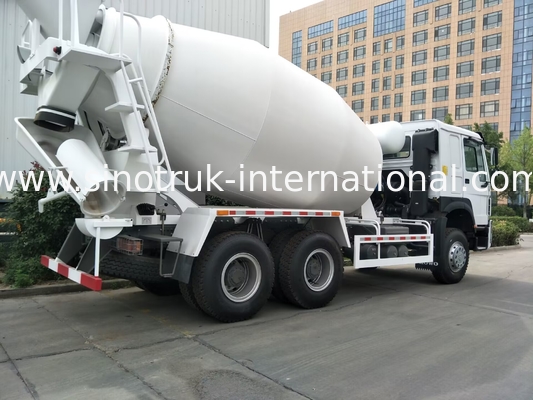

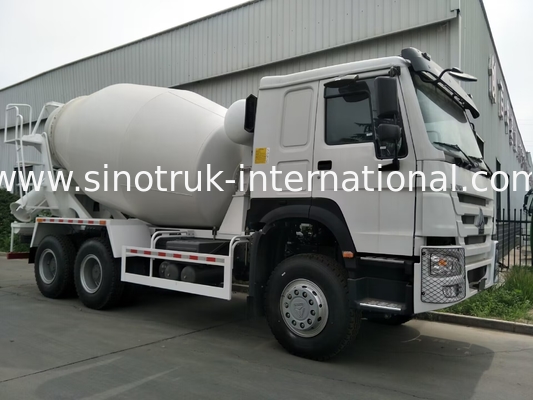

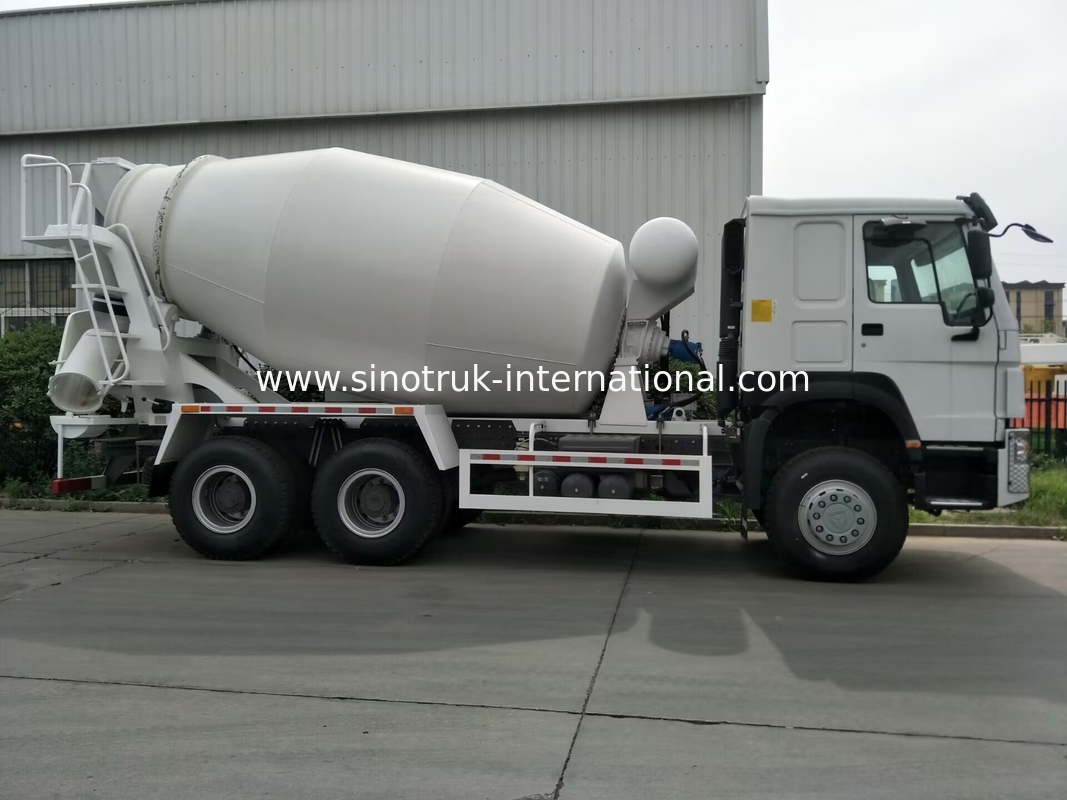

Sinotruk Howo Concrete Mixer Truck 10-20CBM 6 x 4 Euro 2 336Hp Construction
Description:
HOWO mixer, suitable for urban construction, highway, railway and other departments. Stirring truck is one of the indispensable important equipment in mechanized construction. The body material is made of special wear-resistant alloy material. The concrete mixing transport uniformity is good. Loading and discharging
Fast speed, low slag discharge rate, reliable hydraulic system, easy to operate, beautiful appearance.
Specification:
Sinotruk Howo Concrete Mixer Truck 10-20CBM 6 x 4 Euro 2 340Hp Construction | ||||
Model | ZZ1257N3847B1 | |||
Drive Type | 6×4 | |||
Engine |
|
|||
Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat) | |||
Transmission | HW19710(10 forwards & 2 reverses) | |||
Front Axle | 1×VGD95 ( 9.5 Tons) | |||
Driving Axle | 2×HC16, 2×16Tons | |||
Steering | BOSCH or China brand hydraulic steering with power assistance. | |||
Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|||
Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire | |||
Wheel base | 3800+1350(mm) | |||
Overall dimension | 8075×2600×3000(mm) | |||
Tank body Capacity | 10-20CBM | |||
The curb weight | 12650(Kg) | |||
Gross weight | 31000 kg | |||
Max. speed | 102km/h | |||
Color | White, red, green, golden and so on. |
Applications:
t’s suitable for agitating and transiting concrete, for construction site, road repairing and some other
infrastructure construction business.
Competitive Advantage:
1) Leading product technology, complete functions, excellent performance, reliable quality, easy to operate.
2) Valve body structure optimization, special mold production, beautiful appearance, uniform concrete mixing, uniform discharge, low residual rate.
3) Imported hydraulic pump, hydraulic motor, reducer.
4) High strength steel plate, long service life.
5) Overall structure optimization, low center of gravity, high operating efficiency.
6) Wide product range, tank capacity 6 ~ 18 cubic meters.
7) Choose a variety of auxiliary devices.
8) All concrete mixer chassis matching.
9) Relying on strong technical support and first-class technology, make the truck with high quality and more reliable
10) The price is competitive and cost-effective
11) Fast and efficient spare parts supply to bring you more convenience
12) Delivery time is fast, we can precisely arrange production according to your needs quickly
13) Professional import and export transaction process, making customs clearance more efficient
