Home ProductsTractor Truck

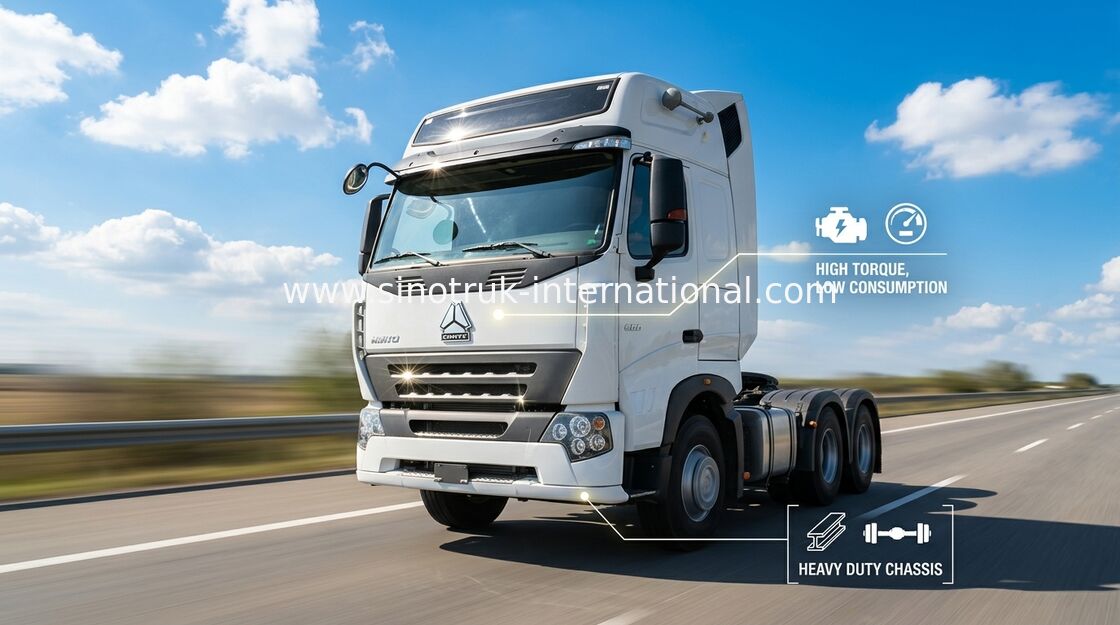

Head Truck Trailer LHD 6X4 Euro2 336HP with two berth ZZ4257N3247N1B

Head Truck Trailer LHD 6X4 Euro2 336HP with two berth ZZ4257N3247N1B

  • Head Truck Trailer LHD 6X4 Euro2 336HP with two berth ZZ4257N3247N1B
  • Head Truck Trailer LHD 6X4 Euro2 336HP with two berth ZZ4257N3247N1B
  • Head Truck Trailer LHD 6X4 Euro2 336HP with two berth ZZ4257N3247N1B
  • Head Truck Trailer LHD 6X4 Euro2 336HP with two berth ZZ4257N3247N1B
Head Truck Trailer LHD 6X4 Euro2 336HP with two berth ZZ4257N3247N1B
Product Details:
Place of Origin: China
Brand Name: SINOTRUK HOWO A7
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ4257N3247N1B
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD38500-USD39000/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 20 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4,000units per month
Contact Now
Detailed Product Description
Product Name: Tractor Truck Model: ZZ4257N3247N1B
Drive Type: LHD 6X4 Emission Standard: Euro 2
Engine: WD615.69, 336HP Fifth Wheel: #50, #90
Traction Capacity: 60-70tons
High Light:

howo tractor truck

,

tractor dump truck

SINOTRUK HOWO A7 Tractor Truck LHD 6X4 Euro2 336HP with two berth ZZ4257N3247N1B



Description:



SINOTRUK HOWO A7 Tractor Truck LHD 6X4 Euro2 336HP with two berth ZZ4257N3247N1B

This model is the proven product of SINITRUK, which features reliable structure, great loading capacity, excellent power from 266-420HP, reliable performance. This model can meet the requirements of different road conditions. This model can satisfy your need of long distance highway transportation.

Highway transport is divided into two version, to match the different condition of transportation needs:
The first version of the highway transport is equipped with aluminum shell transmission MCY13 (Q) single reduction drive axle and other lightweight configuration, mainly used for standard load level (It means that the total weight of tractor train within 55 tons, the total weight of bike within 41 tons); When the first version of the tractor adopts the plate spring suspension, disc brake MCY13 (Q) single stage drive axle can be opted.


The fifth version of the highway transport is equipped with iron reinforced frame, Iron shell transmission and two-stage reduction drive axle which can loaded16 ton, single-stage reduction drive axle, which can loaded 16 ton is optional, mainly used for comprehensive road conditions and overloading of the transport conditions.



Specification:



SINOTRUK HOWO A7 Tractor Truck LHD 6X4 Euro2 336HP with two berth ZZ4257N3247N1B

Model ZZ4257N3247N1B
Drive Type 6×4
Engine

WD615.69 , 336HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

Displacement : 9.726L

Cabin A7-G(with two sleeper, air-conditioner and new-style seat)
Transmission HW19712(12 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8098 hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire

12R22.5 tubeless tyre

11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3200+1350(mm)
Overall dimension

6985×2496×3560(mm)

Fifth Wheel

#50, #90

The curb weight 8800(Kg)
Gross weight 25000 kg
Max. speed 102km/h
Color White, red, green, golden and so on.




Applications:



It’s suitable for towing all kinds semi trailer which is used in Logistics business, construction site and

Mining area .



Competitive Advantage:



1) it has higher safety and  running efficiency.

2) excellent appearance of cabin, safety, reliable

3) low fuel consumption

4) strong enough engine

5) with all kinds of truck model, which can fulfill your requirement

6) the key parts adopt the world's top technology products

7) based on strong technical support and top level technology make the trucks with high quality and

  more reliable

8) competitive price, cost-effective

9) quick and efficient spare parts supply bring you more convenient
