SINOTRUK INTERNATIONAL CO., LTD.
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | SINOTRUK |
| Certification: | ISO/3C/BV/IFA/SGS |
| Model Number: | ZZ1317N3667B1 |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | negotiation |
| Packaging Details: | Nude or Waxing in Roro or bulk ship |
| Delivery Time: | 25 working days after received your advance payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2,000units per month |
| Product Name: | Concrete Mixer Truck | Contact Now Detailed Product Description Product Name: Concrete Mixer Truck Model: ZZ1317N3261W Driv: | LHD 8X4 |
|---|---|---|---|
| Displacement: | 9.726L | Cabin: | HW76 Lengthened Cab |
| Transmission: | HW19710 | Engine: | WD615.47 , 371HP |
| High Light: | SINOTRUK HOWO Concrete Truck,371HP Concrete Truck,LHD 8X4 Concrete Truck |
||
SINOTRUK HOWO 371HP CONCRETE MIXER TRUCK
Description:
SINOTRUK HOWO 371HP CONCRETE MIXER TRUCK ZZ1317N3667B1
The concrete mixer series products are produced with German patented technology.
The material requirements, production process and acceptance standards of the products all adopt the technology provided by German standards.

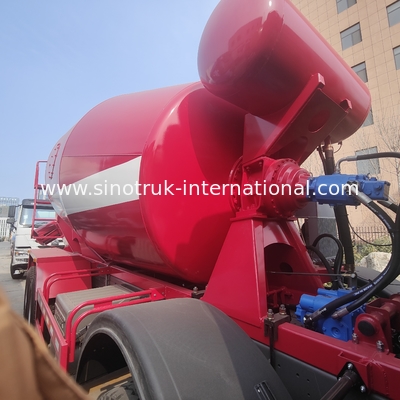

This product adopts imported reducer, motor and hydraulic pump. The power output is transmitted from the secondary chassis to the hydraulic pump through the shaft power. The hydraulic energy generated by the hydraulic pump is transmitted to the hydraulic motor through the oil pipe. The hydraulic motor converts the hydraulic energy into kinetic energy and then reduces and increases the twist to the mixing tank through the reducer. This is achieved by adjusting the angle of the servo controller (double acting variable) of the hydraulic pump
By controlling the rotation and rotation speed of the mixing drum, the concrete feeding, mixing and discharging operations are realized.
Specification:
| Sinotruk Howo 14CBM 371HP 8X4 LHD ZZ1317N3261W | ||||
| Model | ZZ1317N3667B1 | |||
| Drive Type | 8×4 | |||
| Engine |
|
|||
| Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat) | |||
| Transmission | HW19710(10 forwards & 2 reverses) | |||
| Front Axle | 1×HF9 ( 9 Tons) | |||
| Driving Axle | HC16, 16Tons | |||
| Steering | ZF8118 hydraulic steering with power assistance. | |||
| Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|||
| Rim/ Tire | 315/80R22.5 | |||
| Wheel base | 1800+3200+1350(mm) | |||
| Overall dimension | 10207×2496×3115(mm) | |||
| Tank body Capacity | 14CBM | |||
| The curb weight | 12650(Kg) | |||
| Gross weight | 25000 | |||
| Max. speed | 102km/h | |||
| Color | White, red, green, golden and so on. | |||
Applications:
It is applicable to infrastructure construction businesses such as mixing and transition concrete, construction site, road repair, etc
Competitive Advantage:
1) The product has advanced technology, complete functions, excellent performance, reliable quality and convenient operation
2) The body structure is optimized, the special mold is made, the appearance is beautiful, the concrete is mixed, the discharge is uniform, and the residual rate is low.
3) Imported hydraulic pump, hydraulic motor and reducer.
4) High strength steel plate is adopted, with long service life.
5) The overall structure is optimized, the center of gravity is low, and the operation efficiency is high.
6) The product range is wide, and the tank capacity is 6-18 cubic meters.
7) Select a variety of auxiliary devices.
8) Match all concrete mixer chassis.
9) Based on strong technical support and top technology, the truck is of high quality and more reliable
Contact Person: Mr. Aaron White
Tel: +86-13210598479
Fax: 86-531-85865823
