Place of Origin: | China |
Brand Name: | HOWO |
Certification: | ISO/3C/BV/IFA/SGS |
Model Number: | ZZ1317V326JB1R |
Minimum Order Quantity: | 1 unite |
---|---|
Price: | negotiation |
Packaging Details: | Nude or Waxing in Roro or bulk ship |
Delivery Time: | 25-30 days after received your advance payment |
Payment Terms: | T/T, L/C |
Supply Ability: | 3000 per month |
Product Name: | HOWO Concrete Mixer Truck | Color: | White |
---|---|---|---|
Model: | ZZ1317V326JB1R | Engine Output: | 380HP |
Emission Standard: | Euro 2 | Drive Type: | RHD 6×4 |
High Light: | RHD 6×4 Concrete Mixer Truck,White Concrete Mixer Truck,10wheels Concrete Mixer Truck |

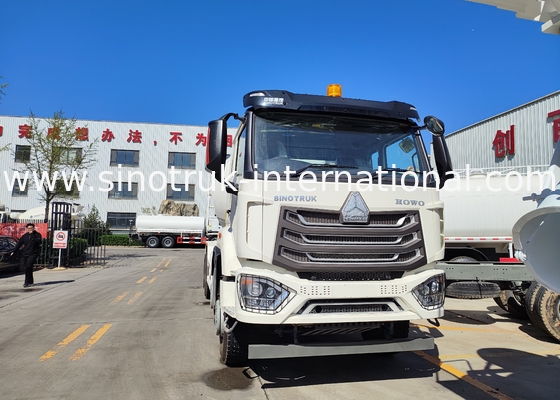

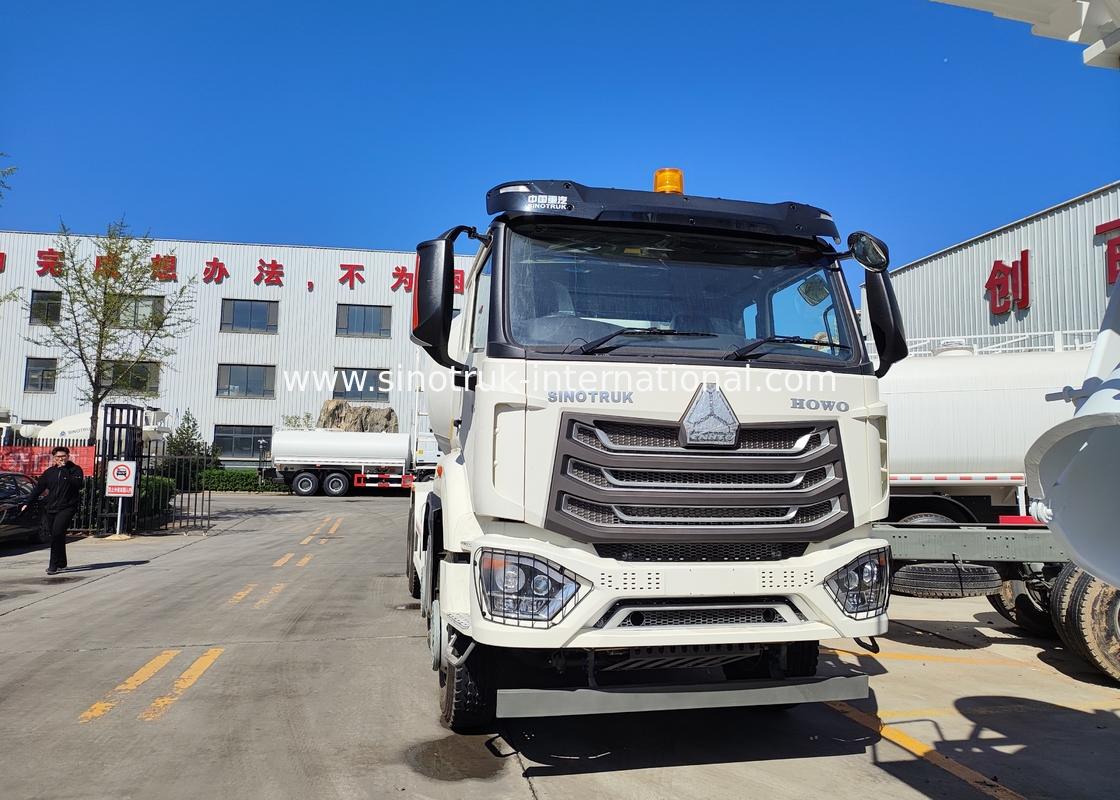

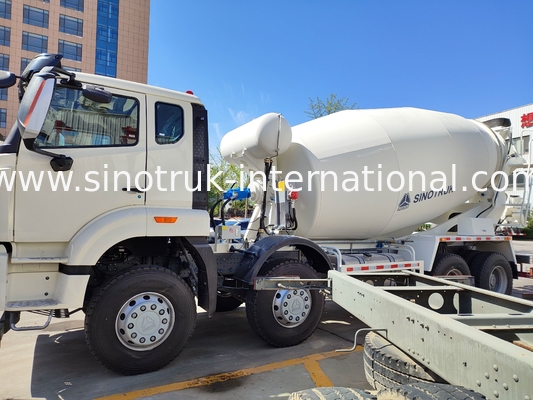

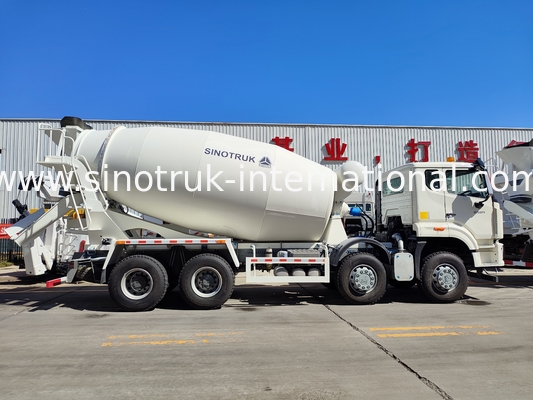

RHD 6×4 10wheels White Concrete Mixer Truck
SINOTRUK HOWO RHD 6x4 Concrete Mixer Truck 380HP
Description:
Sinotruk HOWO E7 10CBM 371HP 6x4 RHD ZZ1257V324JB1R Concrete Mixer Truck
HOWO E7 concrete mixer truck adopts HOWO E7 chassis, equipped with A7-W single-sleeper cab, exclusively for export, equipped with Euro 2 common rail or electronic ramp, self-developed Euro IV heavy truck engine, standard with ZF steering imported from Germany, HOWO 10 and 12 gearboxes, HF 9-ton front axle, HC16 or AC16 rear axle, excellent carrying capacity to meet customer needs.

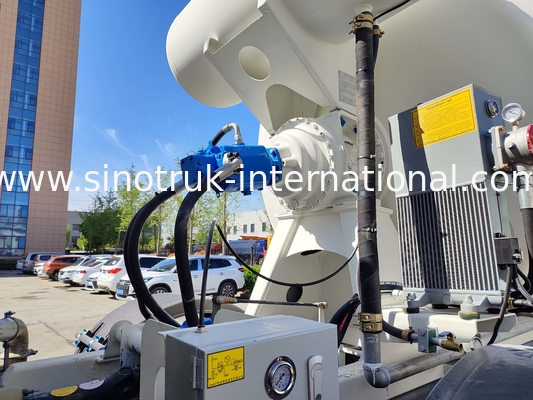

The mixing tank is composed of high wear-resistant steel plate and cage mold to ensure the concentricity and roundness of the flange, each cylinder part and rolling body, and ensure the normal operation of the vehicle. The main body of the oil tank adopts double helical blades with moderate density and moderate cone shape. There is a symmetrical stirring plate on the front door ball, and guide blades and blades are installed in the groove to make the material utilization faster.
Specification:
SINOTRUK HOWO 6x4 RHD Concrete Mixer Truck 10CBM | ||||
Model | ZZ1257V324JB1R | |||
Drive Type | 6×4 | |||
Engine |
|
|||
Cabin | H77L lengthened cab(with one sleeper, air-conditioner and new-style seat) | |||
Transmission | HW19710(10 forwards & 2 reverses) | |||
Front Axle | 1×HF9 ( 9 Tons) | |||
Driving Axle | HC16, 16Tons | |||
Steering | ZF8098 hydraulic steering with power assistance. | |||
Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|||
Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire | |||
Wheel base | 3825+1350(mm) | |||
Overall dimension | 8604×2496×3950(mm) | |||
Tank body Capacity | 10CBM | |||
The curb weight | 12800(Kg) | |||
Gross weight | 25000 kg | |||
Max. speed | 102km/h | |||
Color | White, red, green, golden and so on. |
Applications:
t’s suitable for agitating and transiting concrete, for construction site, road repairing and some other infrastructure construction business.
Competitive Advantage:
1) The leading product technology, complete function, excellent performance, reliable quality, easy to operate.
2) It has certain stability advantage in the process of passing under complex road conditions, and reduces the safety advantage in the process of driving under many complex road conditions.
3) Imported hydraulic pump, hydraulic motor and speed reducer.
4) Uses the high strength steel plate, long service life.
5) Optimization of the whole structure, low center of gravity, high running efficiency.
6) Product range is wide, the tank capacity of 6 to 18 cubic meters.
7) The black and white color scheme is very simple and stylish, and the high-top cab with a large sunshade helps to provide excellent visual effects for the driver8) Match all concrete mixer truck chasss.
9) based on strong technical support and top level technology make the trucks with high quality and more reliable
10) The wide-body door design of the vehicle reduces the traffic capacity of the vehicle under muddy road conditions and reduces the influence of stain residue on indoor cleanliness.
11) quick and efficient spare parts supply bring you more convenient
12) fast delivery time, we can arange production according to your needs exactly and quickly
