10CBM Concrete Mixer Truck For Construction Site / Concrete Mixer Drum Trailer

10CBM Concrete Mixer Truck For Construction Site / Concrete Mixer Drum Trailer

    • 10CBM Concrete Mixer Truck For Construction Site / Concrete Mixer Drum Trailer
    • 10CBM Concrete Mixer Truck For Construction Site / Concrete Mixer Drum Trailer
    • 10CBM Concrete Mixer Truck For Construction Site / Concrete Mixer Drum Trailer
    • 10CBM Concrete Mixer Truck For Construction Site / Concrete Mixer Drum Trailer
  • 10CBM Concrete Mixer Truck For Construction Site / Concrete Mixer Drum Trailer

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK HOWO A7
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: ZZ5257GJBN3847N1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD48500-USD49500/UNIT)negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 25 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2,000units per month
    Detailed Product Description
    Product Name: Concrete Mixer Truck Model: ZZ5257GJBN3847N1
    Drive Type: RHD 6X4 Emission Standard: Euro 2
    Engine: WD615.47, 371HP Tank Body Capacity: 10CBM

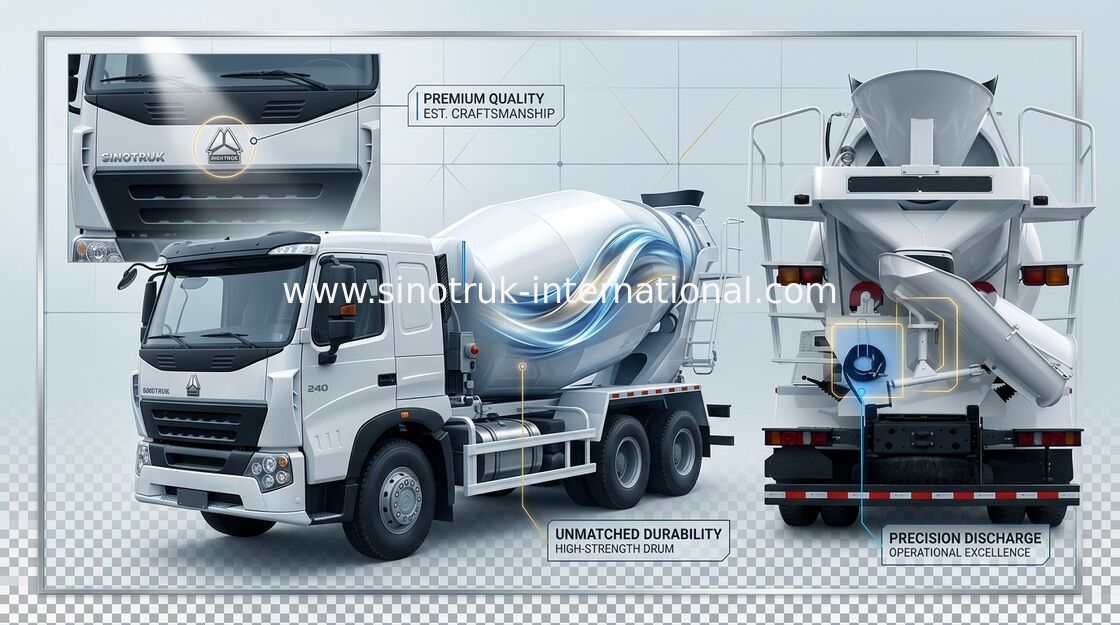

    SINOTRUK HOWO A7 Concrete Mixer Truck 10CBM 371HP 6X4 RHD ZZ5257GJBN3847N1



    Description:



    SINOTRUK HOWO A7 Concrete Mixer Truck 10CBM 371HP 6X4 RHD ZZ5257GJBN3847N1

    The HOWO A7 Concrete Mixer Truck adopts HOWO A7 chassis, equipped with A7-W single berth cabin, exclusively for export is equipped with European 2 or Electronic common

    rail, EU and Euro IV SINOTRUK independent research and development of engine, standard

    German imported ZF steering, HOWO 10 and 12 gear box,HF9 tons of front axle, HC16 or AC16

    rear axle, carrying capacity great to meet the needs of customers.



    The mixing tank body is made of high strength wear-resistant steel plate, cage type mold

    are integrally formed to ensure that the flange, sections of the cylinder body and

    rolling the coaxial degree and circle beat, to ensure smooth operation of the vehicle.

    The tank body adopts the double helix blade, moderate density and taper before the

    gateball symmetric stirring plate and tank mouth at the installation of blades and a

    material guide vanes, resorted to materials to be more even faster.





    Specification:



    SINOTRUK HOWO A7 Concrete Mixer Truck 10CBM 371HP 6X4 RHD ZZ5257GJBN3847N1

    Model ZZ5257GJBN3847N1
    Drive Type 6×4
    Engine

    WD615.47 , 371HP( Euro II)

    6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

    Displacement : 9.726L

    Cabin A7-W lengthened cab(with one sleeper, air-conditioner and new-style seat)
    Transmission HW19710(10 forwards & 2 reverses)
    Front Axle 1×HF9 ( 9 Tons)
    Driving Axle HC16, 16Tons
    Steering ZF8098 hydraulic steering with power assistance.
    Clutch

    Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

    air assistance

    Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
    Wheel base 3825+1350(mm)
    Overall dimension 9335×2496×3950(mm)
    Tank body Capacity

    10CBM

    The curb weight 13770(Kg)
    Gross weight 25000 kg
    Max. speed 102km/h
    Color White, red, green, golden and so on.




    Applications:



    t’s suitable for agitating and transiting concrete, for construction site, road repairing and some other

    infrastructure construction business.



    Competitive Advantage:



    1) The leading product technology, complete function, excellent performance, reliable quality, easy to

       operate.

    2) Optimization of body structure, special mold production, beautiful appearance, concrete mixing,

        discharge uniformity, low rate of residual.

    3) Imported hydraulic pump, hydraulic motor and speed reducer.

    4) Uses the high strength steel plate, long service life.

    5) Optimization of the whole structure, low center of gravity, high running efficiency.

    6) Product range is wide, the tank capacity of 6 to 18 cubic meters.

    7) Choose a variety of auxiliary device.

    8) Match all concrete mixer truck chassis.

    9) based on strong technical support and top level technology make the trucks with high

    quality and more reliable
    10) competive price, cost-effective
    11) quick and efficient spare parts supply bring you more convenient
    12) fast delivery time, we can arange production according to your needs exactly and

         quickly

    13) professional import and export dealing precedure, make customs clearance more high efficiency
