|Place of Origin:||China|
|Brand Name:||SINOTRUK HOWO A7|
|Minimum Order Quantity:||1 Unit|
|Packaging Details:||Nude or Waxing in Roro or bulk ship|
|Delivery Time:||25 working days after received your advance payment|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||2,000units per month|
|Product Name:||Concrete Mixer Truck||Model:||ZZ5257GJBN3847N1|
|Drive Type:||LHD 6X4||Emission Standard:||Euro 2|
|Engine:||WD615.47, 371HP||Tank Body Capacity:||10CBM|

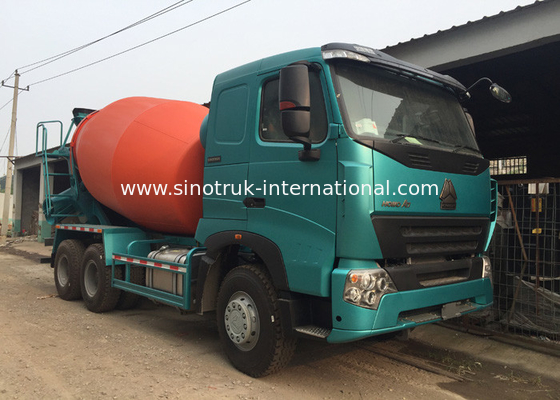

Large Capacity Concrete Mixer Truck For Construction Site SINOTRUK HOWO A7
Concrete Mixer Truck Description:
Concrete Mixer Equipment SINOTRUK HOWO A7 Concrete Mixer Truck 10CBM 371HP 6X4
HOWO A7 Concrete Mixer truck is one kind of famouse brand whch exported to South America and Asia countries, which have more comfortable and advance technology cabin, let them looks more beautiful than HOWO trucks.
The HOWO A7 Concrete Mixer Truck adopts HOWO A7 chassis, equipped with A7-W single berth cabin, exclusively for export is equipped with European 2 or Electronic common
rail, EU and Euro IV SINOTRUK independent research and development of engine, standard
German imported ZF steering, HOWO 10 and 12 gear box,HF9 tons of front axle, HC16 or AC16
rear axle, carrying capacity great to meet the needs of customers.

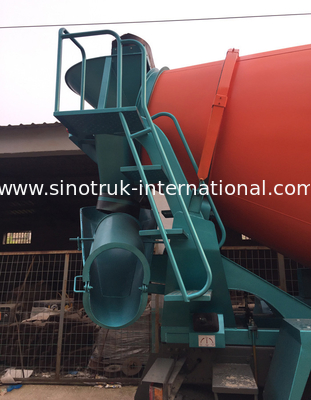

The mixing tank body is made of high strength wear-resistant steel plate, cage type mold
are integrally formed to ensure that the flange, sections of the cylinder body and
rolling the coaxial degree and circle beat, to ensure smooth operation of the vehicle.
The tank body adopts the double helix blade, moderate density and taper before the
gateball symmetric stirring plate and tank mouth at the installation of blades and a
material guide vanes, resorted to materials to be more even faster.
Concrete Mixer Truck Specification:
SINOTRUK HOWO A7 Concrete Mixer Truck 10CBM 371HP 6X4 LHD ZZ5257GJBN3847N1
|Cabin||A7-W lengthened cab(with one sleeper, air-conditioner and new-style seat)|
|Transmission||HW19710(10 forwards & 2 reverses)|
|Front Axle||1×HF9 ( 9 Tons)|
|Driving Axle||HC16, 16Tons|
|Steering||ZF8098 hydraulic steering with power assistance.|
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with
|Rim/ Tire||11.00R20,12.00R20,12.00R24 Radial tire|
|Tank body Capacity||
|The curb weight||12800(Kg)|
|Gross weight||25000 kg|
|Color||White, red, green, golden and so on.|
Concrete Mixer Truck Applications:
Concrete Mixer Truck is suitable for agitating and transiting concrete, for construction site, road repairing and some other
infrastructure construction business.
1) Optimization of body structure, special mold production, beautiful appearance, concrete mixing,
discharge uniformity, low rate of residual.
2) Optimization of the whole structure, low center of gravity, high running efficiency.
3) The leading product technology, complete function, excellent performance, reliable quality, easy to
4) Imported hydraulic pump, hydraulic motor and speed reducer.
5) Uses the high strength steel plate, long service life.
6) Product range is wide, the tank capacity of 6 to 18 cubic meters.
7) Choose a variety of auxiliary device.
8) Match all concrete mixer truck chassis.
9) based on strong technical support and top level technology make the trucks with high
quality and more reliable
10) competive price, cost-effective
11) quick and efficient spare parts supply bring you more convenient
12) fast delivery time, we can arange production according to your needs exactly and
13) professional import and export dealing precedure, make customs clearance more high efficiency
