Diesel Engine International Tractor Truck Head For Construction Site

Diesel Engine International Tractor Truck Head For Construction Site

    • Diesel Engine International Tractor Truck Head For Construction Site
    • Diesel Engine International Tractor Truck Head For Construction Site
    • Diesel Engine International Tractor Truck Head For Construction Site
    • Diesel Engine International Tractor Truck Head For Construction Site
  • Diesel Engine International Tractor Truck Head For Construction Site

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK HOWO A7
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: ZZ4187N3517N1B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD36000-USD36600/UNIT)negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 20 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 4,000units per month
    Contact Now
    Detailed Product Description
    Product Name: International Tractor Truck Power: Diesel Engine
    Drive Type: LHD 4X2 Emission Standard: Euro 2
    Application: Construction Site Fifth Wheel: #50, #90
    Traction Capacity: 30-40tons

    Diesel Engine International Tractor Truck Head For Construction Site



    International Tractor Truck Competitive Advantage:



    1. low fuel consumption
    2. strong enough engine
    3. with all kinds of truck model, which can fulfill your requirement
    4. the key parts adopt the world's top technology products
    5. based on strong technical support and top level technology make the trucks with high quality and more reliable
    6. competitive price, cost-effective
    7. quick and efficient spare parts supply bring you more convenient



    International Tractor Truck Specification:



    Diesel Engine International Tractor Truck Head For Construction Site

    Model ZZ4187N3517N1B
    Drive Type 4×2
    Cabin A7-W(with single sleeper, air-conditioner and new-style seat)
    Transmission HW19712(12 forwards & 2 reverses)
    Front Axle 1×HF9 ( 9 Tons)
    Driving Axle HC16, 16Tons
    Steering ZF8098 hydraulic steering with power assistance.
    Clutch Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance
    Rim/ Tire

    12R22.5 tubeless tyre

    11.00R20,12.00R20,12.00R24 Radial tire
    Wheel base 3500(mm)
    Overall dimension

    6160×2496×3230(mm)

    Fifth Wheel

    #50, #90

    The curb weight 6800(Kg)
    Gross weight 18000 kg
    Max. speed 102km/h




    International Tractor Truck Applications:



    Logistics business, construction site and  Mining area .

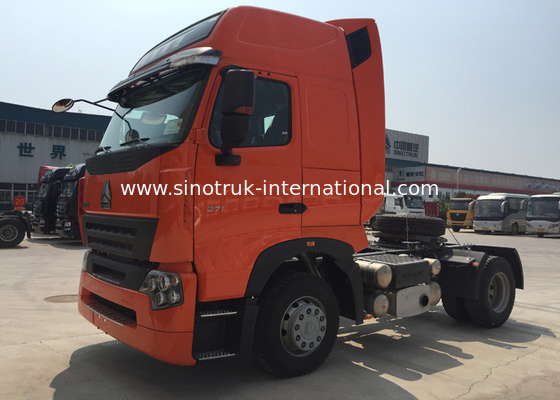

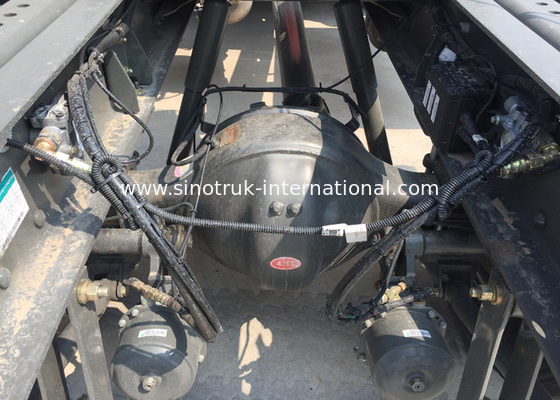

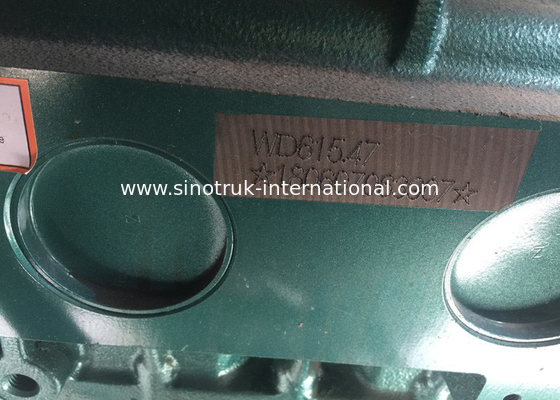

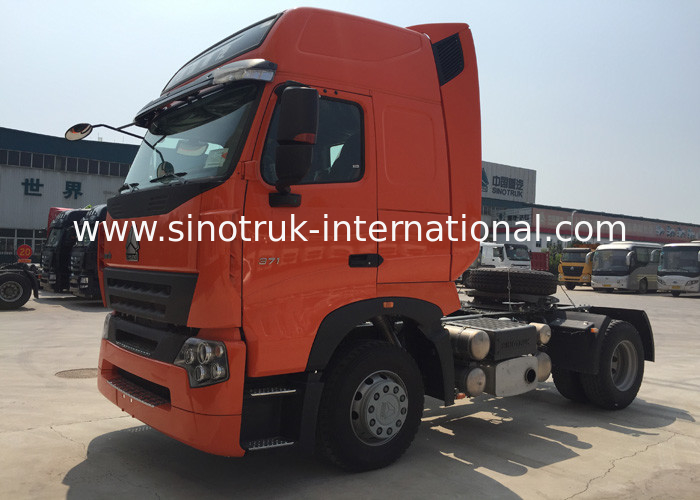

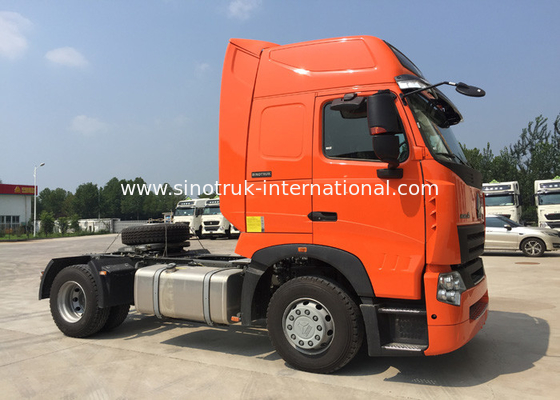

    International Tractor Truck Details



    Diesel Engine International Tractor Truck Head For Construction SiteDiesel Engine International Tractor Truck Head For Construction Site
