SINOTRUK INTERNATIONAL CO., LTD.
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | SINOTRUK HOWO A7 |
| Certification: | ISO/3C/BV/IFA/SGS |
| Model Number: | ZZ4257N3247N1B |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | USD38500-USD39000/UNIT)negotiation |
| Packaging Details: | Nude or Waxing in Roro or bulk ship |
| Delivery Time: | 20 working days after received your advance payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 4,000units per month |
| Product Name: | Semi Tractor Trailer | Model: | ZZ4257N3247N1B |
|---|---|---|---|
| Drive Wheel: | 6X4 | Emission Standard: | Euro 2 |
| Engine: | WD615.69, 336HP | Fifth Wheel: | #50, #90 |
| Traction Capacity: | 60-70tons | Fuel Type: | Diesel |
| High Light: | tractor trailer truck,howo tractor truck |
||
SINOTRUK HOWO Semi Trailer Tractor Truck Head With Air Conditioner 60-70 Tons
Supply Ability:4,000units per month
Packaging Details Nude or Waxing in Roro or bulk ship
Port China Port
Lead Time :20 working days after received your advance payment
Tractor Truck Description:

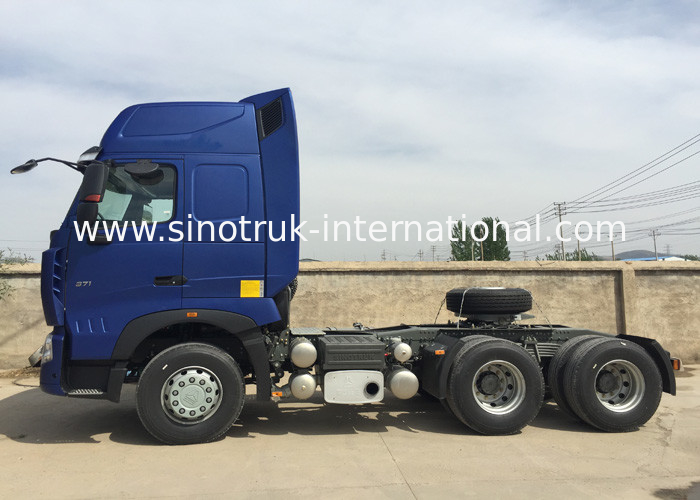

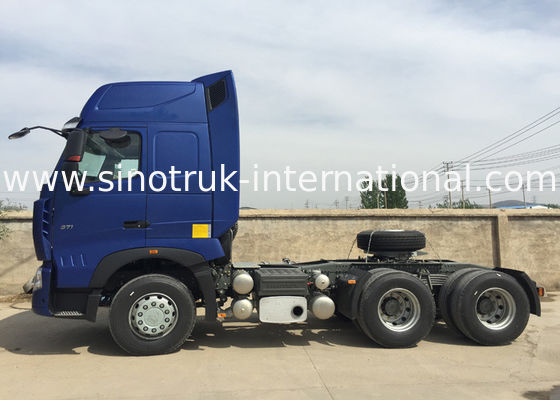

Tractor Truck SINOTRUK HOWO A7 LHD 6X4 Euro2 336HP with two berth ZZ4257N3247N1B
This model is the proven product of SINITRUK, which features reliable structure, great loading capacity, excellent power from 266-420HP, reliable performance. This model can meet the requirements of different road conditions. This model can satisfy your need of long distance highway transportation.
Highway transport is divided into two version, to match the different condition of transportation needs:
The first version of the highway transport is equipped with aluminum shell transmission MCY13 (Q) single reduction drive axle and other lightweight configuration, mainly used for standard load level (It means that the total weight of tractor train within 55 tons, the total weight of bike within 41 tons); When the first version of the tractor adopts the plate spring suspension, disc brake MCY13 (Q) single stage drive axle can be opted.
The fifth version of the highway transport is equipped with iron reinforced frame, Iron shell transmission and two-stage reduction drive axle which can loaded16 ton, single-stage reduction drive axle, which can loaded 16 ton is optional, mainly used for comprehensive road conditions and overloading of the transport conditions.
Tractor Truck Specification:
|
Tractor Truck SINOTRUK HOWO A7 LHD 6X4 Euro2 336HP with two berth ZZ4257N3247N1B |
||||
| Model | ZZ4257N3247N1B | |||
| Drive Type | 6×4 | |||
| Engine |
|
|||

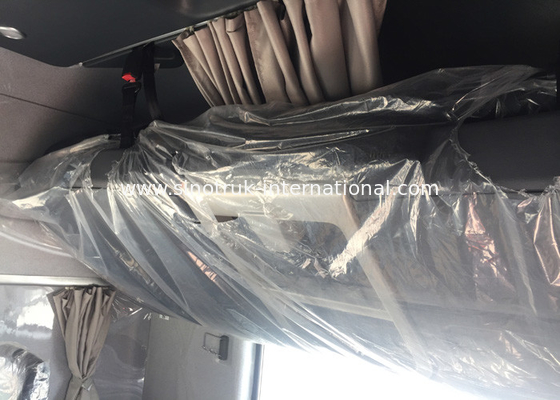

| Cabin | A7-G(with two sleeper, air-conditioner and new-style seat) | |||
| Transmission | HW19712(12 forwards & 2 reverses) | |||
| Front Axle | 1×HF9 ( 9 Tons) | |||
| Driving Axle | HC16, 16Tons | |||
| Steering | ZF8098 hydraulic steering with power assistance. | |||
| Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|||

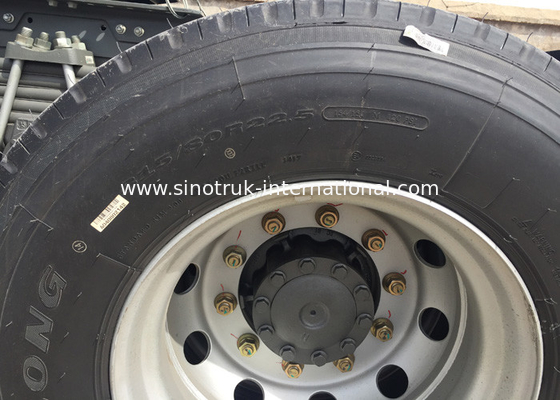

| Rim/ Tire |
12R22.5 tubeless tyre 11.00R20,12.00R20,12.00R24 Radial tire |
|||
| Wheel base | 3200+1350(mm) | |||
| Overall dimension |
6985×2496×3560(mm) |
|||
|

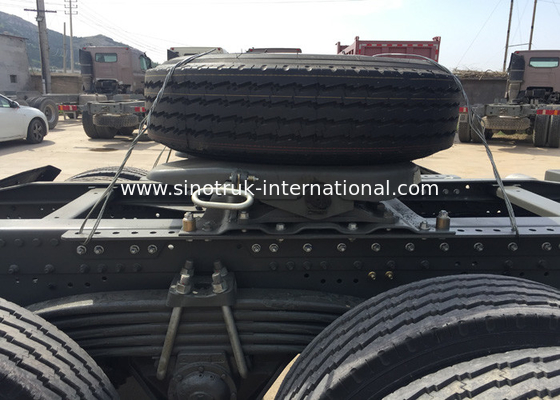

Fifth Wheel |
#50, #90 |
|||
| The curb weight | 8800(Kg) | |||
| Gross weight |
25000 kg
|
|||
| Max. speed | 102km/h | |||
| Color | White, red, green, golden and so on. | |||
Tractor Truck Applications:
It’s suitable for towing all kinds semi trailer which is used in Logistics business, construction site and
Mining area .
FAQ
1.Does your company is a factory or trade company?
We have a factory ourself,we are on this business for few years in China. Our factory is very famous in the Shandong China.
2.Whats the qualify assurance we provided and how do we control quality?
1. Established a procedure to check products at all stages of the manufacturing process-raw materials,process materials,validated or tested materials finished goods ect. Beside,we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2.100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
3. What’s your MOQ?
One unit trailer or truck.
4. How do you transport the semi trailers and trucks?
We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
bulk or container.
5. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
6.How to ensure the satety of the transaction?
pls call me directly! my Tel:13210598479
Contact Person: Mr. Aaron White
Tel: +86-13210598479
Fax: 86-531-85865823
