Place of Origin: | China |
Brand Name: | SINOTRUK |
Certification: | ISO/3C/BV/IFA/SGS |
Model Number: | 3 Axles 50-80Tons |
Minimum Order Quantity: | 1 Unit |
---|---|
Price: | Negotiation |
Packaging Details: | Nude or Waxing in Roro or bulk ship, or by 40GP, 40HQ,40FR and so on |
Delivery Time: | 20 working days after received your advance payment |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 4,000units per month |
Product Name: | Low-bed Semi Trailer Truck | Model: | 3 Axles 50-80Tons |
---|---|---|---|
Fifth Wheel: | #50, #90 | Loading Capacity: | 50-80tons |
Dimension Of Flat: | 13000*3000mm | Axles: | 3X16 Tons |
Material: | Carbon Steel Or Mn Steel | Landing Gear: | 28T JOST |
Size: | 16000×2500×3880mm | OEM No: | Optional |
High Light: | semi flatbed trailers,hydraulic flatbed trailer |

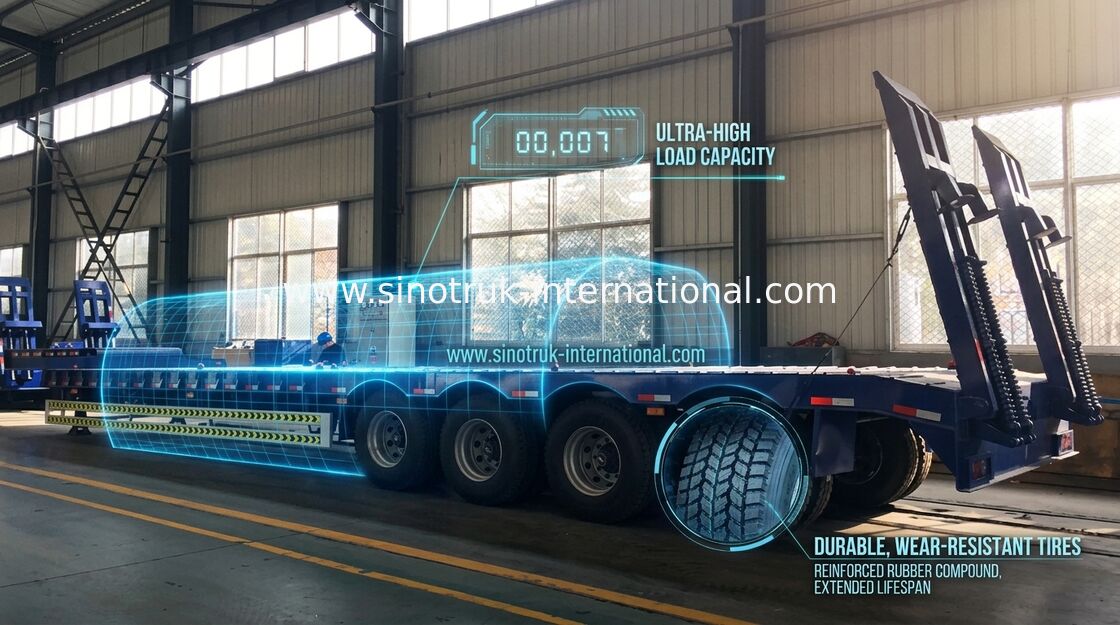

Low-bed Semi Trailer Truck 3 Axles 80Tons 17m for Loading construction machines
Description:
Low-bed Semi Trailer Truck 3 Axles 80Tons 17m for Loading construction machine
Our company's Low bed semi trailer which exported to so many countries, such as Asia countries, Africa countries, South America countries and so on.
Which is popular used in Mining industry, Construction business and so on.
Specification:
Low-bed Semi Trailer Truck 3 Axles 80Tons 17m for Loading construction machines |
|
Model | 3 Axles 60Tons |
Axle |
FUWA brand, 16ton, 2 Sets |
Main beam |
Beam height: 500mm Upper plate: 10mm Double Middle plate: 6 mm Down plate: 12mm |
Dimension of Flat |
13000*3000*6mm |
Material |
Carbon steel or Mn steel |
Gross vehicle weight |
75000kgs |
King pin |
#90 |
Support leg |
JOST Standard 28T |
Suspension |
Normal suspension |
Thickness leaf spring |
10/10/10 |
Tire/Rim |
1200R20, 13pcs, 8.5, 12 pcs |
Brake Chamber |
Standard 6 pcs |
Spare wheel carrier |
2 pcs |
Tool box |
1 pcs |
Electrical System |
Chinese standard 24C lighting system |
Side Maker Lamp |
LED lamp |
Painting |
Polyurethane Paint |
Overall dimension |
16000×2500×3880(mm) |
Color | White, red, green, golden and so on. |
Applications:
Low bed semi trailer for a variety of mechanical equipment, large objects, highway construction equipment, large tanks, power station equipment for various steel transportation.
FAQ
Q1. What Is Your Terms Of Packing?
A: For Trucks Usually Waxing Before Shipment. For Spare Parts Will Be Carton, Wooden Case Or Frame According To Different Goods.
Q2. What Is Your Terms Of Payment?
A: T/T 30% As Deposit, And 70% Before Delivery. We Will Show You The Photos Of The Products And Packages Before You Pay The Balance.
Q3. What Is Your Terms Of Delivery?
A: Exw, Fob, Cfr, Cif, Ddu.
Q4. How About Your Delivery Time?
A: Generally, It Will Take 15 To 30 Working Days After Receiving Your Advance Payment. The Specific Delivery Time Depends On The Items And The Quantity Of Your Order.
Q5. Can You Produce According To The Samples?
A: Yes, We Can Produce By Your Samples Or Technical Drawings. We Can Build The Molds And Fixtures.
Q6. What Is Your Sample Policy?
A: We Can Supply The Sample If We Have Ready Parts In Stock, But The Customers Have To Pay The Sample Cost And The Courier Cost.
Q7. Do You Test All Your Goods Before Delivery?
A: Yes, We Have 100% Test Before Delivery
Q8: How Do You Make Our Business Long-Term And Good Relationship?
A: 1. We Keep Good Quality And Competitive Price To Ensure Our Customers Benefit ;
2. We Respect Every Customer As Our Friend And We Sincerely Do Business And Make Friends With Them, No Matter Where They Come From.
