Place of Origin: | CHINA JINAN |
Brand Name: | SINOTRUK HOWO |
Certification: | ISO/3C/SGS/BV |
Model Number: | ZZ1257N4341W |
Minimum Order Quantity: | 1 |
---|---|
Price: | USD |
Packaging Details: | Nude |
Delivery Time: | 45 Working Day |
Payment Terms: | T/ L/C |
Tank Capacity: | 20000 Litres | Working Type: | Front Spray Rear Sprinkler High Pressure Cannon |
---|---|---|---|
Tank Material: | Q345 Anticorrosive Painting | Driving Type: | LHD&RHD |
Horse Power: | 336HP 371HP | Color: | Optional |
Highlight: | 371HP Water Sprinkler Truck,Municipal Sanitation Water Sprinkler Truck,6x4 Water Tank Truck |

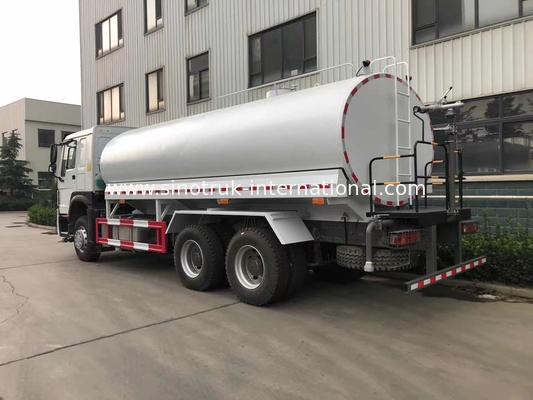

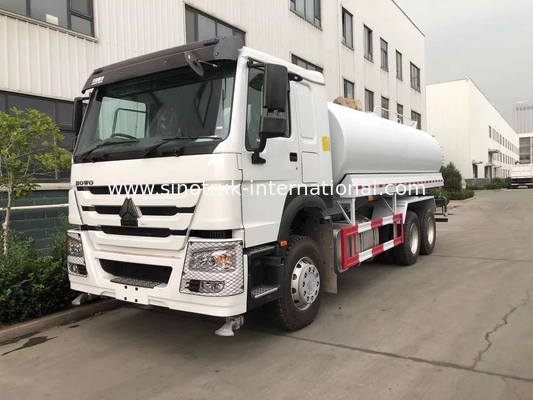

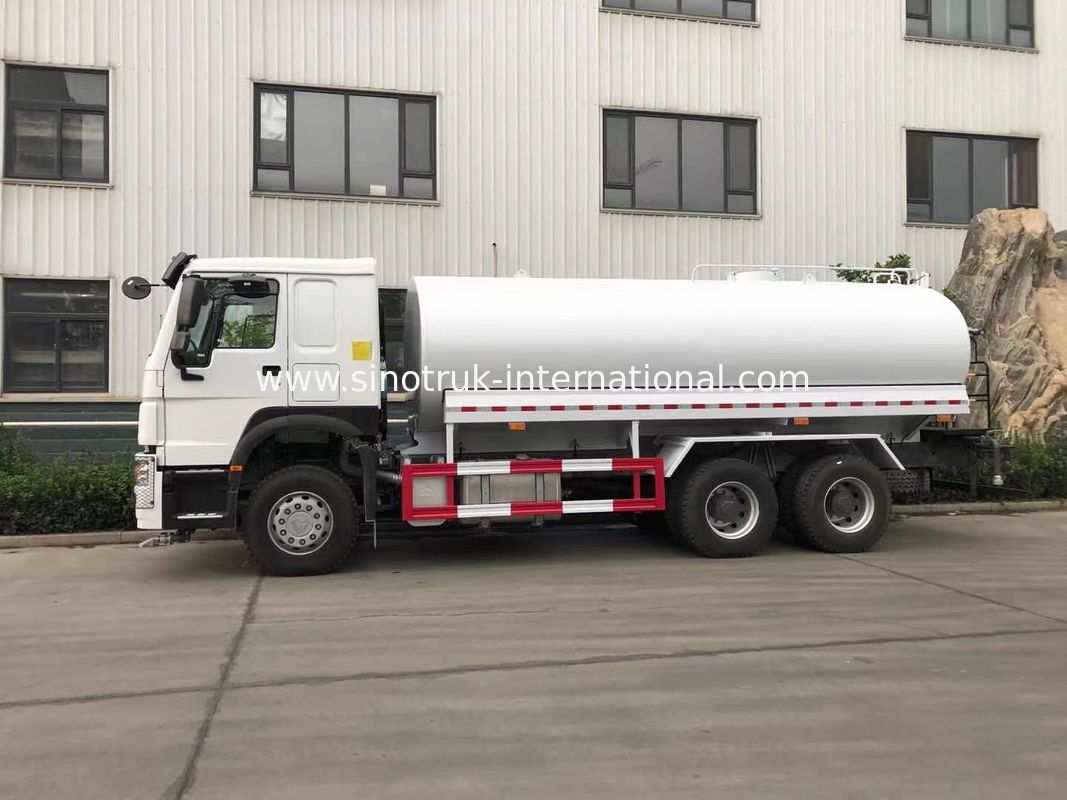

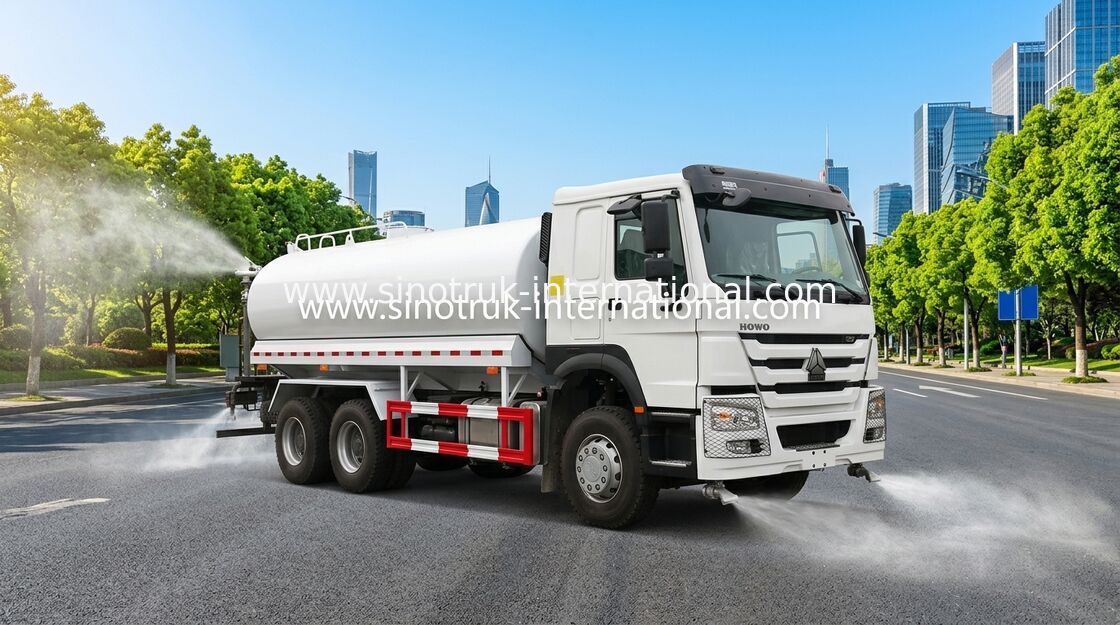

Water Sprinkler Trucuk For Municipal Sanitation Road Clean Mining Aera Dust Suppression
Specification:
Water Sprinkler Trucuk For Municipal Sanitation Road Clean Mining Aera Dust Suppression | |
Chassis Model | ZZ1257N4341W |
Drive Type | 6×4 |
Engine | WD615.69, 336HP |
Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat) |
Transmission | HW19710(10 forwards & 2 reverses) |
Front Axle | HF9(1X9 Tons) |
Driving Axle | HC16(1X16 Tons) |
Clutch | hydraulically operating with air assistance |
Rim/ Tire | 12R22.5/12.00R20, Radial tyre |
r22.5/ | 4325+1350(mm) |
Capacity of tank body | 20CBM |
Spraying width of travel | 14.8m |
Spraying height | ≧30m |
Water sucking depth | ≧4m |
Overall dimension | 9320×2496×3550mm |
The curb weight | 13180(Kg) |
Gross weight | 25000 kg |
Max. speed | 95km/h |
Color | White, red, green, golden and so on. |
Applications:
The Water tank truck is mainly used for construction of mines and other enterprises, road flushing and
dust covering in large-medium-scale cities.
Competitive Advantage:
1) competitive price, cost-effective
2) quick and efficient spare parts supply bring you more convenient
3) fast delivery time, we can arrange production according to your needs exactly and quickly
4) professional import and export dealing procedure, make customs clearance more high efficiency

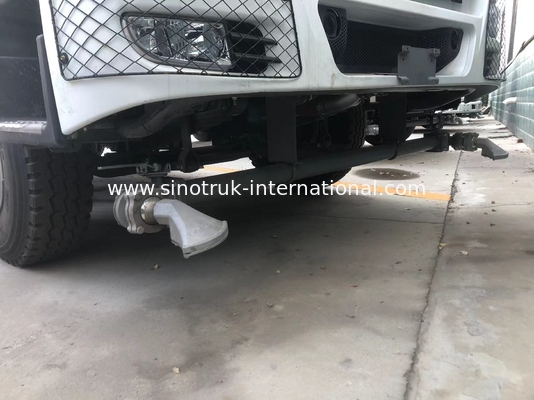

5) High pressure, wide range of spraying good flushing effect
6) Blunt head universal adjustment, meet the arbitrary Angle and the combination of the flush operation
7) Pneumatic control and manual control system can realize two functions
8) External sandblasting processing of tank, internal anti-corrosion treatment, Outside surface adopts advanced polyurethane paint, beautiful appearance

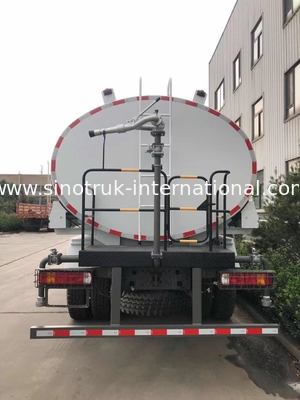

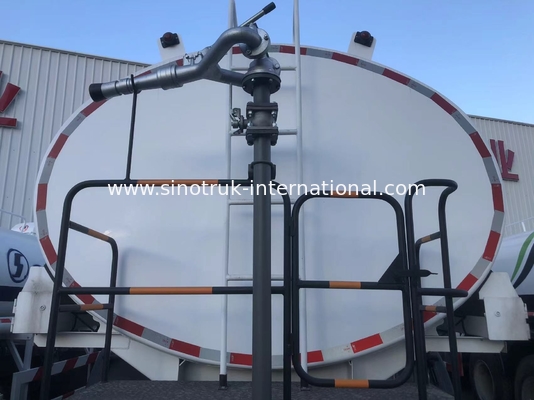

9) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation,
150 degree tilt up and down. Options small flow pump, spraying reel to wake insecticidal garden trees
flowers and plants
10) with all kinds of truck model, which can fulfill your requirement
11) the key parts adopt the world's top technology products
12) based on strong technical support and top level technology make the trucks with high quality and
more reliable
