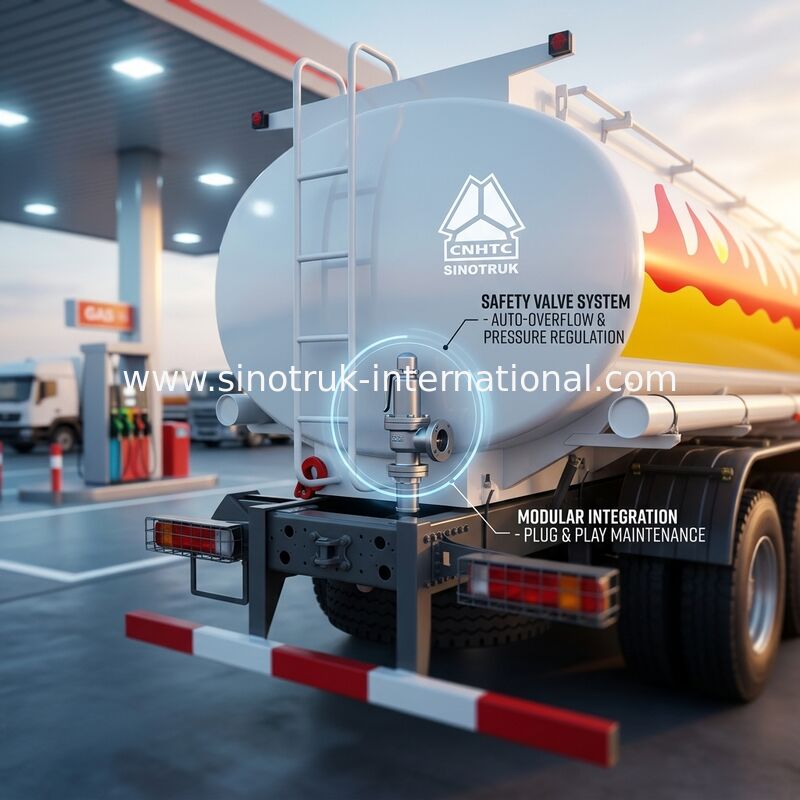

20CBM Sinotruk Howo Semi Truck Fuel Tank 6x4 Lhd Euro2 371hp

20CBM Sinotruk Howo Semi Truck Fuel Tank 6x4 Lhd Euro2 371hp

  • 20CBM Sinotruk Howo Semi Truck Fuel Tank 6x4 Lhd Euro2 371hp
  • 20CBM Sinotruk Howo Semi Truck Fuel Tank 6x4 Lhd Euro2 371hp
  • 20CBM Sinotruk Howo Semi Truck Fuel Tank 6x4 Lhd Euro2 371hp
  • 20CBM Sinotruk Howo Semi Truck Fuel Tank 6x4 Lhd Euro2 371hp
20CBM Sinotruk Howo Semi Truck Fuel Tank 6x4 Lhd Euro2 371hp
Product Details:
Place of Origin: China
Brand Name: SINOTRUK
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ1257S4641W
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: Negotiation
Packaging Details: Waxing in Bulk ship, Roro ship, Container
Delivery Time: 10-30 working days
Supply Ability: 3,000 units per month
Contact Now
Detailed Product Description
Product Name: Oil Tank Truck Model: ZZ1257S4641W
Drive Type: LHD 6X4 Emission Standard: Euro 2
Engine: WD615.87, 290HP Tank Body Capacity: 16-20CBM
High Light:

6x4 semi truck fuel tank

,

lhd semi truck fuel tank

,

371hp fuel tank truck

SINOTRUK HOWO Fuel Tank Truck 6X4 LHD Euro2 371HP



Description:



The fuel tank truck mainly for oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil) transportation and storage. According to a variety of gas or oil, and the use of different environment with the oil, pump oil, a variety of oil equipment, put the function. Tanker special part is composed of a tank, PTO, drive shaft, gear pump, pipeline system components. Pipes system is composed of an oil pump, three through four ball valve, two-way valve. Filter pipe.



Our Oil Tank Truck adopts advanced butt welding technology, the high pressure gas after the forming of the tank test leak detection, the tank has high strength, stable center of gravity, vehicle safety and stable; tank welding after shot blasting pretreatment process, rust, paint adopts advanced baking technology, durable and beautiful appearance.



Specification:



SINOTRUK HOWO Fuel Tank Truck 6X4 LHD Euro2 371HP
Chassis Model ZZ1257S4641W
Drive Type 6×4
Engine WD615.47, 371HP
Cabin HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle HF9(1X9 Tons)
Driving Axle HC16(1X16 Tons)
Clutch hydraulically operating with air assistance
Rim/ Tire 12.00R20, Radial tyre
Wheel base 4600+1350(mm)
Capacity of tank body 16-20CBM
Thickness of tank body 5mm,With 5 cabin
Basic setup Gear oil pump, flow meter, flash hider, fire extinguisher
Overall dimension 9200×2500×3150mm
The curb weight 11940(Kg)
Gross weight 25000 kg
Max. speed 95km/h
Color White, red, green, golden and so on.


Applications:



The Oil tank truck is mainly used for oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil) transportation and storage.



Competitive Advantage:



1) Our Oil tank truck with advanced butt welding technology, after the forming of the tank high pressure gas leak detection, the tank has a high intensity, stable center of gravity,safe and stable vehicle characteristics;

2) Shot blasting pre treatment process after welding tank, rust, paint adopts the advanced baking technology, durable and beautiful appearance. Independent sub positions,

3) Divided into different oil products, chemicals, food, as liquid food truck, chemical liquid truck,insulation liquid vehicles, dangerous goods transport vehicles, the asphalt transportation vehicle

4) External sandblasting processing of tank, internal anti-corrosion treatment, Outside surface adopts advanced polyurethane paint, beautiful appearance

5) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation,150 degree tilt up and down. Options small flow pump, spraying reel to wake insecticidal garden trees flowers and plants

6) with all kinds of truck model, which can fulfill your requirement
7) the key parts adopt the world's top technology products
8) based on strong technical support and top level technology make the trucks with high quality and more reliable
9) competitive price, cost-effective

20CBM Sinotruk Howo Semi Truck Fuel Tank 6x4 Lhd Euro2 371hp 020CBM Sinotruk Howo Semi Truck Fuel Tank 6x4 Lhd Euro2 371hp 120CBM Sinotruk Howo Semi Truck Fuel Tank 6x4 Lhd Euro2 371hp 2
