Place of Origin: | China |
Brand Name: | SINOTRUK |
Certification: | ISO/3C/BV/IFA/SGS |
Model Number: | ZZ1267N4617B1 |
Minimum Order Quantity: | 1Unit |
---|---|
Price: | Negotiation |
Packaging Details: | Waxing in Bulk ship, Roro ship, Container |
Delivery Time: | 10-30 working days |
Supply Ability: | 3,000 units per month |
Product Name: | Oil Tank Truck | Model: | ZZ1267N4617B1 |
---|---|---|---|
Drive Type: | LHD 4x2 | Emission Standard: | Euro 2 |
Engine: | WD615.87, 290HP | Tank Body Capacity: | 16-20CBM |
High Light: | Semi Truck Fuel Tank 4x2,SINOTRUK Howo Semi Truck Fuel Tank,Semi Truck Fuel Tank 290hp |

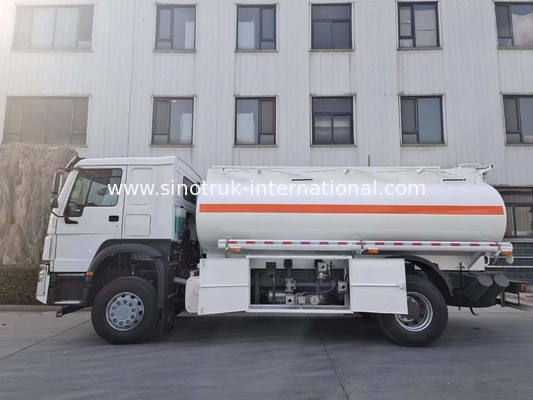

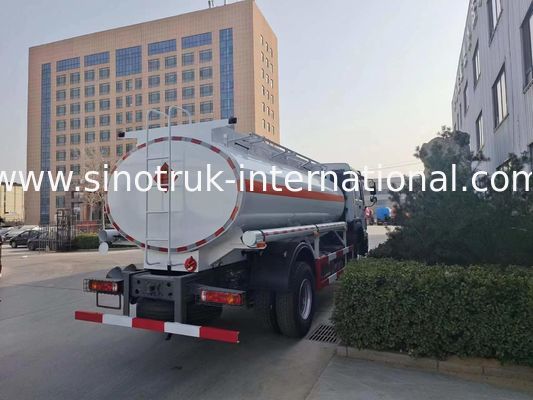

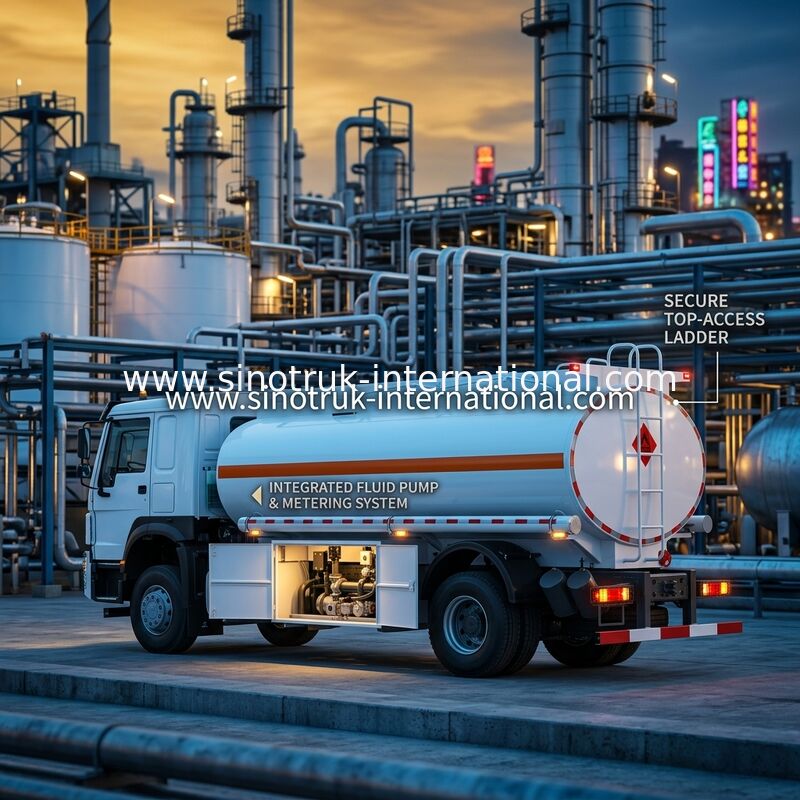

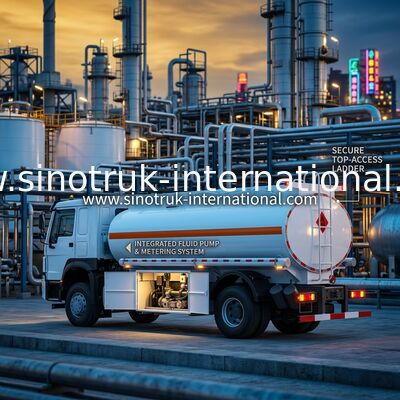

SINOTRUK Howo Semi Truck Fuel Tank 4x2 Lhd Euro2 290hp
SINOTRUK HOWO Fuel Tank Truck 6X4 LHD Euro2 371HP
Description:
Howo 8x4 Tank Fuel Truck has a variety of fueling or oil transport functions depending on the application and environment.
They have the functions of oil absorption, pump oil, and various oil dispensing and distribution.
The special part of the fuel tank truck is composed of a tank body, a power take-off, a drive shaft, a gear oil pump, a pipe
network system and the like. The pipe network system consists of an oil pump, a three-way four-position ball valve, a
two-way ball valve, a strainer, and a pipe.
Specification:
SINOTRUK HOWO Fuel Tank Truck 6X4 LHD Euro2 290HP |
|
Chassis Model | ZZ1267N4617B1 |
Drive Type | 4×4 |
Engine | WD615.87, 290HP |
Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat) |
Transmission | HW19710(10 forwards & 2 reverses) |
Front Axle | HF9(1X9 Tons) |
Driving Axle | HC16(1X16 Tons) |
Clutch | hydraulically operating with air assistance |
Rim/ Tire | 12.00R20, Radial tyre |
Wheel base | 4600+1350(mm) |
Capacity of tank body | 16-20CBM |
Thickness of tank body | 5mm,With 5 cabin |
Basic setup | Gear oil pump, flow meter, flash hider, fire extinguisher |
Overall dimension | 9200×2500×3150mm |
The curb weight | 11940(Kg) |
Gross weight | 25000 kg |
Max. speed | 95km/h |
Color | White, red, green, golden and so on. |
Applications:
The Oil tank truck is mainly used for oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil) transportation and storage.
Competitive Advantage:
1. Through the collision test, driving safety guarantee: the steel frame structure, the four-level safety protection system of frame safety and protection safety, after passing the high-standard collision test and being able to leave the test normally, it can withstand the two-ton swing arm impact test After the brand was opened from the laboratory.
2. Chassis parts adopt the reliable performance of international accessory products.
3. Car interior: humanized interior layout, high-end atmosphere shows taste.
4. The whole vehicle adopts CAN bus control technology: to improve the reliability and flexibility of the system.
5. A safer cab, stronger power, stronger carrying capacity, and better cost performance than models of the same level.
Contact Person: Trump Wang
Tel: +8613156185375
