Place of Origin: | China |
Brand Name: | SINOTRUK HOWO |
Certification: | ISO/3C/ BV/IFA/SGS |
Model Number: | ZZ1257V4347B1 |
Minimum Order Quantity: | 1 Unit |
---|---|
Price: | Negotiation |
Packaging Details: | Waxing in Bulk ship, Roro ship, Container |
Delivery Time: | 10-30 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 3,000units per month |
Product Name:: | Sprinkling Truck | Color:: | White |
---|---|---|---|
Model:: | ZZ1257V4347B1 | Transmission:: | HW15710(10 Forwards & 2 Reverses) |
Engine:: | WP12.430E201 400HP | Cabin:: | HW76 Lengthened Cab |
High Light: | Sinotruk HOWO White Sprinkling Truck,LHD 6x4 Sprinkling Truck,ZZ1257V4347B1 |

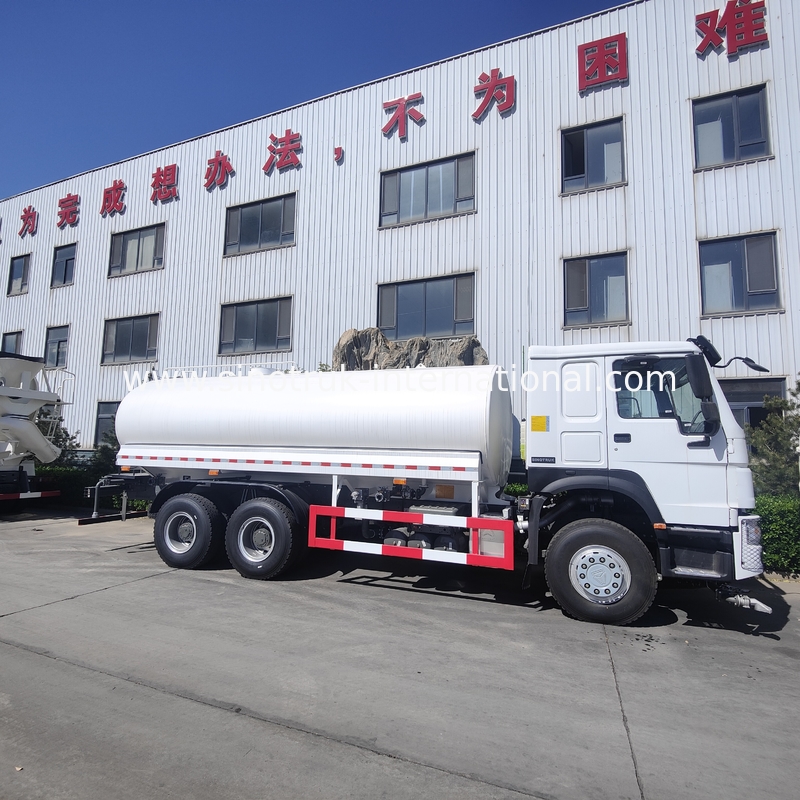

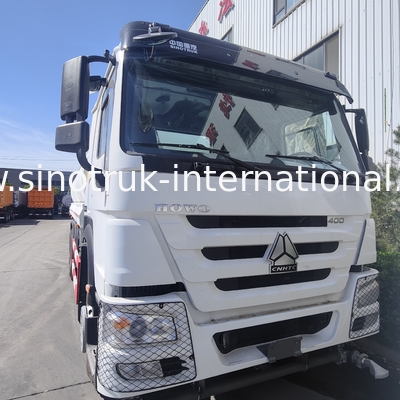

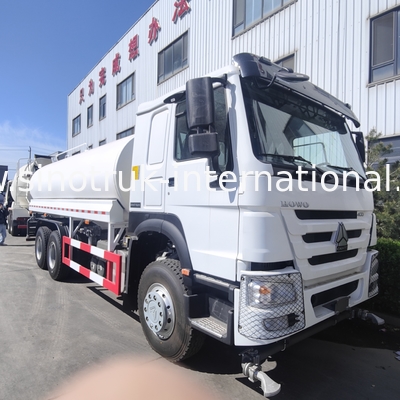

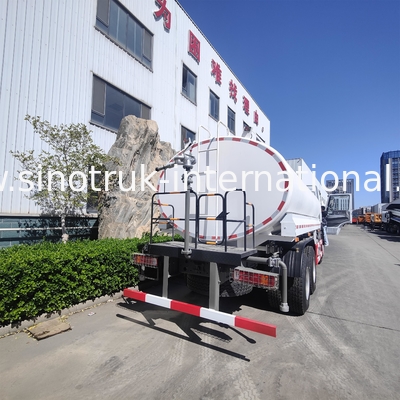

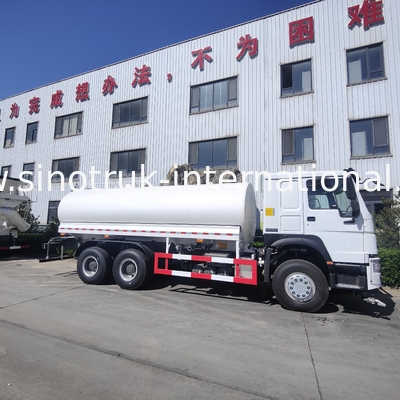

Sinotruk HOWO White LHD 6x4 Sprinkling Truck, ZZ1257V4347B1
HOWO White LHD 6x4 Sprinkling Truck
Description:
The LHD 6X4 18CBM sprinkler of China National Heavy Duty Truck Haowo Water Tank is used for construction in industrial and mining enterprises, road cleaning in large and medium-sized cities, dust removal, urban greening, status spraying, pesticide spraying, guardrail washing, and also has emergency firefighting functions such as water transportation and drainage
The water tank truck produced by our company has the characteristics of high pressure, wide spraying range, and good flushing effect. The flushing head can be adjusted arbitrarily to meet any angle and combination of flushing operations. This system can achieve both pneumatic and manual control. The exterior of the tank is sandblasted, the interior of the tank is anti-corrosion treated, and the exterior surface is sprayed with high-end polyurethane finish, resulting in a beautiful appearance. It can be equipped with front and rear high spray, with spray diffusion function, and can rotate horizontally 360 degrees or tilt up and down 150 degrees. Small flow pump and spray can be equipped to wake up garden flowers and kill insects. Its working principle is that the truck engine drives the gearbox, and the power on the gearbox takes off to drive the sprinkler pump, which generates the main driving force of the sprinkler pump, and sprays the liquid in the tank through the pipeline. Self suction height ≤ 7m, nozzle width ≥ 20m, maximum range ≥ 28m; Adjust the column to a range of 28m or greater; It can also be adjusted to fog, with a range equal to or greater than 5m. Before spraying, a duck shaped nozzle or circular blunt nozzle is installed in the front, and an open type nozzle or cylindrical nozzle is installed in the back. Behind the work platform, a high-pressure water cannon is installed.
Specification:
Sinotruk HOWO White LHD 6x4 Sprinkling Truck, ZZ1257V4347B1 | |
Chassis Model | ZZ1257V4347B1 |
Drive Type | 6×4 |
Engine | WP12.430E201, 400HP |
Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat) |
Transmission | HW15710(10 forwards & 2 reverses) |
Front Axle | HF9(1X9 Tons) |
Driving Axle | HC16(1X16 Tons) |
Clutch | hydraulically operating with air assistance |
Rim/ Tire | 315/30R22.5 |
Wheel base | 4400+1350(mm) |
Capacity of tank body | 15-20CBM |
Spraying width of travel | 14.8m |
Spraying height | ≧30m |
Water sucking depth | ≧4m |
Overall dimension | 9520×2496×3150mm |
The curb weight | 10180(Kg) |
Gross weight | 25000 kg |
Max. speed | 95km/h |
Color | White, red, green, orange and so on. |
Applications:
The water tank truck is mainly used for the construction of mines and other enterprises, and for the washing and dust prevention of roads in large and medium-sized cities.
Competitive Advantage:
1) Competitive price and high cost performance
2) Fast and efficient supply of spare parts brings you more convenience
3) The delivery time is fast. We can arrange production accurately and quickly according to your needs
4) Professional import and export processing process makes customs clearance more efficient
5) High pressure, wide spraying range, good flushing effect
6) Universal adjustment of blunt head to meet any angle and combination punching operation
7) Pneumatic control and manual control system can realize two functions
8)The exterior of the tank body is sandblasteinterior id, the s antiseptic, and the exterior surface is made of advanced polyurethane paint, with beautiful appearance
9)Front and rear high spray optional, spray diffusion function, 360 degrees rotation, up and down tilt 150 degrees. Choose a small flow pump, spray reel to wake up insecticidal garden trees and flowers
10) Various types of trucks can meet your needs.
11) the key parts adopt the world's top technology products
12)Based on strong technical support and top technology, the truck is of higher quality and more reliable
