LHD 6×4 10wheels Concrete Mixer Truck High Horsepower 336HP

Product Details:

Place of Origin:	China
Brand Name:	HOWO
Certification:	ISO/3C/BV/IFA/SGS
Model Number:	ZZ1257N3847B1

Payment & Shipping Terms:

Minimum Order Quantity:	1 unite
Price:	negotiation
Packaging Details:	Nude or Waxing in Roro or bulk ship
Delivery Time:	25-30 days after received your advance payment
Payment Terms:	T/T
Supply Ability:	3000 per month

Contact Now

Detailed Product Description

Model:	ZZ1257N3847B1	Tank Body Capacity:	10CBM
Engine:	WD615.69 336HP	Cab:	HW76
Color:	White	Emission Standard:	Euro 2
High Light:	LHD 6×4 Concrete Mixer Truck , High Horsepower Concrete Mixer Truck , 336HP Concrete Mixer Truck

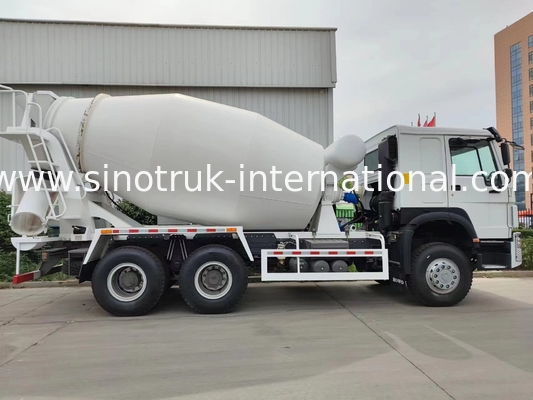

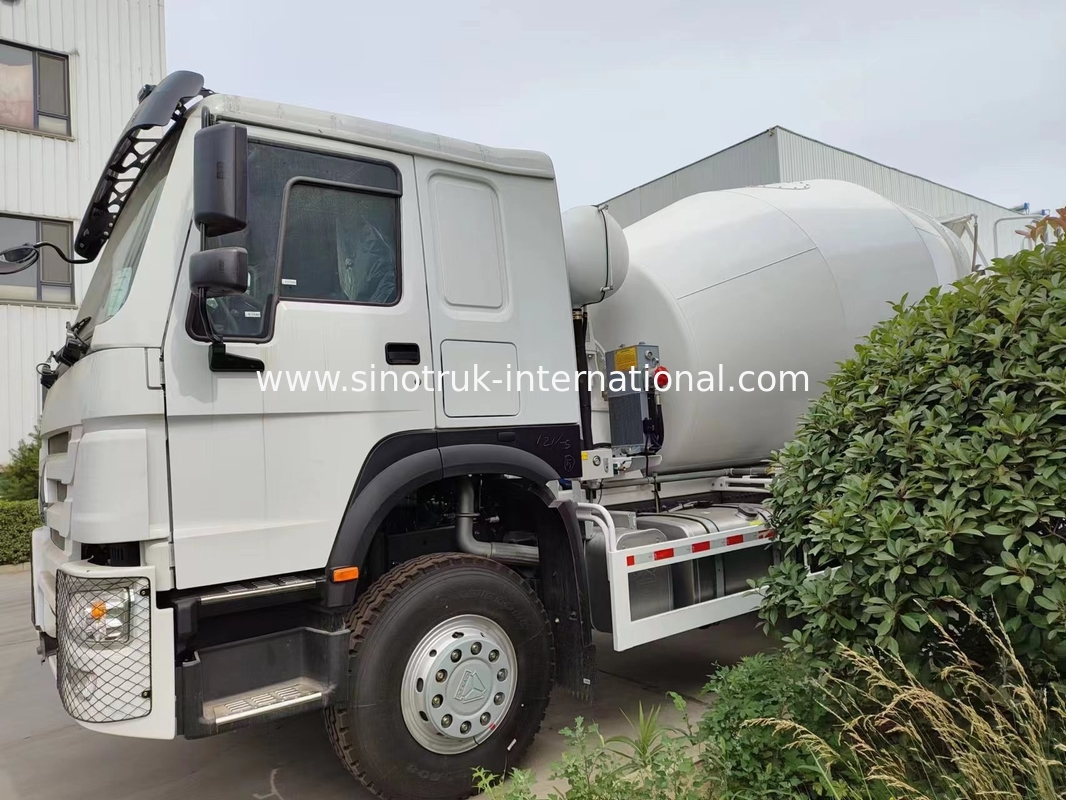

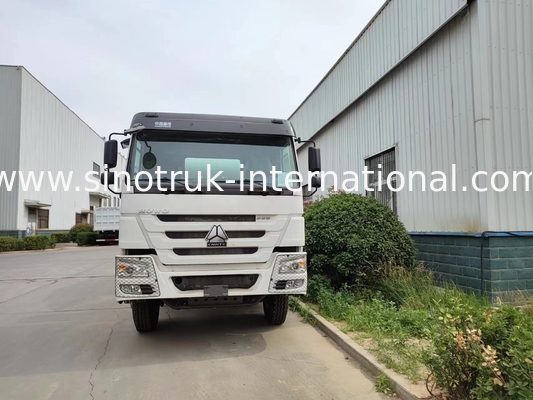

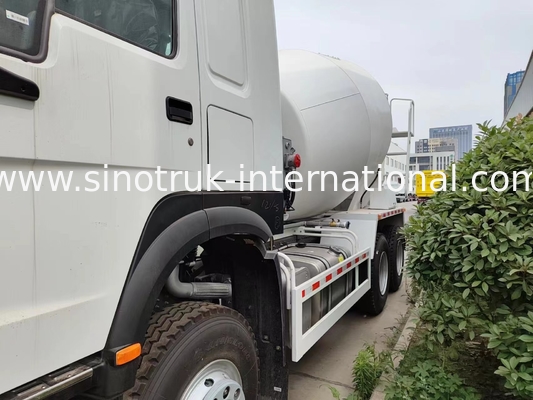

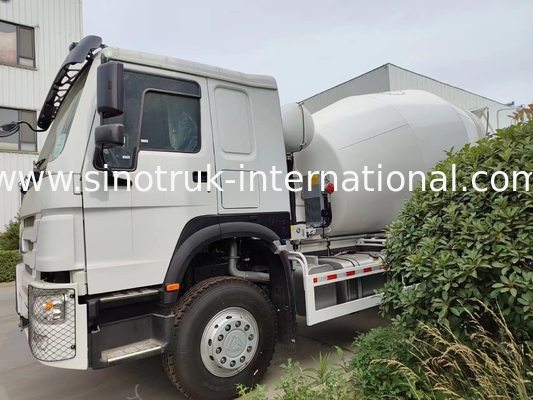

LHD 6×4 10wheels High Horsepower 336HP Concrete Mixer Truck

Sinotruk Howo Concrete Mixer Truck 10-20CBM 6 x 4 Euro 2 336Hp Construction

Description:

HOWO mixer, suitable for urban construction, highway, railway and other departments. Stirring truck is one of the indispensable important equipment in mechanized construction. The body material is made of special wear-resistant alloy material. The concrete mixing transport uniformity is good. Loading and discharging
Fast speed, low slag discharge rate, reliable hydraulic system, easy to operate, beautiful appearance.

Specification:

Sinotruk Howo Concrete Mixer Truck 10-20CBM 6 x 4 Euro 2 340Hp Construction

Model

ZZ1257N3847B1

Drive Type

6×4

Engine

WD615.69 336HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

Displacement : 9.726L

Cabin

HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)

Transmission

HW19710(10 forwards & 2 reverses)

Front Axle

1×VGD95 ( 9.5 Tons)

Driving Axle

2×HC16, 2×16Tons

Steering

BOSCH or China brand hydraulic steering with power assistance.

Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire

11.00R20,12.00R20,12.00R24 Radial tire

Wheel base

3800+1350(mm)

Overall dimension

8075×2600×3000(mm)

Tank body Capacity

10-20CBM

The curb weight

12650(Kg)

Gross weight

31000 kg

Max. speed

102km/h

Color

White, red, green, golden and so on.

Applications:

t’s suitable for agitating and transiting concrete, for construction site, road repairing and some other

infrastructure construction business.

Competitive Advantage:

1) Leading product technology, complete functions, excellent performance, reliable quality, easy to operate.
2) Valve body structure optimization, special mold production, beautiful appearance, uniform concrete mixing, uniform discharge, low residual rate.
3) Imported hydraulic pump, hydraulic motor, reducer.
4) The interior of the mixer adopts the mode of large blade and multi-phase three-dimensional mixing, which is more in line with the characteristics of Chinese concrete, and the speed of entering and leaving the material is fast and the residual rate is lower
5) Overall structure optimization, low center of gravity, high operating efficiency.
6) Wide product range, tank capacity 6 ~ 18 cubic meters.
7) Choose a variety of auxiliary devices.
8)The tank material is made of the latest generation of special high-strength wear-resistant steel for mixing trucks, and the blades are also equipped with wear-resistant strips, so the service life is longer than that of ordinary tanks
9) Relying on strong technical support and first-class technology, make the truck with high quality and more reliable
10) The price is competitive and cost-effective
11) Fast and efficient spare parts supply to bring you more convenience
12) Delivery time is fast, we can precisely arrange production according to your needs quickly
13) Professional import and export transaction process, making customs clearance more efficient LHD 6×4 10wheels Concrete Mixer Truck High Horsepower 336HP 0
