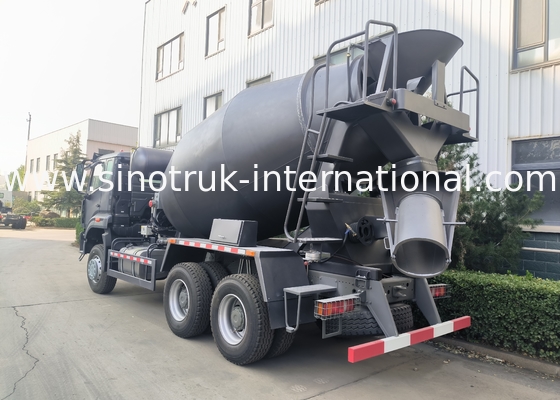

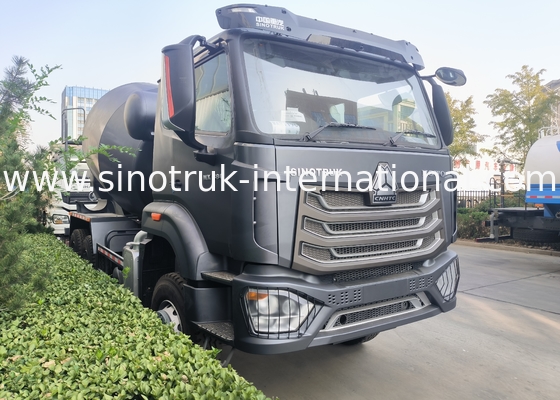

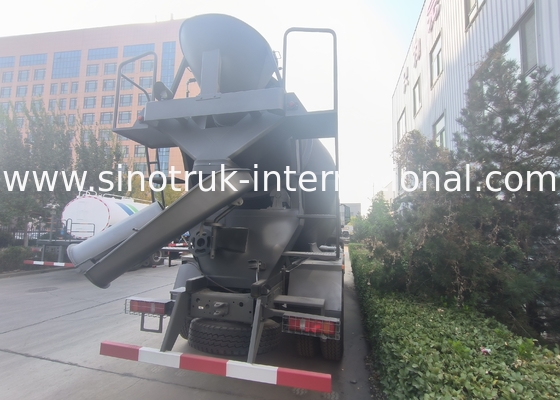

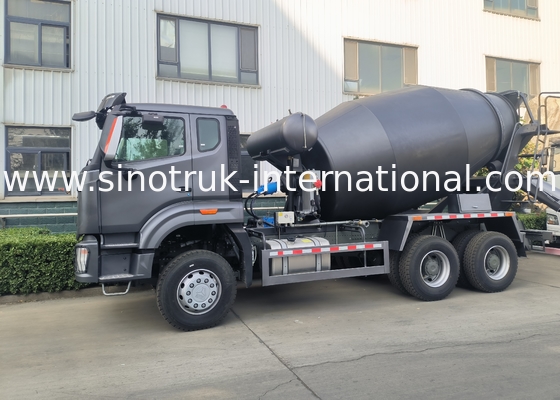

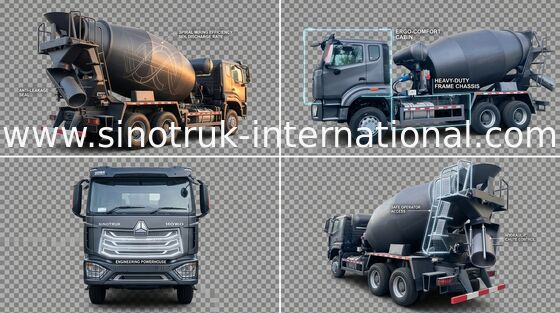

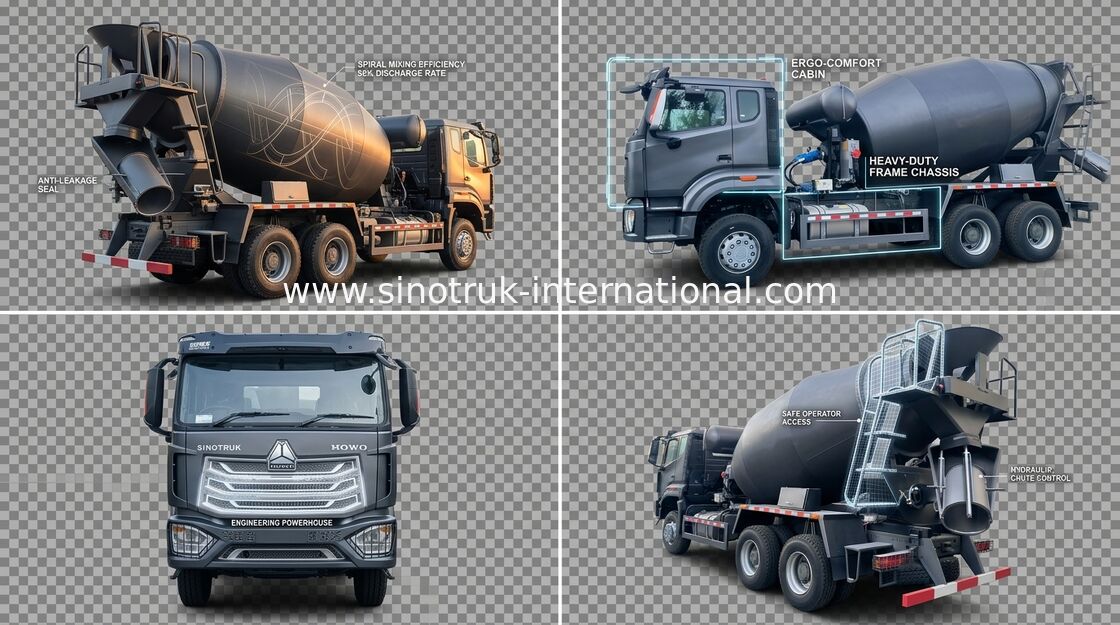

Sinotruk Howo N7 Concrete Mixer Truck 6-10CBM 6 X 4 Euro 2 380Hp

Sinotruk Howo N7 Concrete Mixer Truck 6-10CBM 6 X 4 Euro 2 380Hp

  • Sinotruk Howo N7 Concrete Mixer Truck 6-10CBM 6 X 4 Euro 2 380Hp
  • Sinotruk Howo N7 Concrete Mixer Truck 6-10CBM 6 X 4 Euro 2 380Hp
  • Sinotruk Howo N7 Concrete Mixer Truck 6-10CBM 6 X 4 Euro 2 380Hp
  • Sinotruk Howo N7 Concrete Mixer Truck 6-10CBM 6 X 4 Euro 2 380Hp
Sinotruk Howo N7 Concrete Mixer Truck 6-10CBM 6 X 4 Euro 2 380Hp
Product Details:
Place of Origin: China
Brand Name: SINOTRUK
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ1257V384JB1R
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: Negotiation
Packaging Details: Waxing in Bulk ship, Roro ship, Container
Delivery Time: 10-30 working days
Supply Ability: 3,000 units per month
Contact Now
Detailed Product Description
Product Name: Concrete Mixer Truck Model: ZZ1257V384JB1R
Drive Type: RHD 6X4 Engine: WP10.380E22,380HP
Tank Body Capacity: 6-10CBM Color: Optional
High Light:

10CBM Concrete Batch Truck

,

380Hp Concrete Mixer Truck

,

Sinotruk Howo N7 Cement Mixer Truck

Sinotruk Howo N7 Concrete Mixer Truck 6-10CBM 6 X 4 Euro 2 380Hp



Description:



HOWO Mixer Truck,suitable for urban construction,highway,railway,and other departments. Mixer truck is one of indispensable important equipment of the mechanize construction. The body material use special wear-resistant alloy materials.Concrete mixing and transportation with good mixing uniformity. Loading and discharge is
speedly,discharge residual rate is low, hydraulics system reliable,easy to operation and look like beautiful.







Specification:



Sinotruk Howo N7 Concrete Mixer Truck 6-10CBM 6 X 4 Euro 2 380Hp
Model ZZ1257V384JB1R
Drive Type 6×4
Engine
WP10.380E22,380HP( Euro II)
6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine
Displacement : 9.726L
Cabin H77L lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×VGD95 ( 9.5 Tons)
Driving Axle 2×MCX16ZG, 2×16Tons
Steering BOSCH or China brand hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3800+1350(mm)
Overall dimension 8075×2600×3000(mm)
Tank body Capacity 6-10CBM
The curb weight 12650(Kg)
Gross weight 25000 kg
Max. speed 102km/h
Color White, red, green, golden and so on.




Applications:



t’s suitable for agitating and transiting concrete, for construction site, road repairing and some other

infrastructure construction business.



Competitive Advantage:



1) The leading product technology, complete function, excellent performance, reliable quality, easy to

operate.

2) Optimization of body structure, special mold production, beautiful appearance, concrete mixing,

discharge uniformity, low rate of residual.

3) Imported hydraulic pump, hydraulic motor and speed reducer.

4) Uses the high strength steel plate, long service life.

5) Optimization of the whole structure, low center of gravity, high running efficiency.

6) Product range is wide, the tank capacity of 6 to 18 cubic meters.

7) Choose a variety of auxiliary device.

8) Match all concrete mixer truck chassis.

9) based on strong technical support and top level technology make the trucks with high

quality and more reliable
10) competive price, cost-effective
11) quick and efficient spare parts supply bring you more convenient
12) fast delivery time, we can arange production according to your needs exactly and

quickly

13) professional import and export dealing precedure, make customs clearance more high efficiencySinotruk Howo N7 Concrete Mixer Truck 6-10CBM 6 X 4 Euro 2 380Hp 0Sinotruk Howo N7 Concrete Mixer Truck 6-10CBM 6 X 4 Euro 2 380Hp 1
