Place of Origin: | China |
Brand Name: | SINOTRUK |
Certification: | ISO/3C/BV/IFA/SGS |
Model Number: | ZZ1267N4617B1 |
Minimum Order Quantity: | 1Unit |
---|---|
Price: | Negotiation |
Packaging Details: | Waxing in Bulk ship, Roro ship, Container |
Delivery Time: | 10-30 working days |
Supply Ability: | 3,000 units per month |
Product Name: | Oil Tank Truck | Model: | ZZ1267N4617B1 |
---|---|---|---|
Drive Type: | LHD 4x2 | Emission Standard: | Euro 2 |
Engine: | WD615.87, 290HP | Tank Body Capacity: | 16-20CBM |
Highlight: | Fuel Tank Howo Semi Truck,Euro2 Oil Tank Truck,290HP Howo Semi Truck |

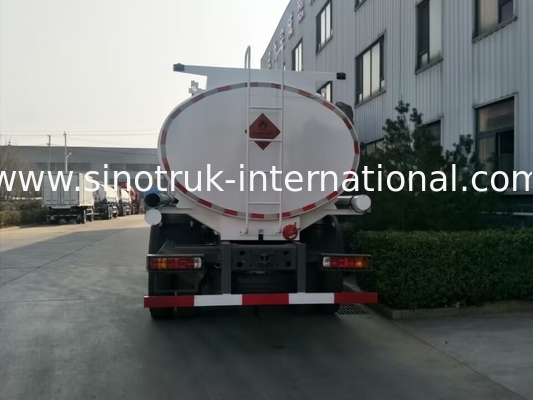

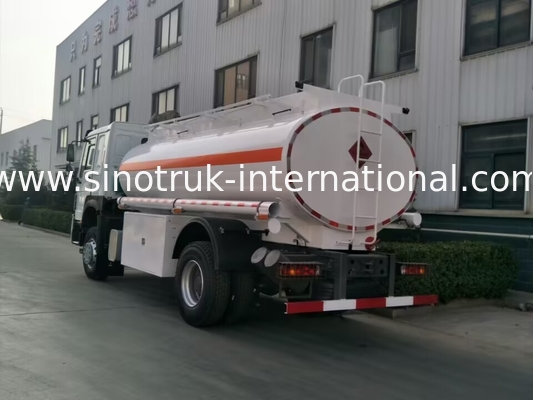

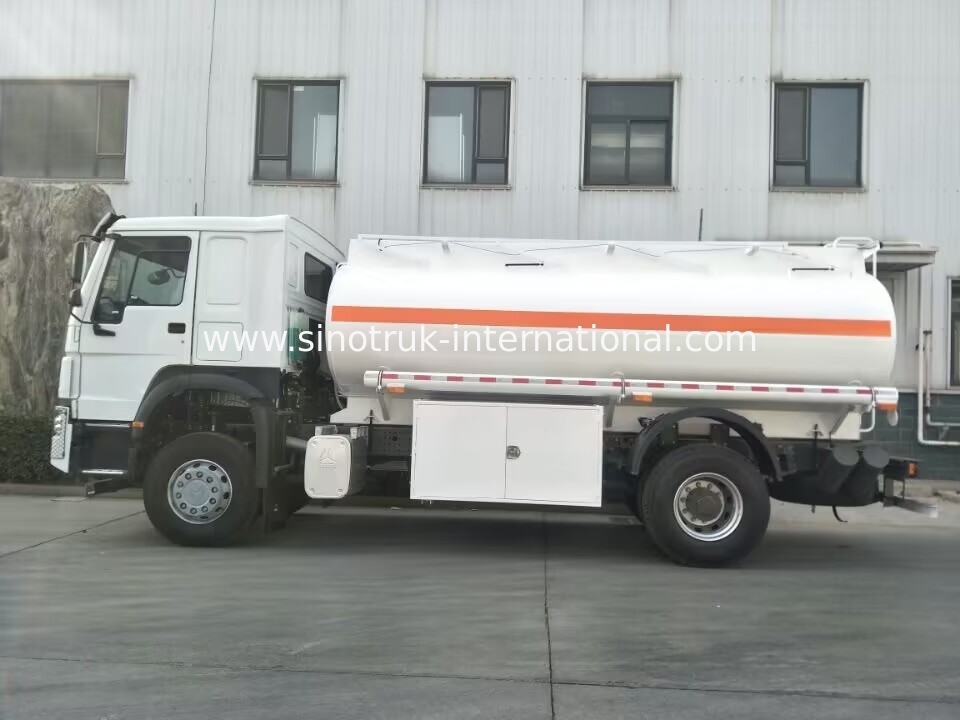

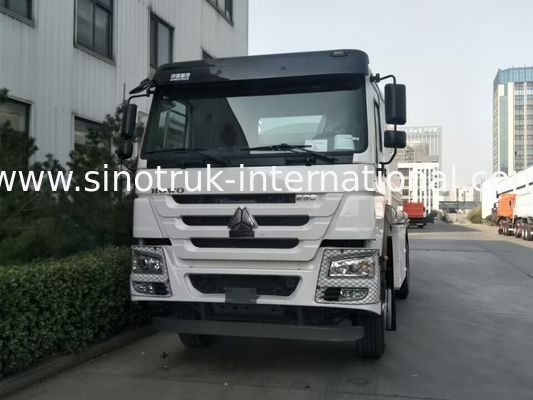

SINOTRUK Howo Semi Truck Fuel Tank 4x2 Lhd Euro2 290hp white
Description:
Howo 4x2 tank trucks have a variety of refueling or oil transport functions depending on the application and environment.
It has the functions of oil absorption, oil pump, various oil distribution and oil distribution.

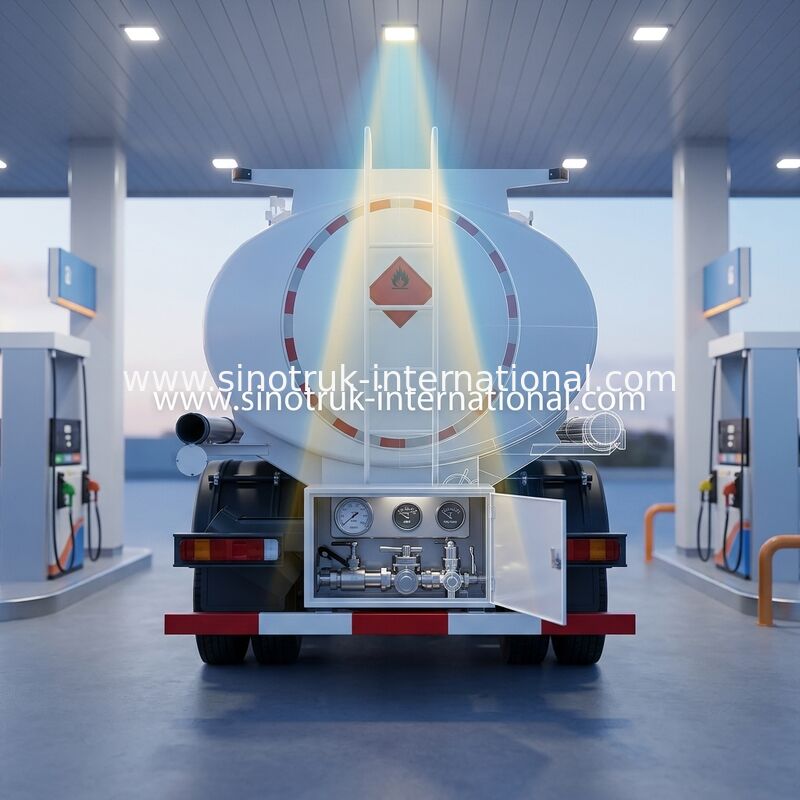

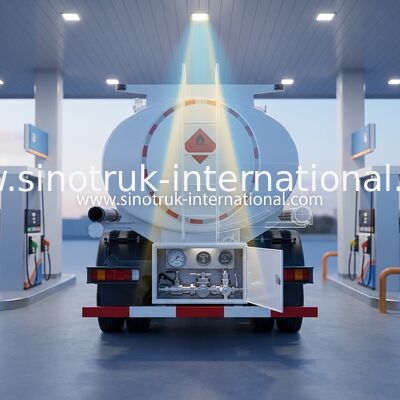

The special part of the tank car is composed of tank body, power output, transmission shaft, gear pump, pipeline, etc
Network system, etc. The pipe network system consists of an oil pump, a three-way four-position ball valve, and a
Two-way ball valves, filters and piping.
Specification:
SINOTRUK HOWO Fuel Tank Truck 6X4 LHD Euro2 290HP |
|
Chassis Model | ZZ1267N4617B1 |
Drive Type | 4×2 |
Engine | WD615.87, 290HP |
Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat) |
Transmission | HW19710(10 forwards & 2 reverses) |
Front Axle | HF9(1X9 Tons) |
Driving Axle | HC16(1X16 Tons) |
Clutch | hydraulically operating with air assistance |
Rim/ Tire | 12.00R20, Radial tyre |
Wheel base | 4600+1350(mm) |
Capacity of tank body | 16-20CBM |
Thickness of tank body | 5mm,With 5 cabin |
Basic setup | Gear oil pump, flow meter, flash hider, fire extinguisher |
Overall dimension | 9200×2500×3150mm |
The curb weight | 11940(Kg) |
Gross weight | 25000 kg |
Max. speed | 95km/h |
Color | White, red, green, golden and so on. |
Applications:
The Oil tank truck is mainly used for oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil) transportation and storage.
Competitive Advantage:
1. Through the crash test, driving safety guarantee: steel frame structure, frame safety protection safety four-level safety protection system, through the high standard crash test and can normally leave the test, can withstand two tons of swing arm impact test.
2. Chassis parts with reliable performance of international supporting products.
3. Car interior: humanized interior layout, high-end atmosphere showing taste.
4. The vehicle adopts CAN bus control technology, which improves the reliability and flexibility of the system.
5. The cab is safer, more powerful, more carrying capacity, and more cost-effective than the same model.
