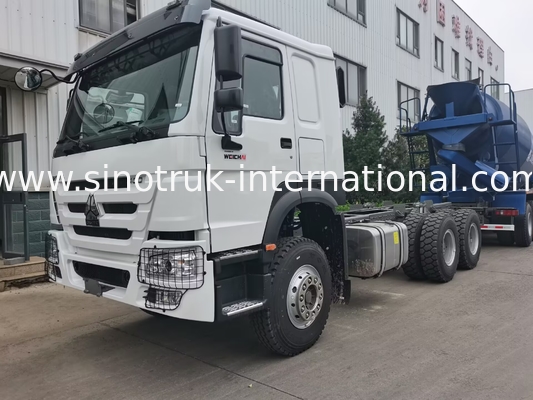

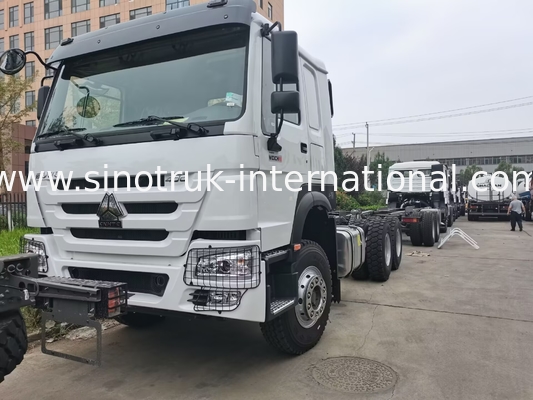

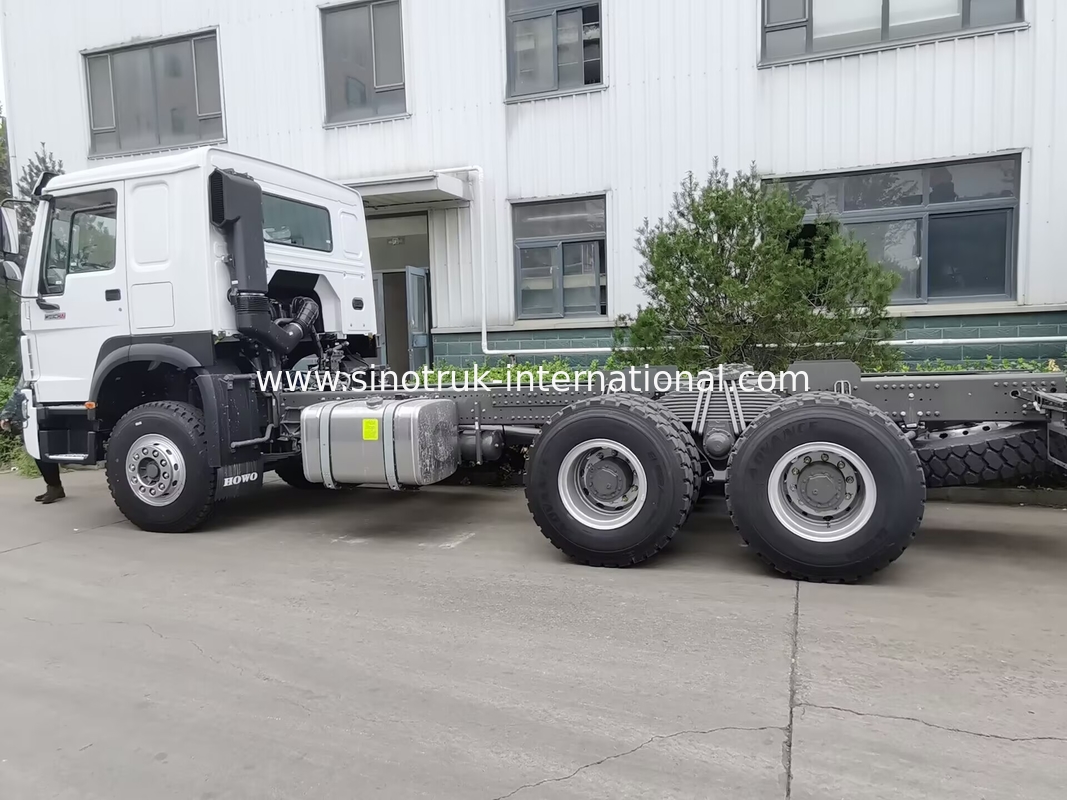

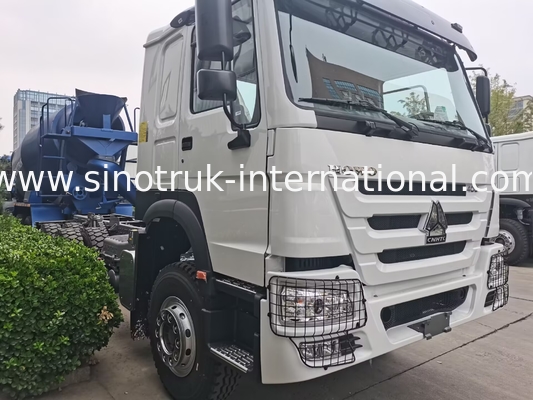

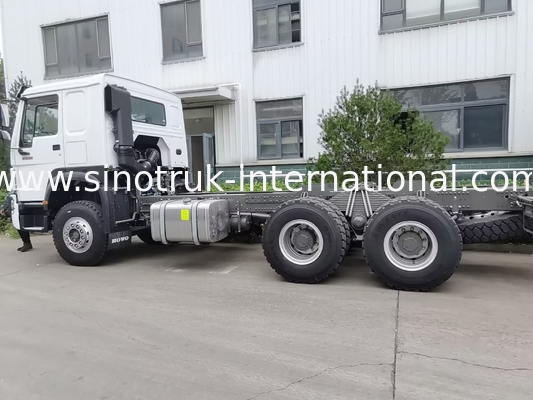

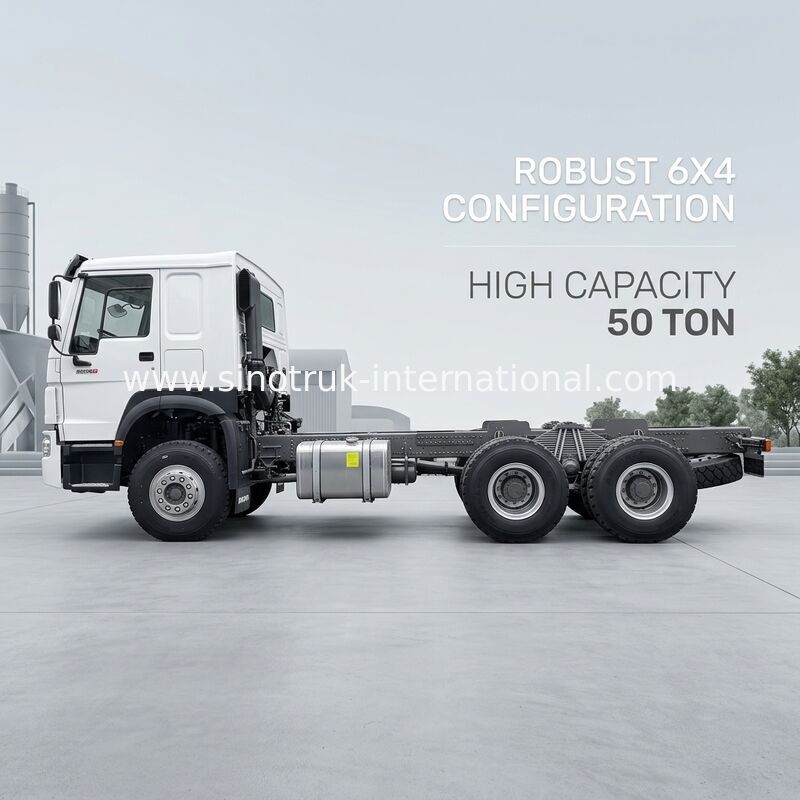

SINOTRUK HOWO Dropside Cargo Commercial Vehicles Truck Chassis LHD 6X4 400HP

SINOTRUK HOWO Dropside Cargo Commercial Vehicles Truck Chassis LHD 6X4 400HP

  • SINOTRUK HOWO Dropside Cargo Commercial Vehicles Truck Chassis LHD 6X4 400HP
  • SINOTRUK HOWO Dropside Cargo Commercial Vehicles Truck Chassis LHD 6X4 400HP
  • SINOTRUK HOWO Dropside Cargo Commercial Vehicles Truck Chassis LHD 6X4 400HP
  • SINOTRUK HOWO Dropside Cargo Commercial Vehicles Truck Chassis LHD 6X4 400HP
SINOTRUK HOWO Dropside Cargo Commercial Vehicles Truck Chassis LHD 6X4 400HP
Product Details:
Place of Origin: China
Brand Name: SINOTRUK HOWO
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ1257V3847B1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3,000units per month
Contact Now
Detailed Product Description
Product Name: Cargo Truck Model: ZZ1257V3847B1
Drive Type: 6X4 LHD Emission Standard: Euro2
Engine: WP12.400E201,400 HP( Euro II) Dimension Of Cargo Body: 7100*2300*800+500mm
Loading Capacity: 25-40Tons Color: White
High Light:

400HP Cargo Truck Chassis

,

6X4 Cargo Truck Chassis

,

LHD Cargo Truck Chassis

SINOTRUK HOWO Dropside Cargo Commercial Vehicles Truck Chassis LHD 6X4 400HP



Description:



SINOTRUK HOWO Dropside Cargo truck Chassis LHD 6X4 400HP

By its applications,it can be classified two types: general

cargo truck and multi-purpose truck and the former can be divided in two parts: van and

flatbed tow truck. And the latter is mainly used to carry cargo in terms or its design

and structure, but there are folding seats or fixed seats  behind the driver’s seat.

Therefore, this truck could hold more than 3 passengers.



High strength/ high rigidity/ long life block: vermicular cast iron body, similar strength cast steel, similar heat dissipation potential gray iron, strong anti-thermal deformation, high cost, can be adopted in few high end engines in the world due to its core technology.



1). Good economy: high-explosive pressure and optimized injection and combustion system, ensuring its low specific oil consumption at a wide range of sppds, Minimum specific oil consumption is 186/kwh.



2). Low nose: noise reaches the international level.



3). High-integration: volume of spare parts reduced 25% compared with the similar products in the world, highly reducing the failure points.



4). Long life of B10: reach the most advanced world level of heavy duty truck, 1.5 million km.



5). Long oil change interval: for Euro IV oil, the first oil change mileage( oil change interval) for the road vehicles since left factory shall be up to 100.000 km, for the oil selling bu Petrochina and Sinopec. it shall be up to 60.000 km, greatly reducing the cost.




Specification:



SINOTRUK HOWO Dropside Cargo truck Chassis LHD 6X4 371HP, export to Ethiopia

Chassis Model

ZZ1257V3847B1

Drive Type

6×4

Engine

WP12.400E201,400 HP( Euro II)

Cabin

HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat)

Transmission

HW19710(10 forwards & 2 reverses)

Front Axle

HF9(1X9 Tons)

Driving Axle

HC16(1X16 Tons)

Clutch

hydraulically operating with air assistance

Rim/ Tire

11.00R20, Radial tyre

Wheel base

4300+1350(mm)

Dimension of cargo body

9500*2300*800mm, Bottom:3mm, Side:1.5mm

Overall dimension

9735×2496×3050mm

The curb weight

11450(Kg)

Gross weight

25000 kg

Max. speed

95km/h

Color

White, red, green, golden and so on.


Applications:



It’s suitable for Logistics business, for transport all kinds of goods, such as machine, equipment, coal

and so on .



Competitive Advantage:



High Safety

1. Four independent braking systems

Our cargo trucks adopt four direct-operated pneumatic braking systems (front axle brake, rear axle brake, parking emergency brake,

engine auxiliary brake), with automatic clearance adjustment. This, coupled with modem brake devices

like ABS, makes your driving highly reliable and safe.

2. Wide-angle rear view mirror

The luxury wide-angel rear view mirror provides the drive with unobstructed all-around visibility, further assuring

driving safety.



Low Fuel consumption

Low fuel consumption: 1200-1200 turn over wide economic speed low fuel consumption, a new combustion

principle, the second  generation of Bosch common rail fuel injection system, high economic benefit.

Oil change interval is lengthen: euro Ⅱ consumption, road transport vehicles from the factory to change  the oil for the first time, a maximum mileage of 30000 kilometers, so there is low transport cost.



Aesthetic Design

Our cargo trucks are outlined with full and smooth lines, which better meets aerodynamic principles and greatly reduces the drag coefficient, thus significantly improving fuel economy.

Luxury and stylish integral bumper, elegant high-brightness headlights.

New soft interior and dashboard are both aesthetic and practical; detachable combination instrument is convenient to repair and maintain.

Electric window regulator, central electric control door lock



SINOTRUK HOWO Dropside Cargo Commercial Vehicles Truck Chassis LHD 6X4 400HP 0SINOTRUK HOWO Dropside Cargo Commercial Vehicles Truck Chassis LHD 6X4 400HP 1SINOTRUK HOWO Dropside Cargo Commercial Vehicles Truck Chassis LHD 6X4 400HP 2
