Place of Origin: | China |
Brand Name: | HOWO |
Certification: | ISO/3C/BV/IFA/SGS |
Model Number: | ZZ1257V584JE1 |
Minimum Order Quantity: | 1 unite |
---|---|
Price: | negotiation |
Packaging Details: | Nude or Waxing in Roro or bulk ship |
Delivery Time: | 25-30 days after received your advance payment |
Payment Terms: | T/T, L/C |
Supply Ability: | 3000 per month |
Color: | White | Model: | ZZ1257V584JE1 |
---|---|---|---|
Engine: | WP10.380E53 | Front Axle: | VGD95 |
Drive Axle: | MCX16ZG | Horse Power: | 380HP |
Highlight: | HOWO Oil Tank Truck,6*4 Oil Tank Truck,380HP Oil Tank Truck |

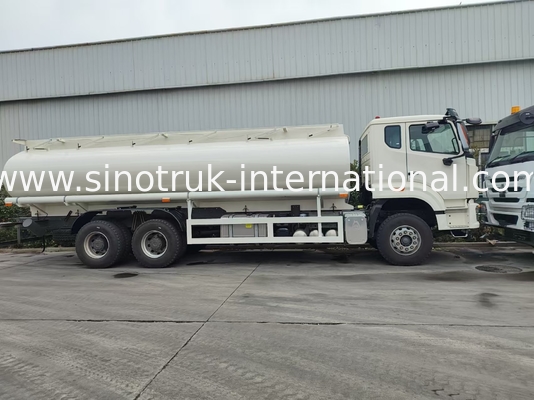

LHD 6×4 10wheels High Horsepower 380HP HOWO Oil Tank Truck
Oil Tank Truck SINOTRUK HOWOA7 20CBM for Oil Transportation 6X4 LHD Euro2 380HP
Description:
Oil Tank Truck SINOTRUK HOWOA7 20CBM for Oil Transportation 6X4 LHD Euro2 290HP
HOWO Oil Tank Truck, adopts H77L Cab technology, and HF7 or HF9 front axle, MCX16ZG driving axles. Chassis drive tyep have 4X2, 6X2, 6X4 and 8X4. The engine power from 266HP, to 420HP.
The Oil tanker is also called mobile fuel trucks, computer refueling vehicle, oil tanker, tanker loading oil, pulling oil, oil truck, edible oil transport vehicle, mainly for oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil) transportation and storage. According to a variety of gas or oil, and the use of different environment with the oil, pump oil, a variety of oil equipment, put the function. Tanker special part is composed of a tank, PTO, drive shaft, gear pump, pipeline system components. Pipes system is composed of an oil pump, three through four ball valve, two-way valve. Filter pipe.
Our company production of the Oil Tank Truck adopts advanced butt welding technology, the
high pressure gas after the forming of the tank test leak detection, the tank has high
strength, stable center of gravity, vehicle safety and stable; tank welding after shot
blasting pretreatment process, rust, paint adopts advanced baking technology, durable and
beautiful appearance. Independent sub warehouse, packing for different oil products,
chemicals, food, as liquid food truck, chemical liquid truck and insulation liquid
transport vehicle, dangerous goods transport vehicles, the asphalt transport vehicle use.
Specification:
Oil Tank Truck SINOTRUK HOWOA7 20CBM for Oil Transportation 6X4 LHD Euro2 400HP | |
Chassis Model | ZZ1257V584JE1 |
Drive Type | 6×4 |
Engine | WP10.380E53 |
Cabin | A7-W lengthened cab(with one sleeper, air-conditioner and two new-style seat) |
Transmission | HW15710(10 forwards & 2 reverses) |
Front Axle | HF9(1X9 Tons) |
Driving Axle | HC16(1X16 Tons) |
Clutch | hydraulically operating with air assistance |
Rim/ Tire | 12.00R20, Radial tyre |
Wheel base | 4400+1350(mm) |
Capacity of tank body | 16-20CBM |
Thickness of tank body | 5mm,With 5 cabin |
Basic setup | Gear oil pump, flow meter, flash hider, fire extinguisher |
Overall dimension | 9200×2500×3150mm |
The curb weight | 11940(Kg) |
Gross weight | 25000 kg |
Max. speed | 95km/h |
Color | White, red, green, golden and so on. |
Applications:
The Oil tank truck is mainly used for oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil)
transportation and storage.
Competitive Advantage:
1) The tank cars produced by our company adopt advanced butt welding technology, after forming
Tank high-pressure gas leakage detection, tank with high strength, stable center of gravity,
Safe and stable vehicle characteristics;
2) Shot blasting pretreatment process after melting pot, rust prevention, paint baking using advanced technology, durable, beautiful appearance. Independent subposition,
3) Divided into different oil, chemical, food, such as liquid food truck, chemical liquid car;
Insulated liquid transport vehicle, dangerous goods transport vehicle, asphalt transport vehicle
4) The outside of the tank is sandblasted, the inside is treated with anti-corrosion, and the outside surface is made of advanced polyurethane paint, which is beautiful in appearance
5) Front and rear high jet optional, water jet diffusion function, 360 degrees rotation;
Tilt up and down 150 degrees. Optional small flow pump, spray drum wake up garden trees insecticidal
Flowers and plants
6) The tanker is made of aluminum plate with high strength and elongation. The cylinders are not butt welded. It is light weight, good safety performance, to ensure the quality of oil transportation
7) World top technology products are adopted for key components
8) Based on strong technical support and first-class technology, we produce high-quality trucks
More reliable
9) Competitive price, cost-effective
10) The "Danger" plate on the top of the cab is clear and easy to identify, which is also the unique symbol of the medium and heavy truck dangerous goods transport vehicle, which can make the surrounding vehicles alert and maintain a safe distance
11) Fast delivery time, we can accurately and quickly arrange production according to your needs
12) Professional import and export transaction procedures make customs clearance more efficient
