Place of Origin: | China |
Brand Name: | HOWO |
Certification: | ISO/3C/BV/IFA/SGS |
Model Number: | ZZ1047D3414C145 |
Minimum Order Quantity: | 1 unite |
---|---|
Price: | negotiation |
Packaging Details: | Nude or Waxing in Roro or bulk ship |
Delivery Time: | 25-30 days after received your advance payment |
Payment Terms: | T/T, L/C |
Supply Ability: | 3000 per month |
Color: | White | Drive Type: | 4×2 |
---|---|---|---|
Tank Body Capacity: | 5-6CBM | Engine: | YC4E140, 140HP |
Model: | ZZ1047D3414C145 | Product Name: | Oil Tank Truck |
Highlight: | 5CBM howo light truck,LHD howo light truck,6CBM howo light truck |

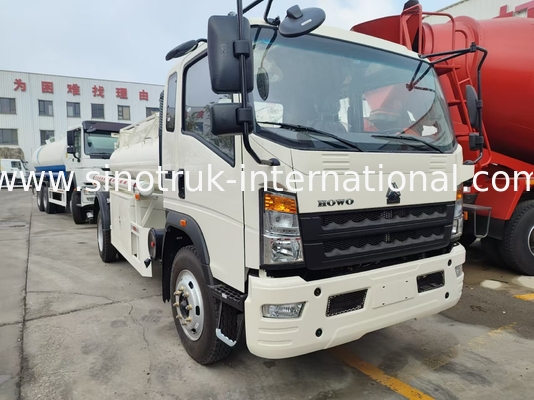

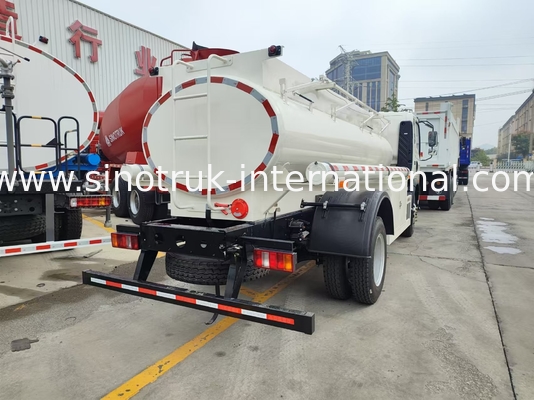

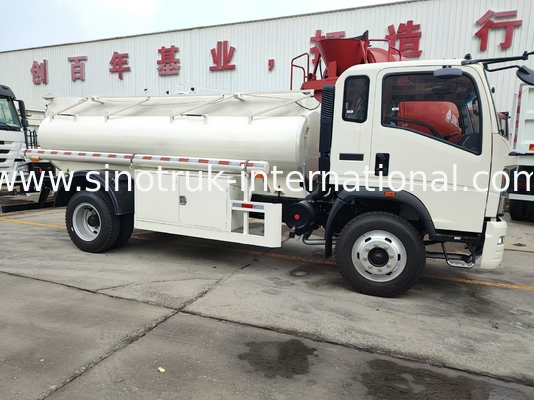

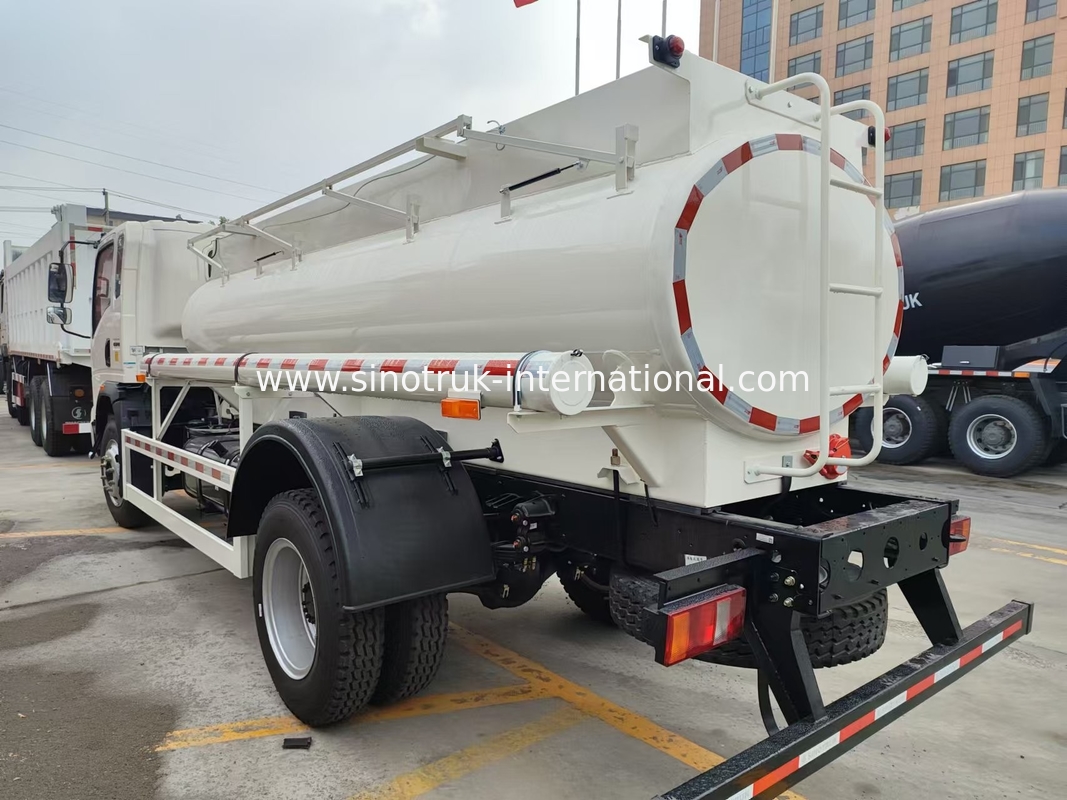

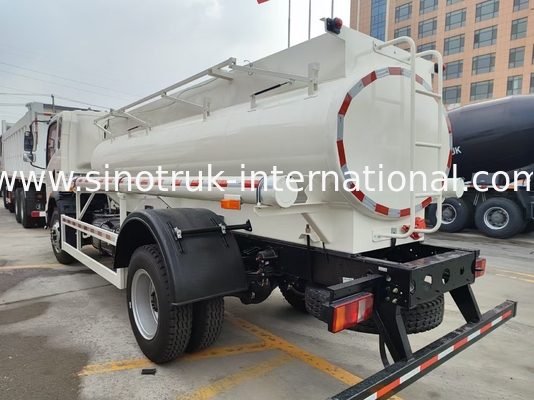

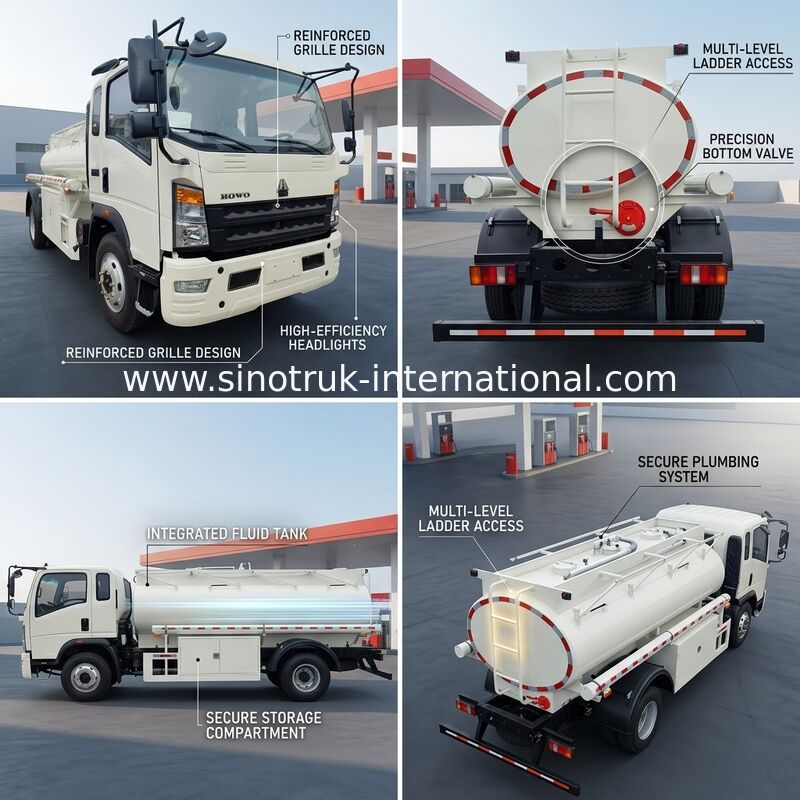

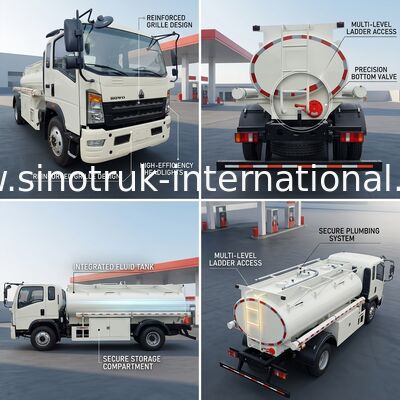

SINOTRUK HOWO 4X2 Transporting Oil Tank Truck SINOTRUK HOWO 5-6CBM
Description:
Sinotruk howo 5-6cbm tank truck for oil transport, 4X2 LHD, 140HP
Tank trucks are also known as mobile refueling trucks, computer refueling trucks, and tank trucks
Oil tanker, oil tanker loading, oil pulling, oil tanker, edible oil transport truck mainly
Petroleum derivatives (gasoline, diesel, lubricating oil and coal tar oil)
Transportation and storage. Can be used according to various gases or oils
Different environment oil distribution, pump oil, various oil loading equipment, oil discharge
Function. The special part of the tanker consists of the oil tank, PTO, drive shaft, gear pump,
Piping system components. The pipeline system consists of one oil pump, three and four channels
Ball valve, two way valve. Filter tube.
Specification:
Oil Tank Truck SINOTRUK HOWO 5-6CBM for transporting oils 4X2 LHD Euro 140HP | |
Chassis Model | ZZ1047D3414C145 |
Drive Type | 4×2 |
Engine | YC4E140, 140HP |
Cabin | 2080 lengthened cab(with one sleeper, air-conditioner and two new-style seat) |
Transmission | DC6J48TC(6 forwards & 1 reverses) |
Front Axle | 3.2 Tons |
Driving Axle | 8.2 Tons |
Clutch | hydraulically operating with air assistance |
Rim/ Tire | 8.25-20, 9.00R20 |
Wheel base | 4200(mm) |
Capacity of tank body | 5-6CBM |
Thickness of tank body | 3mm,With 2 cabin |
Basic setup | Gear oil pump, flow meter, flash hider, fire extinguisher |
Overall dimension | 7128×2462×3175mm |
The curb weight | 6300(Kg) |
Gross weight | 12490 kg |
Max. speed | 95km/h |
Color | White, red, green, golden and so on. |
Applications:
The Oil tank truck is mainly used for oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil)
transportation and storage.
Competitive Advantage:
1) The oil tankers produced by our company adopt advanced butt welding technology after forming
Used for leak detection of high-pressure gas tanks, high strength tank, stable center of gravity,
Safe and stable vehicle characteristics;
2) Shot blasting pretreatment process can be melted, rust prevention, paint using advanced technology, durable, beautiful appearance. Independent subposition
3) Divided into different petroleum, chemical, food and other liquid food vehicles, chemical liquid vehicles, thermal insulation liquid vehicles, dangerous goods transport vehicles, asphalt transport vehicles
4) The tank external sandblasting treatment, internal anti-corrosion treatment, the external surface of advanced polyurethane paint, beautiful appearance
5) Front and rear high spray optional, water jet diffusion function, 360 degrees rotation;
Tilt 150 degrees up and down. Optional small flow pump, spray drum wake up garden trees to kill insects
Flowers and plants
6) A variety of models to meet your requirements
7) The world's top technology products are used for key components
8) With strong technical support and first-class technology, the production of high-quality, high-quality trucks
More reliable
The price is competitive and cost-effective
10) Fast and efficient spare parts supply, to bring you more convenience
11) Fast delivery time, we can accurately and quickly arrange production according to your needs
12) Professional import and export trade procedures to improve customs clearance efficiency
