SINOTRUK INTERNATIONAL CO., LTD.
Sales & Support:

|
| Place of Origin: | China |
| Brand Name: | HOWO |
| Certification: | ISO/3C/BV/IFA/SGS |
| Model Number: | ZZ1257N3847W |
| Minimum Order Quantity: | 1 unite |
|---|---|
| Price: | negotiation |
| Packaging Details: | Nude or Waxing in Roro or bulk ship |
| Delivery Time: | 25-30 days after received your advance payment |
| Payment Terms: | T/T |
| Supply Ability: | 3000 per month |
| Model: | ZZ1257N3847W | Tank Body Capacity: | 10CBM |
|---|---|---|---|
| Engine: | WP12.400E201,400 HP( Euro II) | Cab: | HW76 |
| Color: | White | Emission Standard: | Euro 2 |
| Highlight: | SINOTRUK HOWO Concrete Mixer Truck,400 HP Concrete Mixer Truck,10 Wheels Concrete Mixer Truck |
||

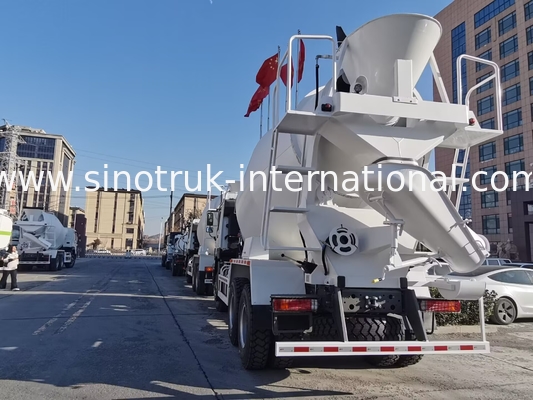

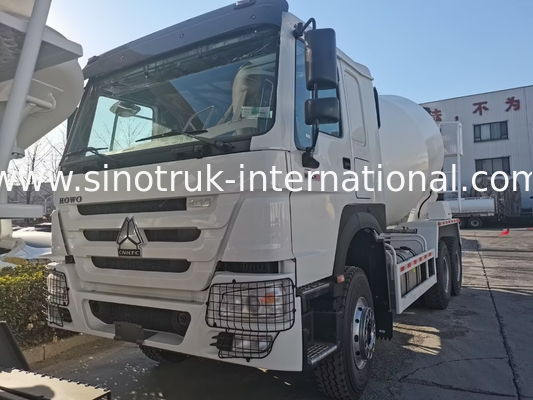

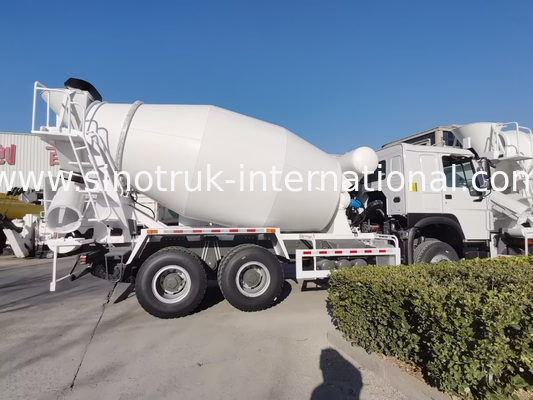

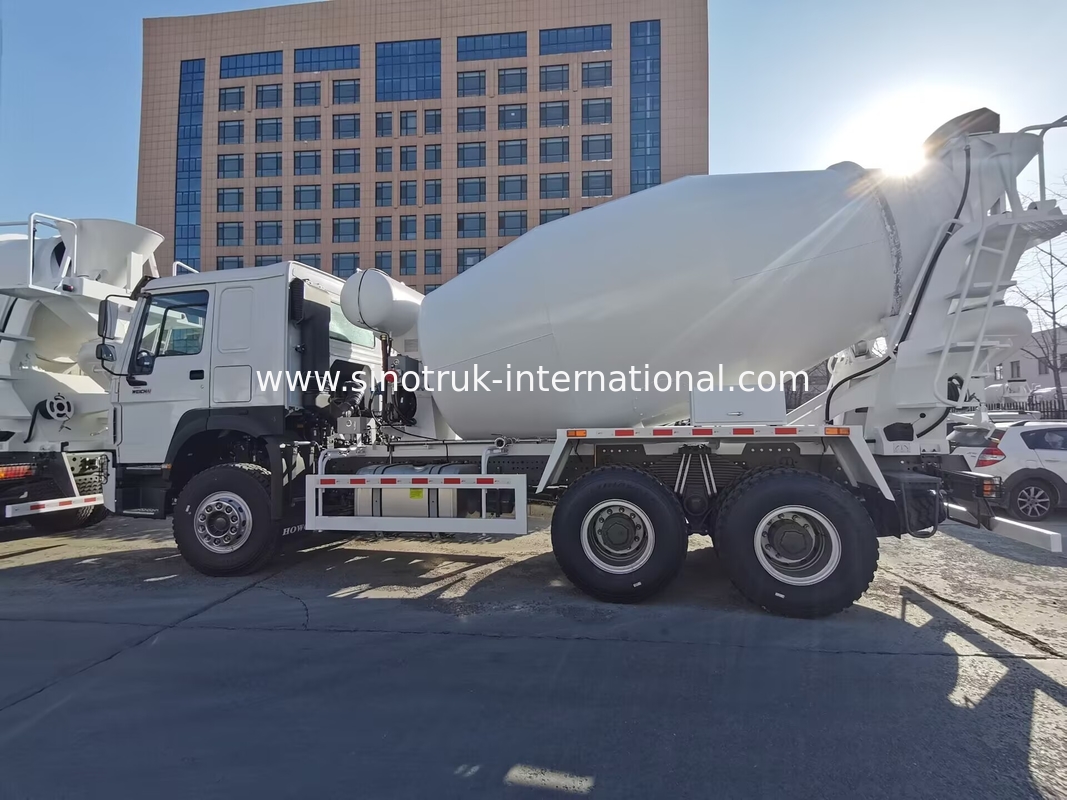

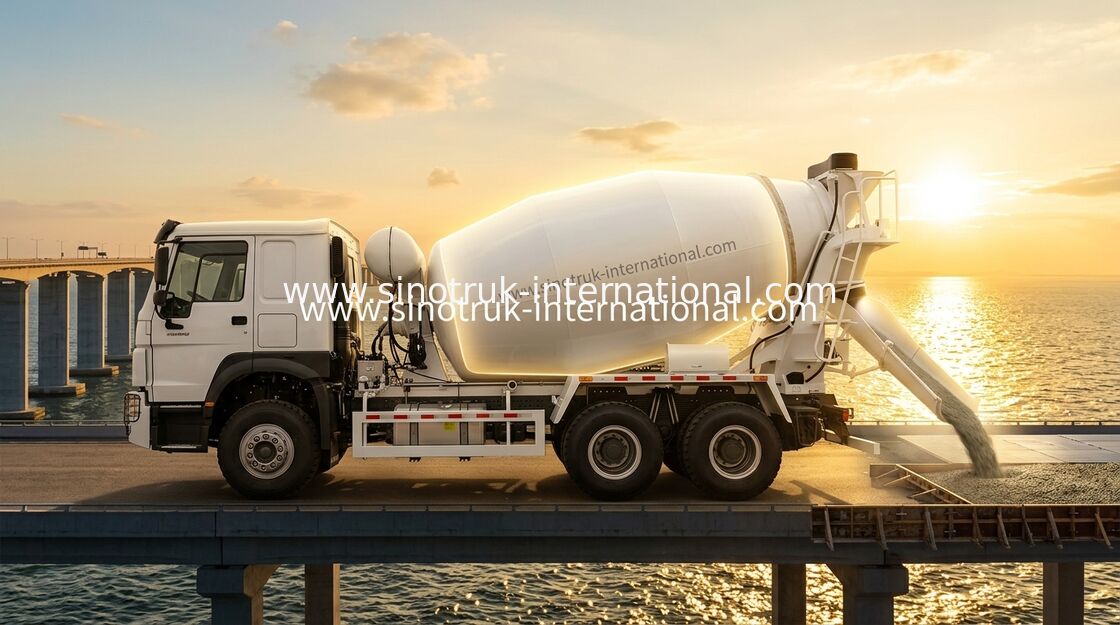

SINOTRUK HOWO 6×4 10wheels Concrete Mixer Truck 400HP High efficiency LHD
Description:
HOWO mixer, suitable for urban construction, highway, railway and other departments. Stirring truck is one of the indispensable important equipment in mechanized construction. The body material is made of special wear-resistant alloy material. The concrete mixing transport uniformity is good. Loading and discharging
Fast speed, low slag discharge rate, reliable hydraulic system, easy to operate, beautiful appearance.
Specification:
| Sinotruk Howo Concrete Mixer Truck 10-20CBM 6 x 4 Euro 2 340Hp Construction | ||||
| Model | ZZ1257N3847W | |||
| Drive Type | 6×4 | |||
| Engine |
|
|||
| Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat) | |||
| Transmission | HW19710(10 forwards & 2 reverses) | |||
| Front Axle | 1×VGD95 ( 9.5 Tons) | |||
| Driving Axle | 2×HC16, 2×16Tons | |||
| Steering | BOSCH or China brand hydraulic steering with power assistance. | |||
| Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|||
| Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire | |||
| Wheel base | 3800+1350(mm) | |||
| Overall dimension | 8075×2600×3000(mm) | |||
| Tank body Capacity | 10-20CBM | |||
| The curb weight | 12650(Kg) | |||
| Gross weight | 31000 kg | |||
| Max. speed | 102km/h | |||
| Color | White, red, green, golden and so on. | |||
Applications:
t’s suitable for agitating and transiting concrete, for construction site, road repairing and some other
infrastructure construction business.
Competitive Advantage:
1) Leading product technology, complete functions, excellent performance, reliable quality, easy to operate.
2) Valve body structure optimization, special mold production, beautiful appearance, concrete mixing uniform, uniform discharge, low residual rate.
3) Imported hydraulic pump, hydraulic motor, reducer.
4) The method of multi-phase three-dimensional mixing with large blades is adopted inside the mixer, which is more in line with the characteristics of Chinese concrete, with fast feed and feed speed and lower residue rate
5) Overall structure optimization, low center of gravity, high operating efficiency.
6) Wide product range, tank capacity 6 ~ 18 cubic meters.
7) Choose a variety of auxiliary devices.
8) The tank material is made of the latest generation of high-strength wear-resistant steel for mixing trucks, and the blades are equipped with wear-resistant strips, which makes the service life longer than that of ordinary tanks
9) Rely on strong technical support and first-class technology to make the truck high quality and more reliable
The price is competitive and cost-effective
11) Fast and efficient spare parts supply, to bring you more convenience
12) Fast delivery time, we can quickly and accurately arrange production according to your needs
13) Professional import and export transaction process to improve customs clearance efficiency
