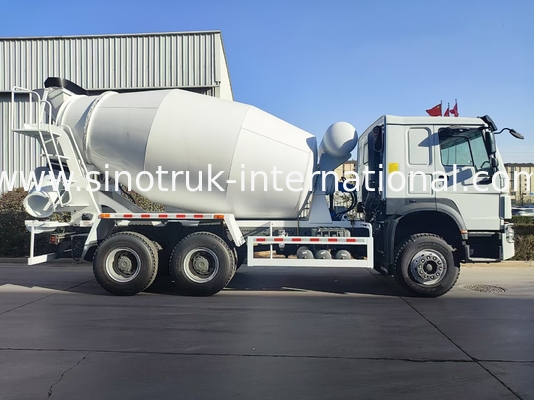

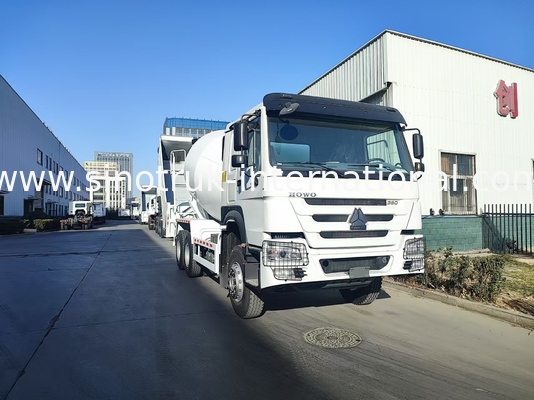

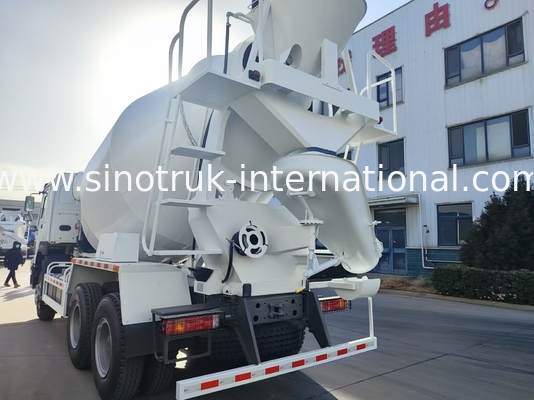

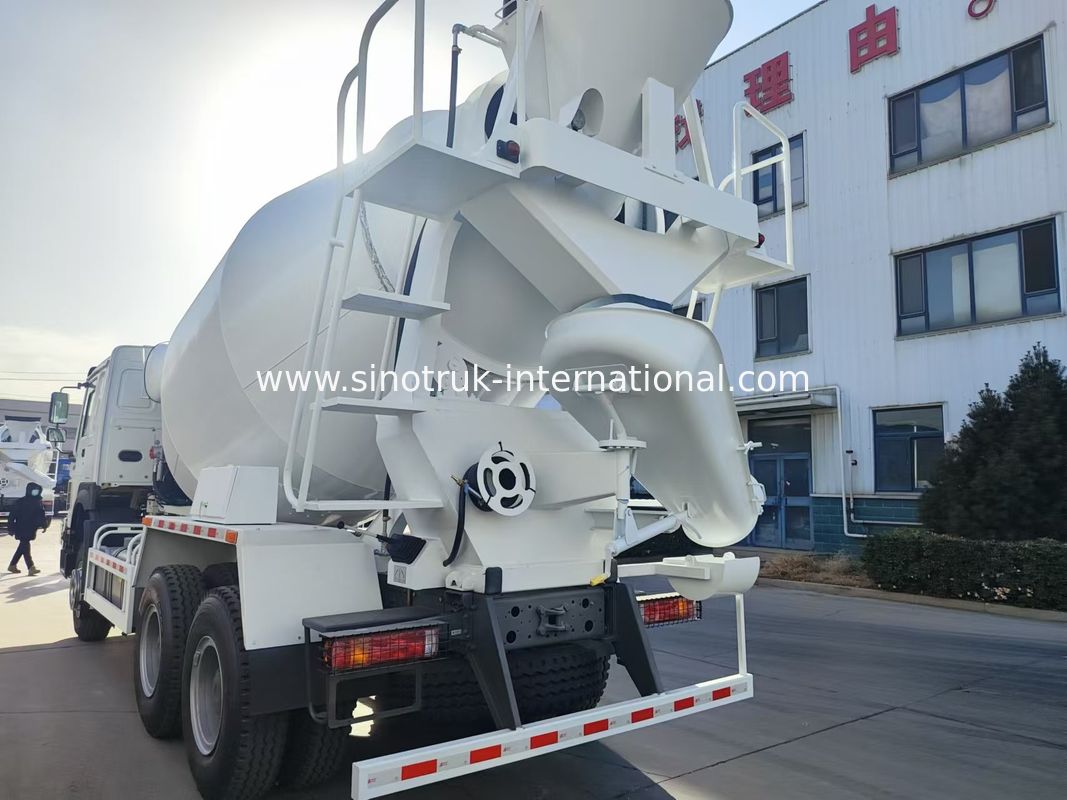

12 Cubic Meters Volumetric Concrete Mixer Truck 380 Horsepower 3 Axle

12 Cubic Meters Volumetric Concrete Mixer Truck 380 Horsepower 3 Axle

  • 12 Cubic Meters Volumetric Concrete Mixer Truck 380 Horsepower 3 Axle
  • 12 Cubic Meters Volumetric Concrete Mixer Truck 380 Horsepower 3 Axle
  • 12 Cubic Meters Volumetric Concrete Mixer Truck 380 Horsepower 3 Axle
  • 12 Cubic Meters Volumetric Concrete Mixer Truck 380 Horsepower 3 Axle
12 Cubic Meters Volumetric Concrete Mixer Truck 380 Horsepower 3 Axle
Product Details:
Place of Origin: China
Brand Name: HOWO
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ1257V3847B1
Payment & Shipping Terms:
Minimum Order Quantity: 1 unite
Price: negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25-30 days after received your advance payment
Payment Terms: T/T, L/C
Supply Ability: 3000 per month
Contact Now
Detailed Product Description
Color: White Axle Number: 3
Engine Horsepower: 380 Tire: 12.00R20
Loading Capacity: 12CBM Model: ZZ1257V3847B1
Highlight:

12 Cubic Meters Concrete Mixer Truck

,

380 Horsepower Concrete Mixer Truck

,

3 Axle Concrete Mixer Truck

Description:



HOWO Mixer Truck,suitable for urban construction,highway,railway,and other departments. Mixer truck is one of indispensable important equipment of the mechanize construction. The body material use special wear-resistant alloy materials.Concrete mixing and transportation with good mixing uniformity. Loading and discharge is
speedly,discharge residual rate is low, hydraulics system reliable,easy to operation and look like beautiful.







Specification:



Sinotruk Howo Concrete Mixer Truck 380HP 6-10CBM 6 X 4 Euro 2 Mixing Plant RHD
Model ZZ1257V3847B1
Drive Type 6×4
Engine
WP10.380E22,380HP( Euro II)
6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine
Displacement : 9.726L
Cabin HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×VGD95 ( 9.5 Tons)
Driving Axle 2×MCX16ZG, 2×16Tons
Steering BOSCH or China brand hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3800+1350(mm)
Overall dimension 8075×2600×3000(mm)
Tank body Capacity 6-10CBM
The curb weight 12650(Kg)
Gross weight 25000 kg
Max. speed 102km/h
Color White, red, green, golden and so on.




Applications:



t’s suitable for agitating and transiting concrete, for construction site, road repairing and some other

infrastructure construction business.



Competitive Advantage:



1) The leading product technology, complete function, excellent performance, reliable quality, easy to

operate.

2) Optimization of body structure, special mold production, beautiful appearance, concrete mixing,

discharge uniformity, low rate of residual.

3) Imported hydraulic pump, hydraulic motor and speed reducer.

4) Uses the high strength steel plate, long service life.

5) Optimization of the whole structure, low center of gravity, high running efficiency.

6) Product range is wide, the tank capacity of 6 to 18 cubic meters.

7) Choose a variety of auxiliary device.

8) Match all concrete mixer truck chassis.

9) Ensure that concrete is not isolated and stratified during transportation, always maintain good workability and construction performance, and can be used directly at the site to ensure the quality of the project.

10) competive price, cost-effective
11) quick and efficient spare parts supply bring you more convenient
12) fast delivery time, we can arange production according to your needs exactly and

quickly

13) pIn the construction of large projects, it can quickly provide sufficient concrete for the construction site, greatly improve the project progress, and reduce the time loss of waiting for materials.12 Cubic Meters Volumetric Concrete Mixer Truck 380 Horsepower 3 Axle 012 Cubic Meters Volumetric Concrete Mixer Truck 380 Horsepower 3 Axle 1
