Name: HOWO 140HP Left-Hand Drive Cargo Truck Chassis with 8-12tons Load Capacity
Brand: SINOTRUK INTERNATIONAL CO., LTD.
SKU: ZZ1167G3815C1
Price: 52,930.00 USD
Availability: InStock

Home Products Light Duty Trucks

HOWO 140HP Left-Hand Drive Cargo Truck Chassis with 8-12tons Load Capacity

Product Details:

Place of Origin:	CHINA
Brand Name:	SINOTRUK
Certification:	ISO/3C/BV/IFA/SGS
Model Number:	ZZ1167G3815C1

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiation
Packaging Details:	Waxing in Bulk ship, Roro ship, Container
Delivery Time:	35 working days
Payment Terms:	T/T,L/C
Supply Ability:	3,000 units per month

Contact Now

Detailed Product Description

Model:	ZZ1167G3815C1	Front Axle:	3.2 Tons
Drive Axle:	8 Tons	Gearbox:	WLY6TS55
Tire:	8.25R20	Load Capacity:	8-12tons

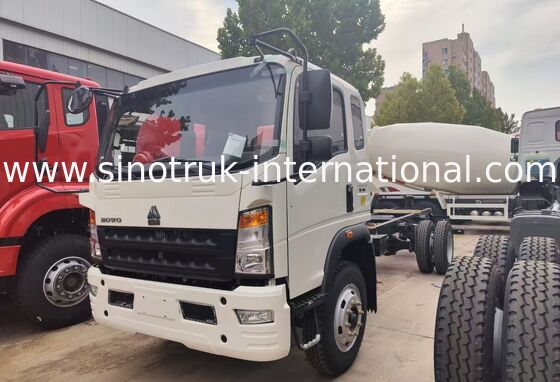

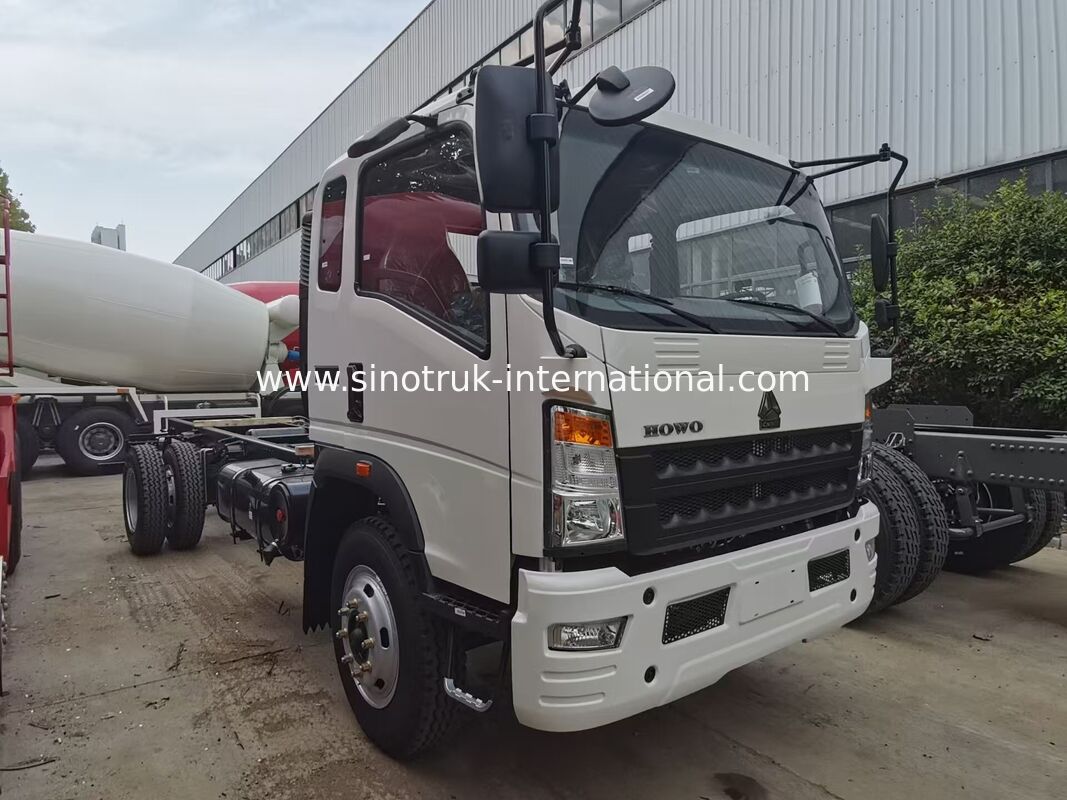

HOWO 140HP Left-Hand Drive Cargo Truck Chassis

Model: ZZ1167G3815C1
This HOWO light commercial cargo chassis is a mature, cost-effective transportation platform specially designed for medium-duty haulage tasks. Perfectly matching the road and fuel conditions of Africa, Djibouti, Guinea, Middle East and other emerging markets. It supports flexible body refitting, including general cargo boxes, water tanks, fuel tanks, refrigerated containers, small dump bodies and other customized upper installations.

Exterior Dimensions & Load Parameters

Specification	Value
Wheelbase	3800mm
Overall Dimensions	6995mm * 2300mm * 2650mm
Curb Weight	5630kg (5.63 tons)
Recommended Payload	8 tons to 12 tons
Standard Cargo Body Length	4850mm

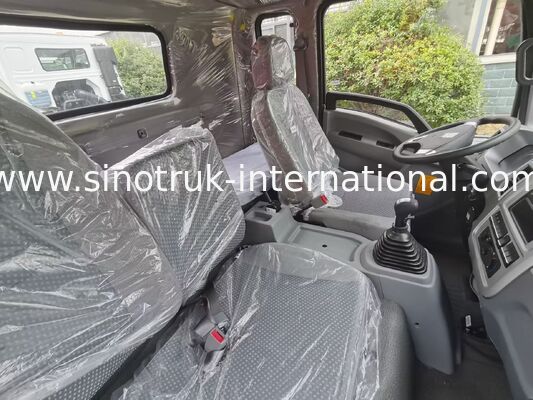

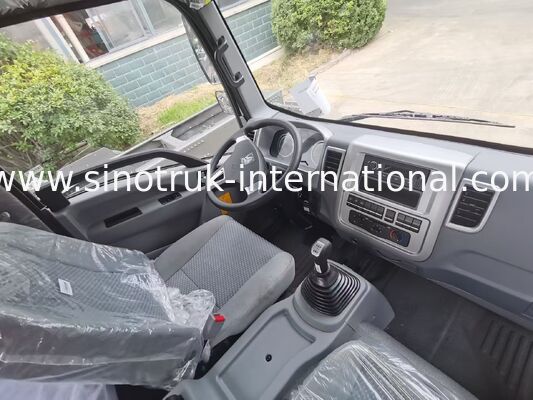

Comfortable Driving Cab

The truck adopts a spacious two-seat cab integrated with a sleeper berth. Factory-fitted air conditioning system is equipped as standard, effectively cooling the cabin under high-temperature tropical climates. The cab structure features solid anti-collision design, offering safe and relaxed driving experience for long-distance continuous runs.

Reliable Power & Transmission Assembly

Engine: YC4E140-33 Yuchai diesel engine, rated power 140HP, complying with Euro 3 emission standard. This engine boasts stable torque output, low failure rate, strong tolerance to low-quality diesel oil, and moderate fuel consumption.
Gearbox: WLY6TS55 manual transmission with 6 forward gears. The gear shifting mechanism is precise and smooth, with high wear resistance and long service life under frequent start-stop transport scenarios.

Heavy-Duty Axle, Suspension & Tire Setup

Front Axle: 3.2 Ton rated load capacity
Rear Drive Axle: 8 Ton rated load capacity with reinforced housing

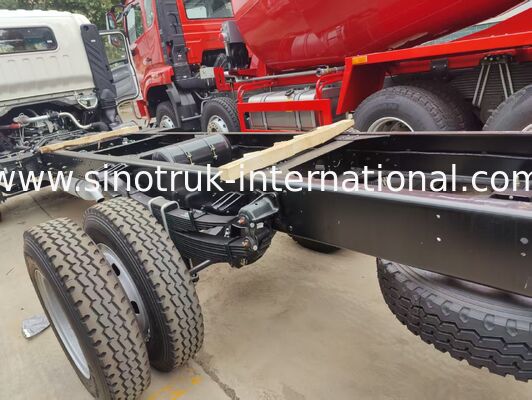

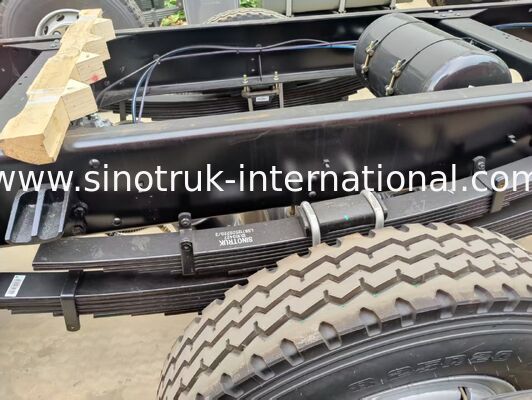

Suspension: 9/12+9B multi-leaf spring structure for excellent shock absorption on bumpy roads
Tires: 8.25R20, 16Pr heavy-duty radial tires with thickened walls for enhanced load bearing and puncture resistance

Auxiliary Standard Configuration

A large-capacity 220-liter steel fuel tank is installed, enabling long-distance travel without frequent refueling stops. All core structural components undergo strict factory quality inspection to guarantee stable performance in harsh working environments, making this chassis a top pick for local freight fleet investors.

Key Advantage: Cost-effective solution with proven reliability in emerging markets, designed for flexible body customization and harsh operating conditions.
