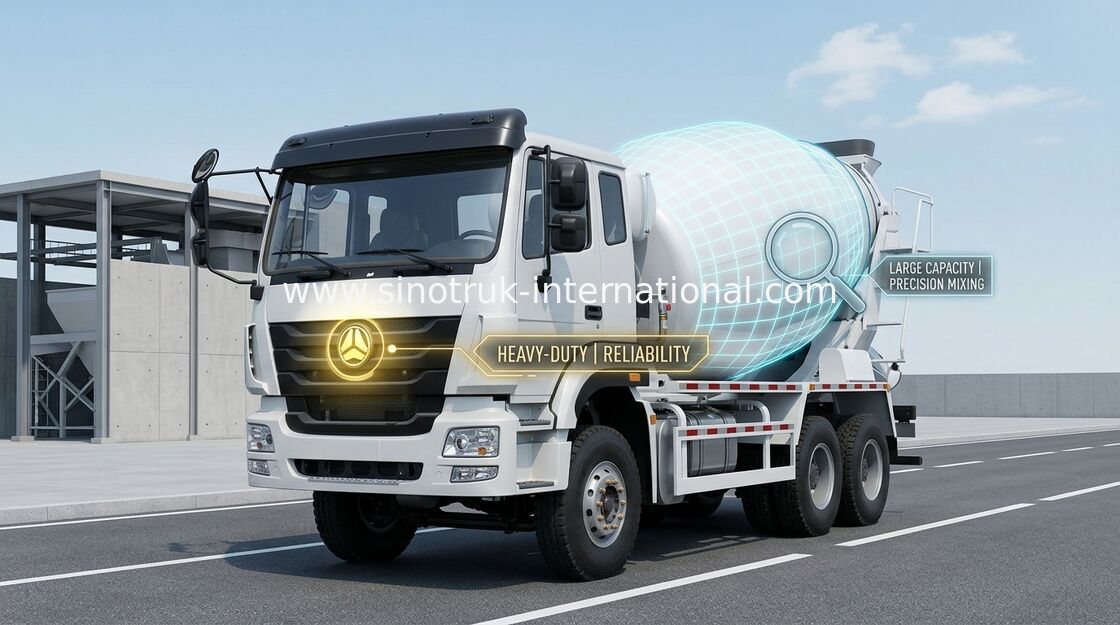

High Efficiency Hydraulic Pump Cement Mixer Truck For Construction Site

High Efficiency Hydraulic Pump Cement Mixer Truck For Construction Site

    • High Efficiency Hydraulic Pump Cement Mixer Truck For Construction Site
    • High Efficiency Hydraulic Pump Cement Mixer Truck For Construction Site
    • High Efficiency Hydraulic Pump Cement Mixer Truck For Construction Site
    • High Efficiency Hydraulic Pump Cement Mixer Truck For Construction Site
  • High Efficiency Hydraulic Pump Cement Mixer Truck For Construction Site

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK HOHAN
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: ZZ5255GJBN3846B1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD49500-USD50000/UNIT)negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 25 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Concrete Mixer Truck Model: ZZ5255GJBN3846B1
    Drive Type: RHD 6X4 Emission Standard: Euro 2
    Engine: WD615.69, 336HP Tank Body Capacity: 10CBM

    Concrete Mixer Truck 10CBM SINOTRUK HOHAN Euro2 336HP 6X4 RHD ZZ5255GJBN3846B1



    Description:



    Concrete Mixer Truck 10CBM SINOTRUK HOHAN Euro2 336HP 6X4 RHD ZZ5255GJBN3846B1

    The Concrete Mixer Truck series of products produced by adopt Germany's proprietary technology.

    Products material requirements, the production process, acceptance criteria, all adopt the technology

    provided by the German standards.



    This products use the imported reducer, motor and hydraulic pump. Dynamic force output by the

    second class chassis full power take off through the shaft power to the hydraulic pump, hydraulic pump

    produces hydraulic energy through tubing to the hydraulic motor, hydraulic motor to convert hydraulic

    energy into kinetic energy and through reducer then reduce and increase twist to the mixing tank, by

    adjusting the (double acting variable) servo controller of hydraulic pump Angle so as to realize

    controlling turning and speed of mixing drum, then to realize the concrete charging, stir and discharging

    operation.





    Specification:



    Concrete Mixer Truck 10CBM SINOTRUK HOHAN Euro2 336HP 6X4 RHD ZZ5255GJBN3846B1

    Model ZZ5255GJBM3846B1
    Drive Type 6×4
    Engine

    WD615.69 , 336HP( Euro II)

    6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

    Displacement : 9.726L

    Cabin H16 lengthened cab(with one sleeper, air-conditioner and new-style seat)
    Transmission HW19710(10 forwards & 2 reverses)
    Front Axle 1×HF9 ( 9 Tons)
    Driving Axle HC16, 16Tons
    Steering ZF8098 hydraulic steering with power assistance.
    Clutch

    Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air

    assistance

    Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
    Wheel base 3825+1350(mm)
    Overall dimension 9090×2496×3950(mm)
    Tank body Capacity

    10CBM

    The curb weight 13010(Kg)
    Gross weight 25000 kg
    Max. speed 102km/h
    Color White, red, green, golden and so on.




    Applications:



    t’s suitable for agitating and transiting concrete, for construction site, road repairing and some other

     infrastructure construction business.



    Competitive Advantage:



    1) The leading product technology, complete function, excellent performance, reliable quality, easy to

       operate.

    2) Optimization of body structure, special mold production, beautiful appearance, concrete mixing,

        discharge uniformity, low rate of residual.

    3) Imported hydraulic pump, hydraulic motor and speed reducer.

    4) Uses the high strength steel plate, long service life.

    5) Optimization of the whole structure, low center of gravity, high running efficiency.

    6) Product range is wide, the tank capacity of 6 to 18 cubic meters.

    7) Choose a variety of auxiliary device.

    8) Match all concrete mixer truck chassis.

    9) based on strong technical support and top level technology make the trucks with high

    quality and more reliable
    10) competive price, cost-effective
    11) quick and efficient spare parts supply bring you more convenient
    12) fast delivery time, we can arange production according to your needs exactly and

         quickly

    13) professional import and export dealing precedure, make customs clearance more high efficiency
