Professional 4×2 Garbage Collection Truck 10-12 CBM Rubbish Bin Truck

Professional 4×2 Garbage Collection Truck 10-12 CBM Rubbish Bin Truck

  • Professional 4×2 Garbage Collection Truck 10-12 CBM Rubbish Bin Truck
  • Professional 4×2 Garbage Collection Truck 10-12 CBM Rubbish Bin Truck
  • Professional 4×2 Garbage Collection Truck 10-12 CBM Rubbish Bin Truck
  • Professional 4×2 Garbage Collection Truck 10-12 CBM Rubbish Bin Truck
Professional 4×2 Garbage Collection Truck 10-12 CBM Rubbish Bin Truck
Product Details:
Place of Origin: China
Brand Name: SINOTRUK Golden Prince
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ3161M4311
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD49000-USD49500/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2,000units per month
Contact Now
Detailed Product Description
Product Name: Compressed Garbage Collection Truck Model: ZZ3167M4611
Drive Type: LHD 4X2 Emission Standard: Euro 2
Engine: WD615.62, 266HP Tank Body Capacity: 10-12CBM
High Light:

waste management garbage truck

,

rubbish removal trucks



Professional 4×2 Garbage Collection Truck 10-12 CBM Rubbish Bin Truck 0

Compressed Garbage Collection Truck SINOTRUK 10-12CBM LHD 4X2 ZZ3161M4311



Description:



Compressed Garbage Collection Truck SINOTRUK 10-12CBM LHD 4X2 ZZ3161M4311

Compressed garbage truck, connecting the main compartment with a collection box, with the

most reasonable angle, blade type main launch board, has a special parabolic surface

optimal loading angle formed by compressed garbage collecting box filling mechanism of

30T above the rolling force, with 10T loading pressure in the pressure compartment, at

the same time, launched in 5T has always been to squeeze pressure, squeeze compressed

garbage, is conducive to the compressed garbage from the main carriage. Full volume

utilization rate can reach more than 97%.



The vehicle function is complete, easy to operate, garbage loading, the hydraulic drive

and electronic program controller control, accurate, reliable performance, performance

and reliable. The garbage filling body, can automatically continuous work, can also be

semi automatic one-way work, or manual operation, and return to the function.



The vehicle hydraulic drive, the maximum working pressure of 210bar, the system working

pressure 180bar, rolling force on a garbage collection box is 30 tons, by collecting box

into the main chamber when the loading capacity is 10 tons, the main launch plate on the

extrusion pressure of compressed garbage, keeping 5 tons of garbage unloading force

launched the 10 tons, the compression loading mechanism of each loading compression cycle

time is 25 seconds, the launch cycle time in shirk refuse, no more than 45 seconds.





Specification:



Compressed Garbage Collection Truck SINOTRUK 10-12CBM LHD 4X2 ZZ3161M4311

Chassis Model

ZZ3167M4611

Drive Type

4×2

Engine

WD615.62, Euro2, 266HP

Cabin

L2000 lengthened cab(with one sleeper, air-conditioner and two new-style seat)

Transmission

HW13710(10 forwards & 2 reverses)

Front Axle

HF7 (1X7Tons)

Driving Axle

HC16 (1X16Tons)

Clutch

hydraulically operating with air assistance

Rim/ Tire

11.00R20 Radial tyre

Wheel base

4300(mm)

Capacity of Cargo body

10-12CBM

Time of cycle

≦25s

Time of discharge

≦40s

Max compression

≧35000kgs

Overall dimension

8340×2490×3260(mm)

The curb weight

9500(Kg)

Gross weight

16000 kg

Max. speed

95km/h

Color

White, red, green, golden and so on.


Applications:



Which is mainly used for municipal solid waste (MSW), commercial waste, and are used for non-toxic,

non corrosive and non industrial radioactive waste collection and transportation.



Competitive Advantage:



1) The vehicle function is complete, easy to operate, big garbage loading capacity

2) the hydraulic drive and electronic program controller control is more accurate and with reliable performance

3) The optimized hydraulic control system helps to avoid wrong operation, it has higher safety and running

efficiency.

4) excellent appearance of cabin, safety, reliable
5) low fuel consumption
6) with all kinds of truck model, which can fulfill your requirement
7) the key parts adopt the world's top technology products
8) based on strong technical support and top level technology make the trucks with high quality and more

reliable
9) competitive price, cost-effective
10) quick and efficient spare parts supply bring you more convenient

11) fast delivery time, we can arrange production according to your needs exactly and quickly

12) professional import and export dealing procedure, make customs clearance more high efficiency

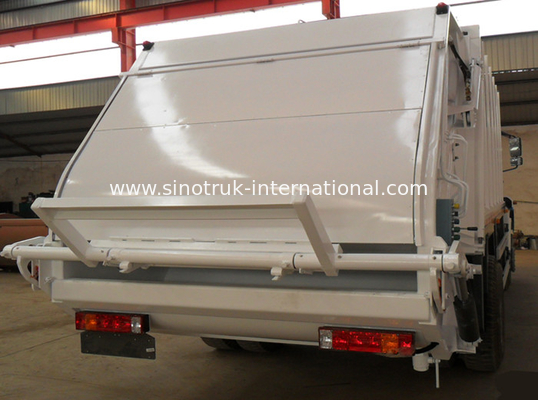

Professional 4×2 Garbage Collection Truck 10-12 CBM Rubbish Bin Truck 1

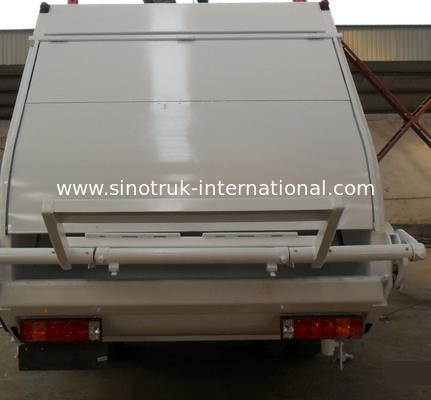

Professional 4×2 Garbage Collection Truck 10-12 CBM Rubbish Bin Truck 2
