High Efficiency 25CBM Water Tank Truck With High And Low Level Spraying

High Efficiency 25CBM Water Tank Truck With High And Low Level Spraying

    • High Efficiency 25CBM Water Tank Truck With High And Low Level Spraying
    • High Efficiency 25CBM Water Tank Truck With High And Low Level Spraying
    • High Efficiency 25CBM Water Tank Truck With High And Low Level Spraying
    • High Efficiency 25CBM Water Tank Truck With High And Low Level Spraying
  • High Efficiency 25CBM Water Tank Truck With High And Low Level Spraying

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK HOWO
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: ZZ1257N4641W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD41000-USD41500/UNIT)negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 25 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Water Tank Truck Model: ZZ1257N4641W
    Drive Type: LHD 6X4 Emission Standard: Euro 2
    Engine: WD615.87, 290HP Tank Body Capacity: 15-20CBM

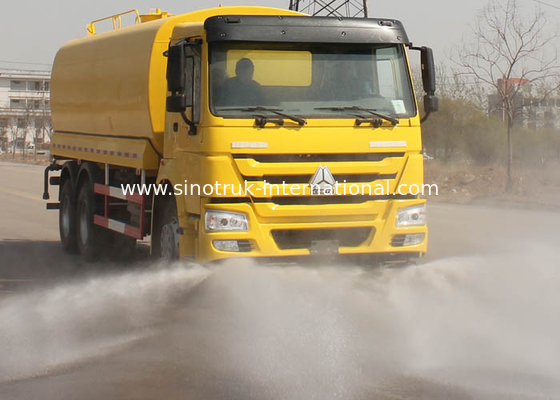

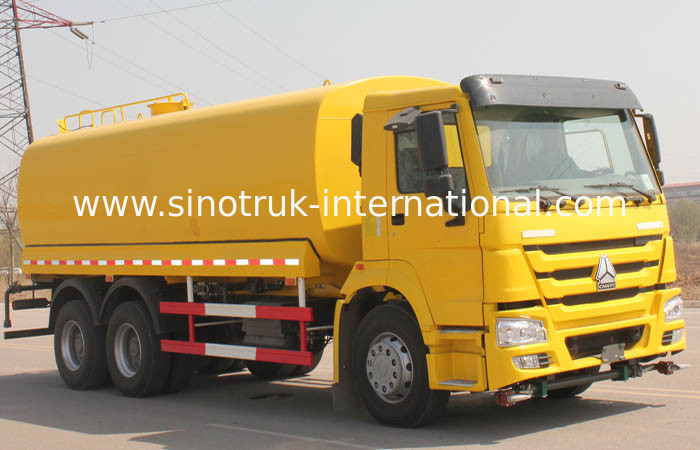

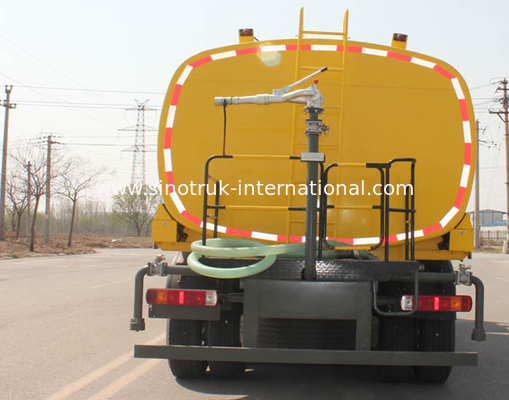

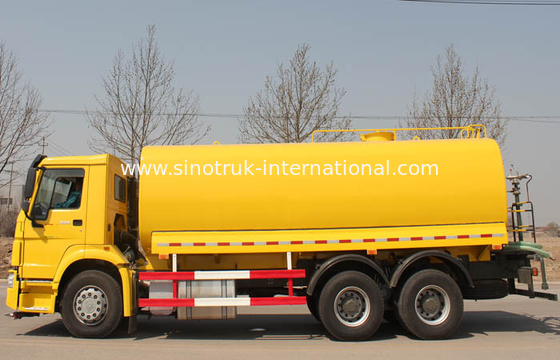

    Water Tank Truck SINOTRUK HOWO 25CBM for Landscape Engineering or Mining area



    Description:



    Water Tank Truck SINOTRUK HOWO 25CBM for Landscape Engineering or Mining area

    Our company production of Water Tank Truck have the character of high pressure, spraying

    range wide, good flushing effect and so on. The flushing head universal regulation, meet

    the arbitrary angle and the combination of the washing operation, the system can achieve

    aerodynamic control and manual control of the two kinds of functions. Tank external

    sandblasting, tank internal anti-corrosion treatment, outer surface of the senior

    polyurethane topcoat, beautiful appearance. Optional mounted front and rear high jet,

    with water diffusion function, a level 360 degree turn, also can be up and down 150

    degree tilt. Optional medicine small flow pump, spraying configuration reel awakened

    garden flowers and trees to kill the insects.





    Specification:



    Water Tank Truck SINOTRUK HOWO 25CBM for Landscape Engineering or Mining area

    Chassis Model

    ZZ1257N4641W

    Drive Type

    6×4

    Engine

    WD615.69, 336HP

    Cabin

    HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat)

    Transmission

    HW15710(10 forwards & 2 reverses)

    Front Axle

    HF9(1X9 Tons)

    Driving Axle

    HC16(1X16 Tons)

    Clutch

    hydraulically operating with air assistance

    Rim/ Tire

    11.00R20, Radial tyre

    Wheel base

    4325+1350(mm)

    Capacity of tank body

    21-25CBM

    Spraying width of travel

    14.8m

    Spraying height

    ≧30m

    Water sucking depth

    ≧4m

    Overall dimension

    9920×2496×3550mm

    The curb weight

    13180(Kg)

    Gross weight

    25000 kg

    Max. speed

    95km/h

    Color

    White, red, green, golden and so on.


    Applications:



    The Water tank truck is mainly used for construction of mines and other enterprises, road flushing and

    dust covering in large-medium-scale cities.



    Competitive Advantage:



    1) High pressure, wide range of spraying good flushing effect

    2) Blunt head universal adjustment, meet the arbitrary Angle and the combination of the flush operation

    3) Pneumatic control and manual control system can realize two functions

    4) External sandblasting processing of tank, internal anti-corrosion treatment,        Outside surface adopts advanced polyurethane paint, beautiful appearance

    5) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation,

    150 degree tilt up and down. Options small flow pump, spraying reel to wake insecticidal garden trees

    flowers and plants

    6) with all kinds of truck model, which can fulfill your requirement
    7) the key parts adopt the world's top technology products
    8) based on strong technical support and top level technology make the trucks with high quality and

    more reliable
    9) competitive price, cost-effective
    10) quick and efficient spare parts supply bring you more convenient

    11) fast delivery time, we can arrange production according to your needs exactly and quickly

    12) professional import and export dealing procedure, make customs clearance more high efficiency
