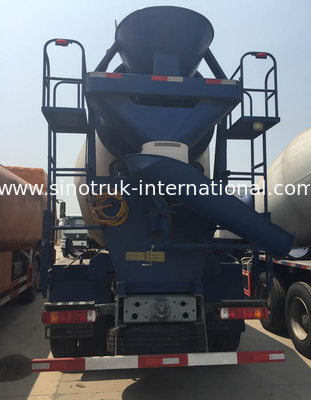

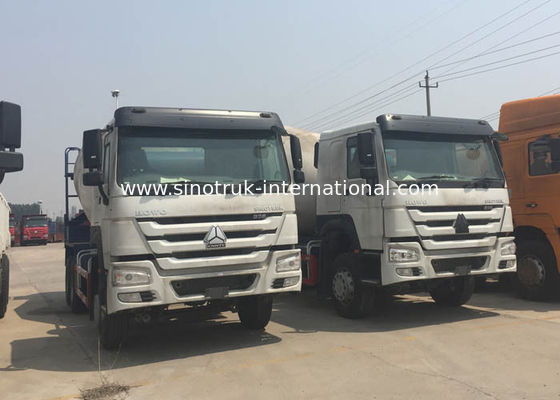

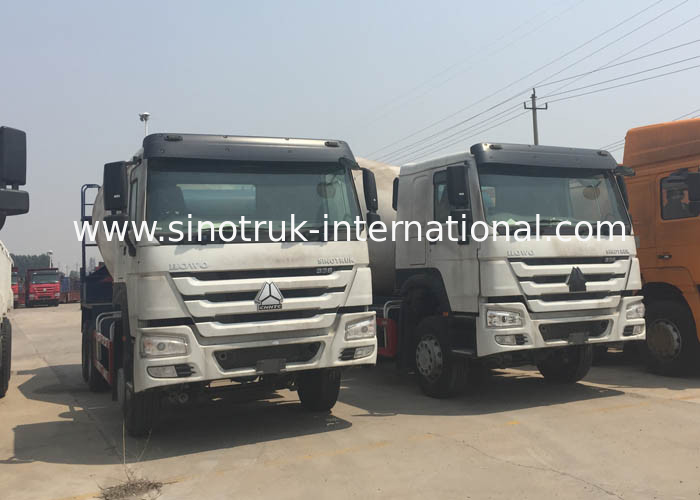

ZZ5257GJBM3841W Mobile Concrete Mixer Truck 10CBM WD615.87 290HP Engine

ZZ5257GJBM3841W Mobile Concrete Mixer Truck 10CBM WD615.87 290HP Engine

  • ZZ5257GJBM3841W Mobile Concrete Mixer Truck 10CBM WD615.87 290HP Engine
  • ZZ5257GJBM3841W Mobile Concrete Mixer Truck 10CBM WD615.87 290HP Engine
  • ZZ5257GJBM3841W Mobile Concrete Mixer Truck 10CBM WD615.87 290HP Engine
  • ZZ5257GJBM3841W Mobile Concrete Mixer Truck 10CBM WD615.87 290HP Engine
ZZ5257GJBM3841W Mobile Concrete Mixer Truck 10CBM WD615.87 290HP Engine
Product Details:
Place of Origin: China
Brand Name: SINOTRUK HOWO
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ5257GJBM3841W
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD47500-USD48000/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2,000units per month
Contact Now
Detailed Product Description
Product Name: Concrete Mixer Truck Model: ZZ5257GJBM3847W
Drive Type: LHD 6X4 Emission Standard: Euro 2
Engine: WD615.87, 290HP Tank Body Capacity: 10CBM
High Light:

Mobile Concrete Mixer Truck

,

truck mounted concrete mixer

,

290HP Engine Concrete Mixer Truck

Description:



Concrete Mixer Truck SINOTRUK HOWO 10CBM ZZ5257GJBM3841W Italy hydraulic system

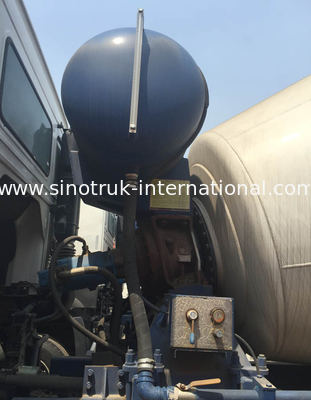

Our mixer truck using import hydraulic system, such as America Pump and motor, Italy brand reducer.

easy to repair and maintainance.



The HOWO Concrete Mixer Truck adopts HOWO chassis, equipped with HW76 single berth cabin

or HW70 cab, exclusively for export is equipped with European 2 or Electronic common

rail, EU and Euro IV SINOTRUK independent research and development of engine, standard

German imported ZF steering, HOWO 10 and 12 gear box,HF9 tons of front axle, HC16 or AC16

rear axle, carrying capacity great to meet the needs of customers.

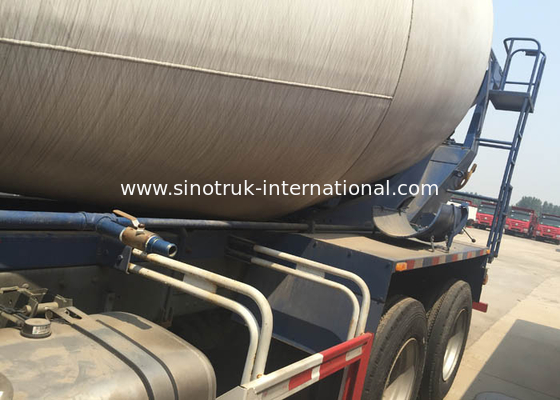

The mixing tank body is made of high strength wear-resistant steel plate, cage type mold

are integrally formed to ensure that the flange, sections of the cylinder body and

rolling the coaxial degree and circle beat, to ensure smooth operation of the vehicle.

The tank body adopts the double helix blade, moderate density and taper before the

gateball symmetric stirring plate and tank mouth at the installation of blades and a

material guide vanes, resorted to materials to be more even faster.





Specification:



Concrete Mixer Truck SINOTRUK HOWO 10CBM ZZ5257GJBM3841W Italy hydraulic system

Model ZZ5257GJBM3647W
Drive Type 6×4
Engine

WD615.87 , 290HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

Displacement : 9.726L

Cabin HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8098 hydraulic steering with power assistance.
Clutch Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance
Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3825+1350(mm)
Overall dimension 8604×2496×3950(mm)
Tank body Capacity

10CBM

The curb weight 12800(Kg)
Gross weight 25000 kg
Max. speed 102km/h
Color White, red, green, golden and so on.




Applications:



t’s suitable for agitating and transport concrete, for construction site, road repairing and some other

 infrastructure construction business.



Competitive Advantage:



1)competive price, cost-effective
2)quick and efficient spare parts supply bring you more convenient
3)fast delivery time, we can arange production according to your needs exactly and

quickly

4) professional import and export dealing precedure, make customs clearance more high efficiency

5)The leading product technology, complete function, excellent performance, reliable quality, easy to

   operate.

6)Optimization of body structure, special mold production, beautiful appearance, concrete mixing,

    discharge uniformity, low rate of residual.

7)Imported hydraulic pump, hydraulic motor and speed reducer.

8)Uses the high strength steel plate, long service life.

9)Optimization of the whole structure, low center of gravity, high running efficiency.

10)Product range is wide, the tank capacity of 6 to 18 cubic meters.

11)Choose a variety of auxiliary device.

12)Match all concrete mixer truck chassis.

13)based on strong technical support and top level technology make the trucks with high

quality and more reliable




ZZ5257GJBM3841W Mobile Concrete Mixer Truck 10CBM WD615.87 290HP Engine 0ZZ5257GJBM3841W Mobile Concrete Mixer Truck 10CBM WD615.87 290HP Engine 1
