Sanitation Enterprise Sewage Suction Truck 8-12CBM RHD 4X2 , Liquid Waste Trucks

    • Sanitation Enterprise Sewage Suction Truck 8-12CBM RHD 4X2 , Liquid Waste Trucks
    • Sanitation Enterprise Sewage Suction Truck 8-12CBM RHD 4X2 , Liquid Waste Trucks
    • Sanitation Enterprise Sewage Suction Truck 8-12CBM RHD 4X2 , Liquid Waste Trucks
    • Sanitation Enterprise Sewage Suction Truck 8-12CBM RHD 4X2 , Liquid Waste Trucks
  • Sanitation Enterprise Sewage Suction Truck 8-12CBM RHD 4X2 , Liquid Waste Trucks

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK HOWO
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: ZZ1167M4611W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD45800-USD46000/UNIT)negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 25 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Sewage Suction Truck Model: ZZ1167M4611W
    Drive Type: RHD 4X2 Emission Standard: Euro 2
    Engine: WD615.62, 266HP Tank Body Capacity: 8-12CBM

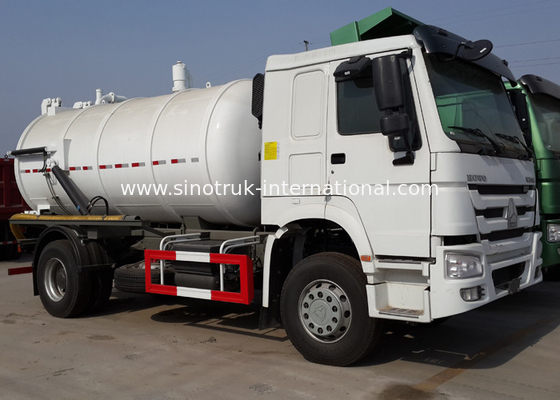

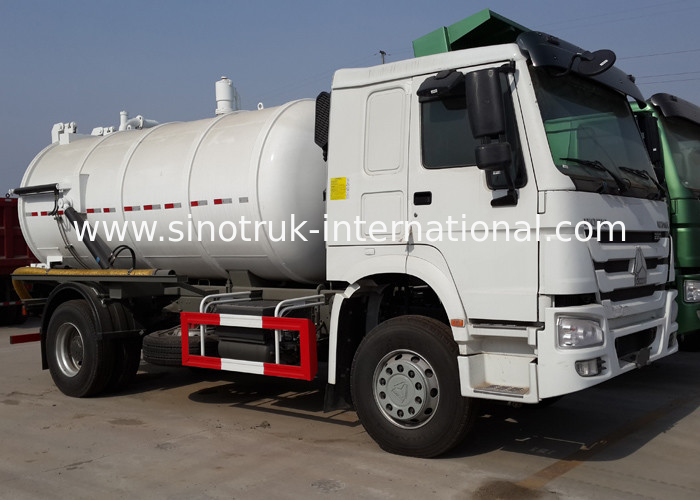

    Sewage Suction Truck SINOTRUK HOWO for Sanitation Enterprise 8-12CBM RHD 4X2



    Description:



    Sewage Suction Truck SINOTRUK HOWO for Sanitation Enterprise 8-12CBM RHD 4X2

    The introduction of Germany advanced manufacturing technology, with rising underground

    sewage pipes,the collection and transportation of sludge, city life waste and building

    operations such as muddy water  in liquid waste and other functions.



    Which can choose all kinds of Brand, Such as HOWO, Golden Prince, HOWO A7, Hohan, Engine

    power have 266HP, 290HP, 336HP, 371HP and so on.



    Suction sewage truck is sanitation vehicles which is used for collecting and transporting

    sewage and  sludge in municipal, enviromental sanitation and large property managerment

    company ,to avoid  secondary pollution ,with vacuum suction ,pressure discharge function

    efficient and time saving vacuum pump,valve and others are imported products.





    Specification:



    Sewage Suction Truck SINOTRUK HOWO for Sanitation Enterprise 8-12CBM RHD 4X2

    Chassis Model

    ZZ1167M4611W

    Drive Type

    4×2

    Engine

    WD615.62, 266HP

    Cabin

    HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat)

    Transmission

    HW15710(10 forwards & 2 reverses)

    Front Axle

    HF7 (1X7Tons)

    Driving Axle

    HC16(1X16Tons)

    Clutch

    hydraulically operating with air assistance

    Rim/ Tire

    11.00R20

    Wheel base

    4600(mm)

    Capacity of tank body

    8-12CBM

    Diameter of suction tube

    Φ100mm

    Suction depth

    ≥ 8 m

    Vacuum pump

    type: Vane pump

    Pumping speed: 318 m3/h

    Rated speed: 1300rpm

    Overall dimension

    7128×2462×3175mm

    The curb weight

    8010(Kg)

    Gross weight

    16000 kg

    Max. speed

    95km/h

    Color

    White, red, green, golden and so on.


    Applications:



    Can be widely used in the collection of urban rain wells, inspection wells and all kinds of ditches within

    the sludge, sewage or oil chemical sewage tank sediment suction, shipment and discharge.



    Competitive Advantage:

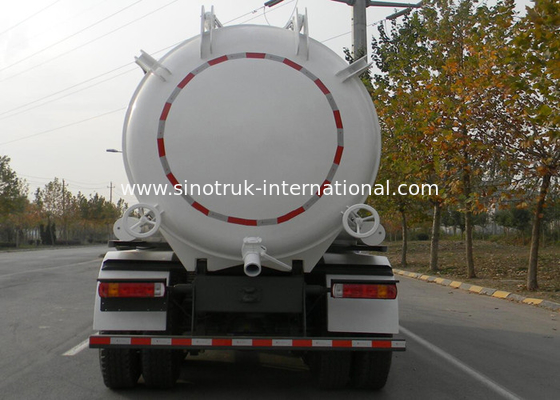

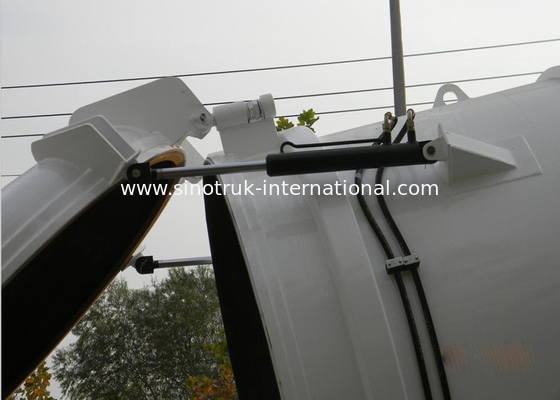

    1) Our company produces the truck has the function of opening rear door by hydraulic

    system, the opening angle of 60 degrees. The hand wheel lock, also optional automatic

    hydraulic lock. The special seal, tightness is high reliability. The arrangement of

    vacuum pump is more flexible, in accordance with the optimization of the vacuum pipeline

    installation, but also for the hydraulic drive the automatic control system brings

    convenience.
    2) The optimized hydraulic control system helps to avoid wrong operation, it has higher

    safety and running efficiency.

    3) Including chassis, power takeoff, transmission shaft, vacuum suction pump, pressure

    tank, hydraulic parts, pipe system, vacuum pressure gauge, waste composition window,

    washing device, vehicle configuration for high power vacuum suction pump and the quality

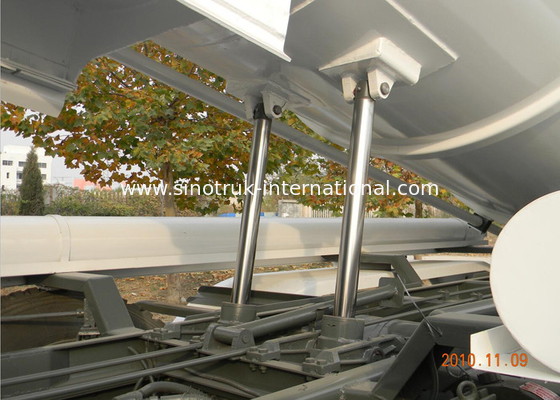

    of the hydraulic system, the tank head once pressed, the tank rear door can open and dump

    by two cylinder.

    4) excellent appearance of cabin, safety, reliable
    5) low fuel consumption
    6) with all kinds of truck model, which can fulfill your requirement
    7) the key parts adopt the world's top technology products
    8) based on strong technical support and top level technology make the trucks with high

    quality and more reliable
    9) competitive price, cost-effective
    10) quick and efficient spare parts supply bring you more convenient
    11) fast delivery time, we can arrange production according to your needs exactly and

    quickly
    12) professional import and export dealing procedure, make customs clearance more high

    efficiency



    Sanitation Enterprise Sewage Suction Truck 8-12CBM RHD 4X2 , Liquid Waste TrucksSanitation Enterprise Sewage Suction Truck 8-12CBM RHD 4X2 , Liquid Waste Trucks
