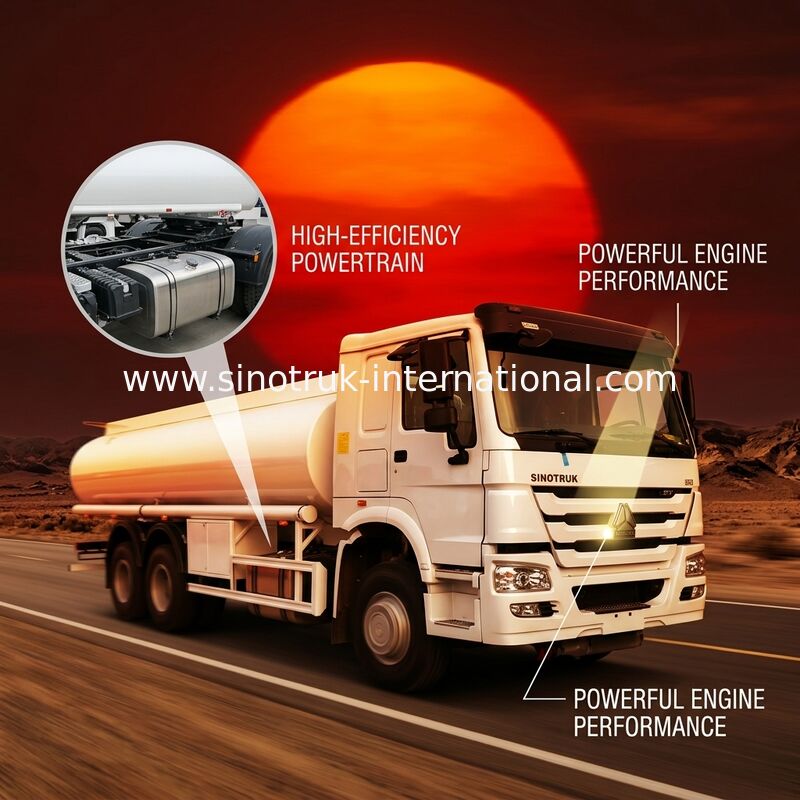

SINOTRUK HOWO Fuel Tank Truck 20 Tons , 6X4 LHD Euro2 290HP Mobile Fuel Trucks

SINOTRUK HOWO Fuel Tank Truck 20 Tons , 6X4 LHD Euro2 290HP Mobile Fuel Trucks

    • SINOTRUK HOWO Fuel Tank Truck 20 Tons , 6X4 LHD Euro2 290HP Mobile Fuel Trucks
    • SINOTRUK HOWO Fuel Tank Truck 20 Tons , 6X4 LHD Euro2 290HP Mobile Fuel Trucks
    • SINOTRUK HOWO Fuel Tank Truck 20 Tons , 6X4 LHD Euro2 290HP Mobile Fuel Trucks
    • SINOTRUK HOWO Fuel Tank Truck 20 Tons , 6X4 LHD Euro2 290HP Mobile Fuel Trucks
  • SINOTRUK HOWO Fuel Tank Truck 20 Tons , 6X4 LHD Euro2 290HP Mobile Fuel Trucks

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK HOWO
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: ZZ1257M4341W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD41000-USD41500/UNIT)negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 25 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Oil Tank Truck Model: ZZ1257M4341W
    Drive Type: LHD 6X4 Emission Standard: Euro 2
    Engine: WD615.87, 290HP Tank Body Capacity: 16-20CBM

    SINOTRUK HOWO Fuel Tank Truck 20 Tons , 6X4 LHD Euro2 290HP Mobile Fuel Trucks



    Description:



    SINOTRUK HOWO Fuel Tank Truck 20 Tons , 6X4 LHD Euro2 290HP Mobile Fuel Trucks

    The Oil Tank Truck is also called mobile fuel trucks, computer refueling vehicle, oil

    tanker, tanker loading oil, pulling oil, oil truck, edible oil transport vehicle, mainly

    for oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil)

    transportation and storage.



    According to a variety of gas or oil, and the use of

    different environment with the oil, pump oil, a variety of oil equipment, put the

    function. Tanker special part is composed of a tank, PTO, drive shaft, gear pump,

    pipeline system components. Pipes system is composed of an oil pump, three through four

    ball valve, two-way valve. Filter pipe.





    Specification:



    Oil Tank Truck SINOTRUK HOWO 20Tons for Oil Transportation 6X4 LHD Euro2 290HP

    Chassis Model

    ZZ1257M4341W

    Drive Type

    6×4

    Engine

    WD615.87, 290HP

    Cabin

    HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat)

    Transmission

    HW15710(10 forwards & 2 reverses)

    Front Axle

    HF9(1X9 Tons)

    Driving Axle

    HC16(1X16 Tons)

    Clutch

    hydraulically operating with air assistance

    Rim/ Tire

    11.00R20, Radial tyre

    Wheel base

    4400+1350(mm)

    Capacity of tank body

    16-20CBM

    Thickness of tank body

    5mm,With 5 cabin

    Basic setup

    Gear oil pump, flow meter, flash hider, fire extinguisher

    Overall dimension

    9200×2500×3150mm

    The curb weight

    11940(Kg)

    Gross weight

    25000 kg

    Max. speed

    95km/h

    Color

    White, red, green, golden and so on.


    Applications:



    The Oil tank truck is mainly used for oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil)

    transportation and storage.



    Competitive Advantage:



    1) Divided into different oil products, chemicals, food, as liquid food truck, chemical liquid truck,

    insulation liquid vehicles, dangerous goods transport vehicles, the asphalt transportation vehicle

    2) External sandblasting processing of tank, internal anti-corrosion treatment, Outside surface adopts advanced polyurethane paint, beautiful appearance

    3) Our company produces the Oil tank truck with advanced butt welding technology, after the forming of  the tank high pressure gas leak detection, the tank has a high intensity, stable center of gravity, safe  and stable vehicle characteristics;

    4) Shot blasting pre treatment process after welding tank, rust, paint adopts the advanced baking  technology, durable and beautiful appearance. Independent sub positions,

    5) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation,

    150 degree tilt up and down. Options small flow pump, spraying reel to wake insecticidal garden trees

     flowers and  plants

    6) with all kinds of truck model, which can fulfill your requirement
    7) the key parts adopt the world's top technology products
    8) based on strong technical support and top level technology make the trucks with high quality and

    more reliable
    9) competitive price, cost-effective
    10) quick and efficient spare parts supply bring you more convenient

    11) fast delivery time, we can arrange production according to your needs exactly and quickly

    12) professional import and export dealing procedure, make customs clearance more high efficiency



    SINOTRUK HOWO Fuel Tank Truck 20 Tons , 6X4 LHD Euro2 290HP Mobile Fuel TrucksSINOTRUK HOWO Fuel Tank Truck 20 Tons , 6X4 LHD Euro2 290HP Mobile Fuel Trucks
