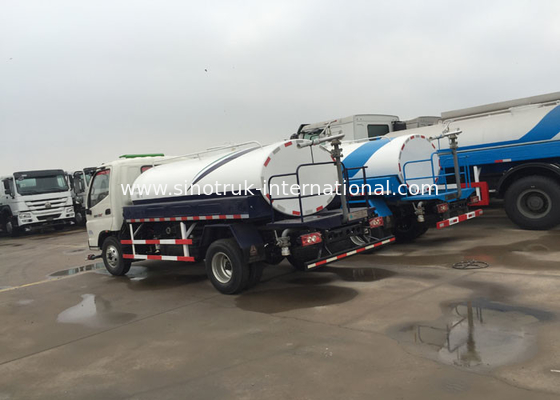

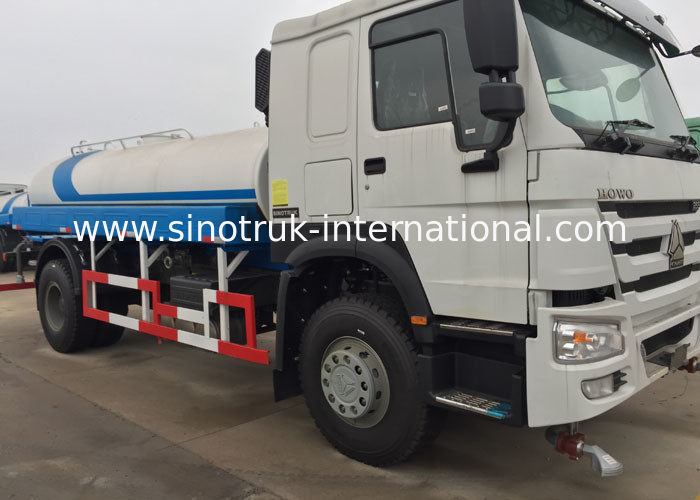

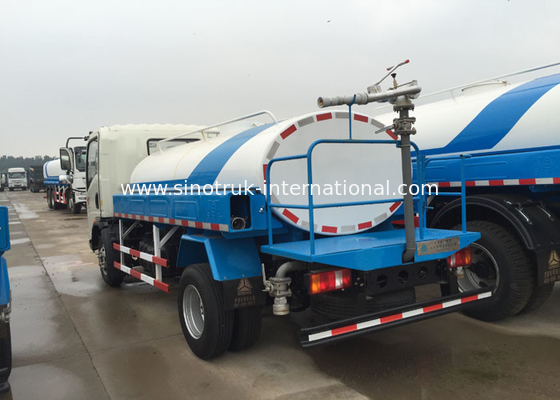

SINOTRUK HOWO Construction Water Tank Truck 10CBM With 360 Degree Rotation Giant

SINOTRUK HOWO Construction Water Tank Truck 10CBM With 360 Degree Rotation Giant

  • SINOTRUK HOWO Construction Water Tank Truck 10CBM With 360 Degree Rotation Giant
  • SINOTRUK HOWO Construction Water Tank Truck 10CBM With 360 Degree Rotation Giant
  • SINOTRUK HOWO Construction Water Tank Truck 10CBM With 360 Degree Rotation Giant
SINOTRUK HOWO Construction Water Tank Truck 10CBM With 360 Degree Rotation Giant
Product Details:
Place of Origin: China
Brand Name: SINOTRUK HOWO
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ1167M4611W
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD36000-USD36500/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2,000units per month
Contact Now
Detailed Product Description
Product Name: Water Tank Truck Model: ZZ1167M4611W
Drive Type: LHD 4X2 Emission Standard: Euro 2
Engine: WD615.62, 266HP Tank Body Capacity: 8-12CBM
High Light:

construction water trucks

,

construction water truck

,

360 Degree Rotation Water Tank Truck

SINOTRUK HOWO Construction Water Tank Truck 10CBM With 360 Degree Rotation giant





Description:



Water Tank Truck SINOTRUK HOWO 7CBM for Landscape Engineering or Mining area

Our company production of Water Tank Truck have the character of high pressure, spraying

range wide, good flushing effect and so on.



The flushing head universal regulation, meet the arbitrary angle and the combination of the washing operation, the system can achieve aerodynamic control and manual control of the two kinds of

functions. Tank external sandblasting, tank internal anti-corrosion treatment, outer surface of the

senior polyurethane topcoat, beautiful appearance.



Optional mounted front and rear high jet, with water diffusion function, a level 360 degree turn,

also can be up and down 150 degree tilt. Optional medicine small flow pump, spraying configuration

reel awakened garden flowers and trees to kill the insects.



Working principle is truck engine driven gearbox, gearbox mounted power take-off drive

sprinkler pumps, sprinkler pump produces the main driving force, inside the tank of

liquid through the pipe to spray out. Self suction height: less than or equal to 7m,

sprinkler width: is equal to or more than 20m, maximum range: greater than or equal to

28m; adjusting the pillars, the range is more than or equal to 28m; also can be adjusted

into a mist, a range of equal to or more than 5m. Before the spray sprinkle, is arranged

in front of the duck shaped nozzle or round blunt mouth, mounted behind the open

sprinkler nozzle or shower nozzle of cylinder, at the back of the work platform, equipped

with water cannons.



Specification:



SINOTRUK HOWO Construction Water Tank Truck 10CBM With 360 Degree Rotation giant

Chassis Model

ZZ1167M4611W

Drive Type

4×2

Engine

WD615.62, 266HP

Cabin

HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat)

Transmission

HW13710(10 forwards & 2 reverses)

Front Axle

HF9(1X9 Tons)

Driving Axle

HC16(1X16 Tons)

Clutch

hydraulically operating with air assistance

Rim/ Tire

11.00R20, Radial tyre

Wheel base

4600(mm)

Capacity of tank body

8-12CBM

Spraying width of travel

14.8m

Spraying height

≧30m

Water sucking depth

≧4m

Overall dimension

8250×2496×3150mm

The curb weight

8300(Kg)

Gross weight

16000 kg

Max. speed

95km/h

Color

White, red, green, golden and so on.


Applications:



The Water tank truck is mainly used for construction of mines and other enterprises, road flushing and

dust covering in large-medium-scale cities.



Competitive Advantage:



1) with all kinds of truck model, which can fulfill your requirement

2) based on strong technical support and top level technology make the trucks with high quality and more

reliable

3) the key parts adopt the world's top technology products

4) High pressure, wide range of spraying good flushing effect

5) Blunt head universal adjustment, meet the arbitrary Angle and the combination of the flush operation

6) Pneumatic control and manual control system can realize two functions

7) External sandblasting processing of tank, internal anti-corrosion treatment,        Outside surface adopts advanced polyurethane paint, beautiful appearance

8) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation,

150 degree tilt up and down. Options small flow pump, spraying reel to wake insecticidal garden trees

flowers and plants

9) competitive price, cost-effective
10) quick and efficient spare parts supply bring you more convenient

11) fast delivery time, we can arrange production according to your needs exactly and quickly

12) professional import and export dealing procedure, make customs clearance more high efficiency
