Home ProductsTractor Truck

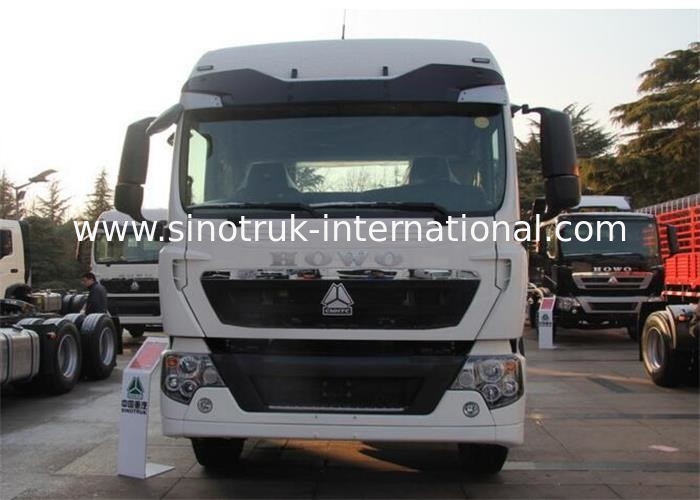

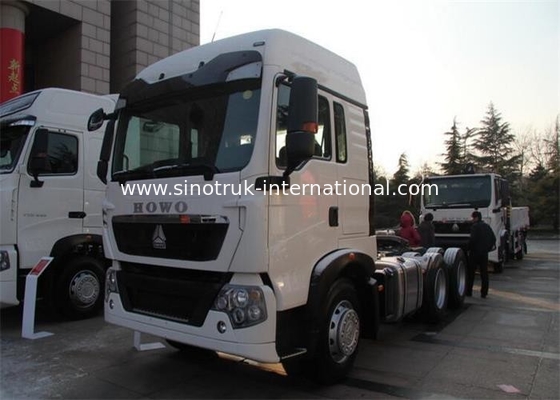

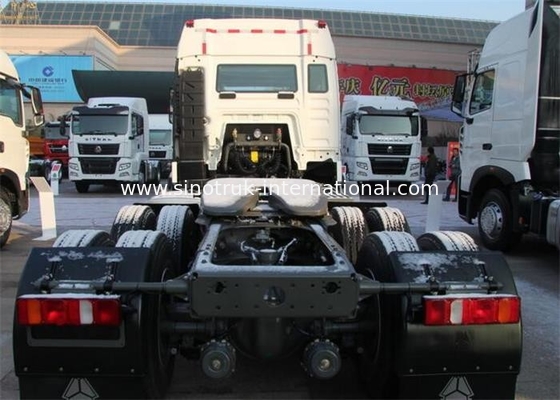

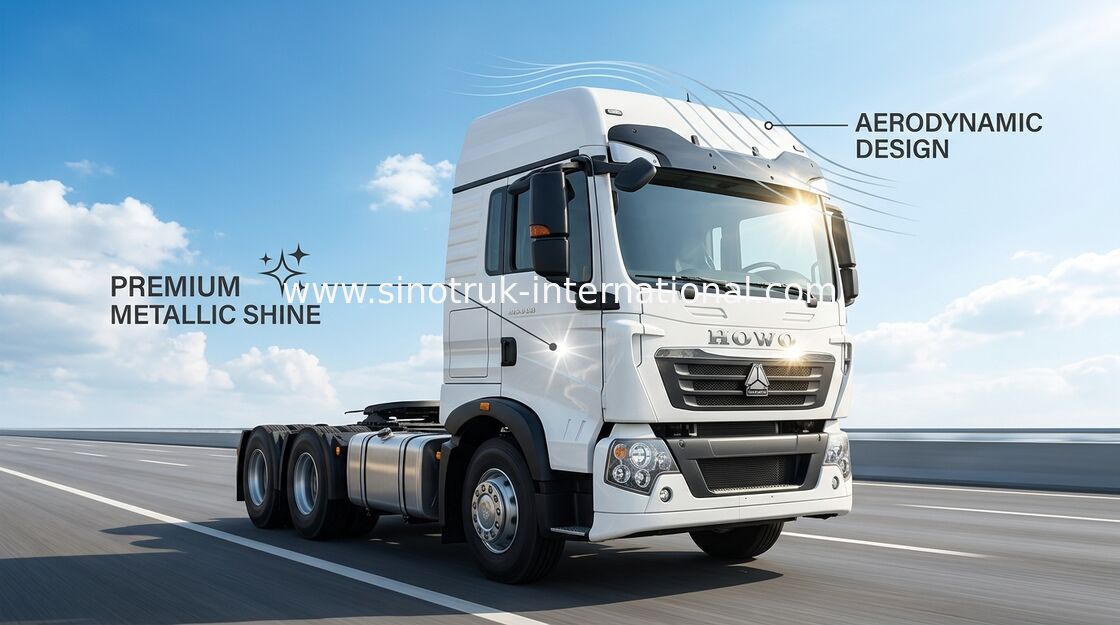

Light Weight Tractor Head Trucks 10 Wheels Tractors And Trucks Easy Maintenance

Light Weight Tractor Head Trucks 10 Wheels Tractors And Trucks Easy Maintenance

    • Light Weight Tractor Head Trucks 10 Wheels Tractors And Trucks Easy Maintenance
    • Light Weight Tractor Head Trucks 10 Wheels Tractors And Trucks Easy Maintenance
    • Light Weight Tractor Head Trucks 10 Wheels Tractors And Trucks Easy Maintenance
  • Light Weight Tractor Head Trucks 10 Wheels Tractors And Trucks Easy Maintenance

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK HOWO T5G
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: ZZ4257N324GD1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD36500-USD37000/UNIT)negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 20 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 4,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Tractor Truck Model: ZZ4257N324GD1
    Drive Type: RHD 6X4 Emission Standard: Euro 4
    Engine: MC07.34-40, 336HP Fifth Wheel: #50, #90

    SINOTRUK HOWO T5G Tractor Truck RHD 6X4 10 Wheels Euro4 336HP ZZ4257N324GD1



    Description:



    SINOTRUK HOWO T5G Tractor Truck RHD 6X4 10 Wheels Euro4 336HP ZZ4257N324GD1

    T5G platform product standard exclusive introduction of the world advanced technology MC07 (Manchester D08 localization) series of electronically controlled high pressure common rail engine, rated power 240~336 horsepower, emissions can reach national III to the country v. All standard engine fan EVB (exhaust valve brake). Other highlights are: the introduction of German technology: Battery the module design, and reservoir integrated; easy maintenance; light weight. The muffler introduced German technology: high efficiency, good noise reduction effect; light weight, easy disassembly and maintenance; the boarding ladder all blend into one harmonious whole.



    HOWO-T5G models from Europe located in the heavy truck in the high-end user groups, condensed German man advanced technology, the prototype of the cabin shell corresponding in 2006 and 2008, often get a truck of the year award, the cab width 2240mm, high top, long, standard three styles, equipped with the most wide berth, a 750mm.T5G stylish, elegant interior, comfortable, convenient manipulation, large space, middle low floor design, move freely, after around compact layout, due to the rear cargo inlet after lying, leaving a space of sufficient size, more suitable for all kinds of special car layout. Manchester D08 engine equipped with an engine displacement of two. A four cylinder engine and six cylinder engine, also known as 5L machine and 7L machine, 5L machine power is 150 horsepower, 180 horsepower and 210 horsepower.





    Specification:



    SINOTRUK HOWO T5G Tractor Truck RHD 6X4 10 Wheels Euro4 336HP ZZ4257N324GD1

    Model ZZ4257N324GD1
    Drive Type 6×4
    Engine

    MC07.34-40 , 340HP( Euro 4)

    6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

    Displacement : 11.596L

    Cabin T5G-V(with Two sleepers, air-conditioner and new-style seat)
    Transmission HW19712CL(12 forwards & 2 reverses)
    Front Axle VGD060QB
    Driving Axle MCY13Q
    Steering GC110-15 hydraulic steering with power assistance.
    Clutch

    Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating

    with air assistance

    Rim/ Tire

    12R22.5 tubeless tyre

    11.00R20,12.00R20,12.00R24 Radial tire
    Wheel base 3200+1350(mm)
    Overall dimension

    6800×2496×2958(mm)

    Fifth Wheel

    #50, #90

    The curb weight 9180(Kg)
    Gross weight 25000 kg
    Max. speed 102km/h
    Color White, red, green, golden and so on.




    Applications:



    It’s suitable for towing all kinds semi trailer which is used in Logistics business, construction site and

    Mining area .



    Competitive Advantage:



    1) German MAN engine technology

    2) long quality warranty

    3) reliable quality

    4)with all kinds of truck model, which can fulfill your requirement

    5)the key parts adopt the world's top technology products

    6)based on strong technical support and top level technology make the trucks with high quality and more reliable

    7)it has higher safety and running efficiency.

    8)excellent appearance of cabin, safety, reliable

    9)low fuel consumption

    10)strong enough engine

    11)competitive price, cost-effective

    12)quick and efficient spare parts supply bring you more convenient

    13)fast delivery time, we can arrange production according to your needs exactly and Quickly

    14)professional import and export dealing procedure, make customs clearance more high efficiency



    Light Weight Tractor Head Trucks 10 Wheels Tractors And Trucks Easy MaintenanceLight Weight Tractor Head Trucks 10 Wheels Tractors And Trucks Easy Maintenance
