SINOTRUK INTERNATIONAL CO., LTD.

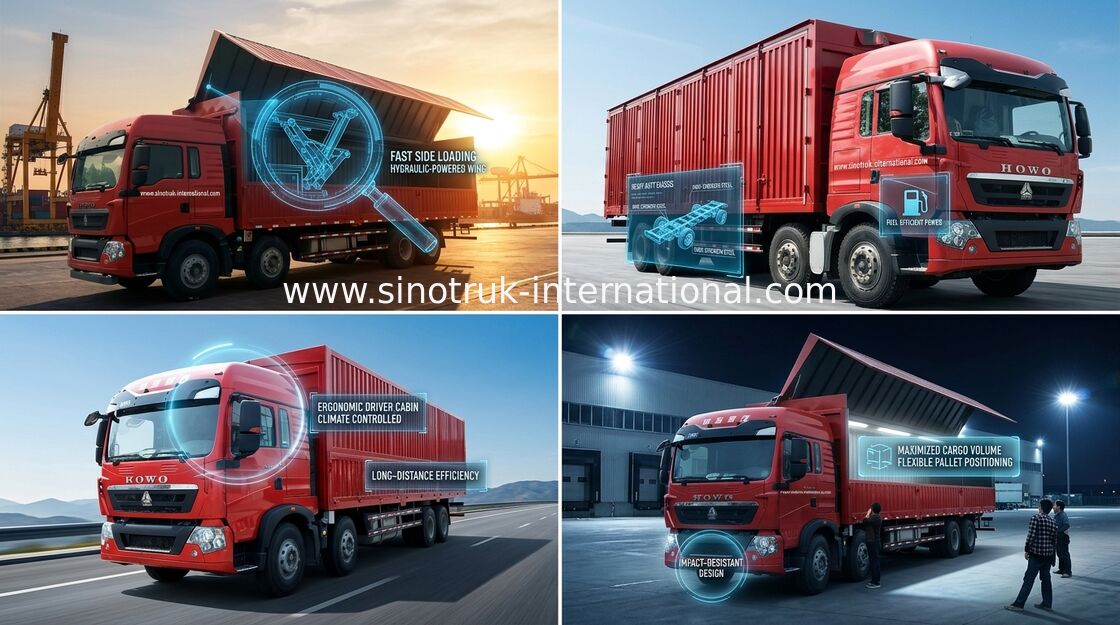

SINOTRUK HOWO T5G Wing Van Cargo Truck 8X4 12 Wheels LHD MAN Engine Euro4 336HP

    • SINOTRUK HOWO T5G Wing Van Cargo Truck 8X4 12 Wheels LHD MAN Engine Euro4 336HP
    • SINOTRUK HOWO T5G Wing Van Cargo Truck 8X4 12 Wheels LHD MAN Engine Euro4 336HP
    • SINOTRUK HOWO T5G Wing Van Cargo Truck 8X4 12 Wheels LHD MAN Engine Euro4 336HP
    • SINOTRUK HOWO T5G Wing Van Cargo Truck 8X4 12 Wheels LHD MAN Engine Euro4 336HP
  • SINOTRUK HOWO T5G Wing Van Cargo Truck 8X4 12 Wheels LHD MAN Engine Euro4 336HP

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK HOWO T5G
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: ZZ1317N466GD1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: Negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 25 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 3,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Swing Van Cargo Truck Model: ZZ1317N466GD1
    Drive Type: 8X4 LHD Emission Standard: Euro4
    Engine: MC11.35-40, 346HP Dimension Of Cargo Body: 9280*2300*800mm
    Loading Capacity: 30-60Tons

    SINOTRUK HOWO T5G Wing Van Cargo truck 8X4 12 Wheels LHD MAN Engine Euro4 336HP



    Description:



    SINOTRUK HOWO T5G Wing Van Cargo truck 8X4 12 Wheels LHD MAN Engine Euro4 336HP

    HOWO-T5G models from Europe located in the heavy truck in the high-end user groups, condensed German man advanced technology, the prototype of the cabin shell corresponding in 2006 and 2008, often get a truck of the year award, the cab width 2240mm, high top, long, standard three styles, equipped with the most wide berth, a 750mm.T5G stylish, elegant interior, comfortable, convenient manipulation, large space, middle low floor design, move freely, after around compact layout, due to the rear cargo inlet after lying, leaving a space of sufficient size, more suitable for all kinds of special car layout. Manchester D08 engine equipped with an engine displacement of two.



    A four cylinder engine and six cylinder engine, also known as 5L machine and 7L machine, 5L machine power is 150 horsepower, 180 horsepower and 210 horsepower. In 160 HP engine basically is four cylinder engine, 180 horsepower above must be Is the six cylinder engine can do, and the height of the body to strengthen Manchester engine performance, four cylinder, 210 horsepower machine can, at present only Manchester engine can do, but it weighs only 459 kg.D08 six cylinder 7L engine, power is 240 horsepower, 280 horsepower, 310 horsepower and 336 horsepower. The super wide economic belt speed (1200r/min-1800r/min) power and fuel economy performance of far more than the current industry other displacement engine, the displacement of 8L about the performance of engine, and the engine weighs only 602 kg, than the Steyr engine nearly 400 kilograms lighter, such power and so light engine, the engine is also the only man in order to do it.







    Specification:



    SINOTRUK HOWO T5G Wing Van Cargo truck 8X4 12 Wheels LHD MAN Engine Euro4 336HP

    Chassis Model

    ZZ1317N466GD1

    Drive Type

    8×4

    Engine

    MC11.35-40, 346HP

    Cabin

    T5G-V lengthened cab(with one sleeper, air-conditioner and two new-style seat)

    Transmission

    HW13710(10 forwards & 2 reverses)

    Front Axle

    HF9(1X9 Tons)

    Driving Axle

    HC16(1X16 Tons)

    Clutch

    hydraulically operating with air assistance

    Rim/ Tire

    11.00R20, Radial tyre

    Wheel base

    1800+4600+1350(mm)

    Dimension of cargo body

    9280*2300*800mm, Bottom:3mm, Side:1.5mm

    Overall dimension

    11985×2496×3050mm

    The curb weight

    13560(Kg)

    Gross weight

    25000 kg

    Max. speed

    95km/h

    Color

    White, red, green, golden and so on.


    Applications:



    It’s suitable for Logistics business, for transport all kinds of goods, such as machine, equipment, coal

    and so on .



    Competitive Advantage:



    Using Many MAN technology

    The introduction of German technology: battery module design, and the reservoirs are integrated; easy maintenance; light weight. The muffler introduced German technology: high efficiency, good noise reduction effect; light weight, easy disassembly and maintenance; the boarding ladder all blend into one harmonious whole.



    High Safety

    1. Four independent braking systems

    Our cargo trucks adopt four direct-operated pneumatic braking systems (front axle brake, rear axle brake, parking emergency brake,

    engine auxiliary brake), with automatic clearance adjustment. This, coupled with modem brake devices

     like ABS, makes your driving highly reliable and safe.

    2. Wide-angle rear view mirror

    The luxury wide-angel rear view mirror provides the drive with unobstructed all-around visibility, further assuring

    driving safety.



    Aesthetic Design

    Our cargo trucks are outlined with full and smooth lines, which better meets aerodynamic principles and  greatly reduces the drag coefficient, thus significantly improving fuel economy.

    Luxury and stylish integral bumper, elegant high-brightness headlights.

    New soft interior and dashboard are both aesthetic and practical; detachable combination instrument is  convenient to repair and maintain.

    Electric window regulator, central electric control door lock



    Low Fuel consumption

    Low fuel consumption: 1200-1200 turn over wide economic speed low fuel consumption, a new combustion

    principle, the second  generation of Bosch common rail fuel injection system, high economic benefit.

    Oil change interval is lengthen: euro Ⅱ consumption, road transport vehicles from the factory to change  the oil for the first time, a maximum mileage of 30000 kilometers, so there is low transport cost.



    SINOTRUK HOWO T5G Wing Van Cargo Truck 8X4 12 Wheels LHD MAN Engine Euro4 336HP
