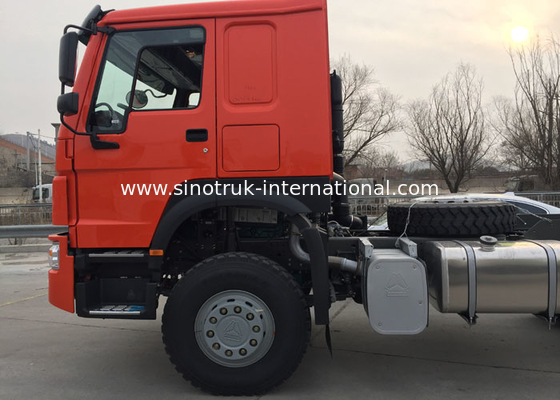

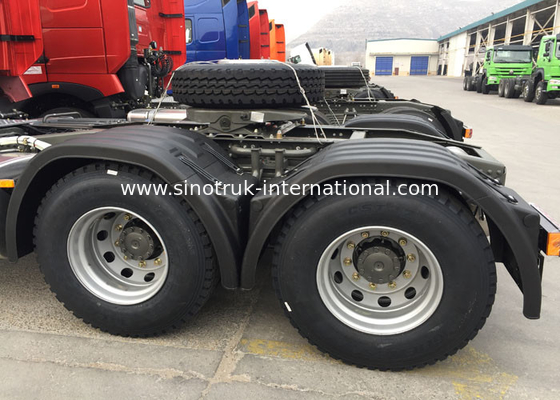

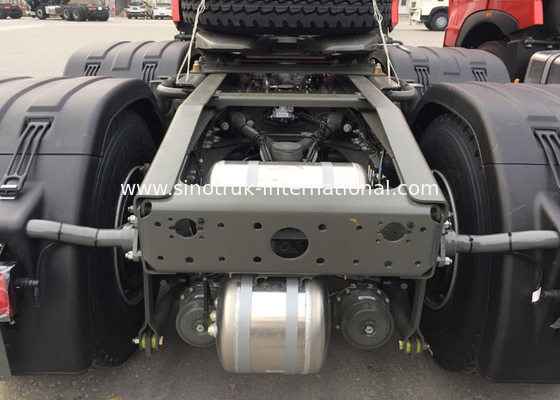

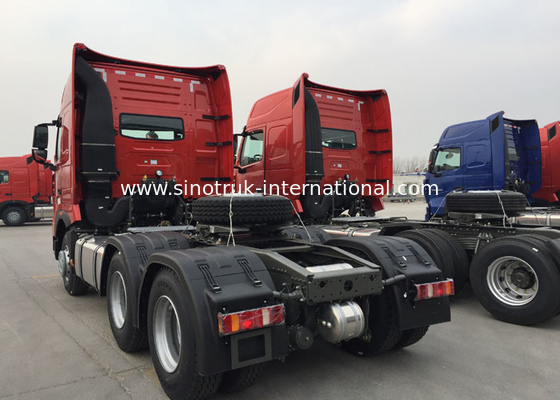

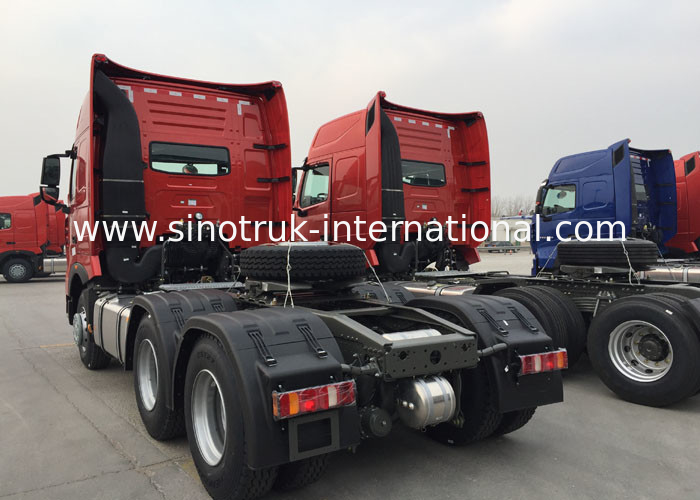

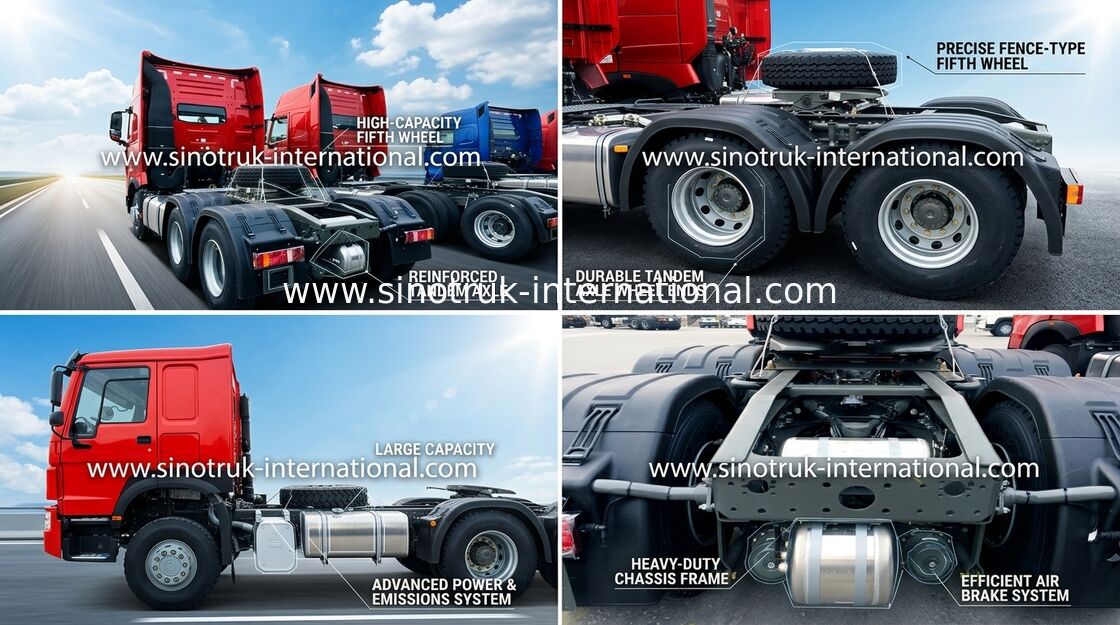

Tow Tractor Trailer Truck LHD 6x4 371HP Flat Roof Cabin SINOTRUK HOWO Truck

    • Tow Tractor Trailer Truck LHD 6x4 371HP Flat Roof Cabin SINOTRUK HOWO Truck
    • Tow Tractor Trailer Truck LHD 6x4 371HP Flat Roof Cabin SINOTRUK HOWO Truck
    • Tow Tractor Trailer Truck LHD 6x4 371HP Flat Roof Cabin SINOTRUK HOWO Truck
    • Tow Tractor Trailer Truck LHD 6x4 371HP Flat Roof Cabin SINOTRUK HOWO Truck
  • Tow Tractor Trailer Truck LHD 6x4 371HP Flat Roof Cabin SINOTRUK HOWO Truck

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK HOWO
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: ZZ4257S3241W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD36500-USD37000/UNIT)negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 20 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 4,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Tractor Truck Model: ZZ4257S3241W
    Drive Type: LHD 6X4 Emission Standard: Euro 2 Or Euro3
    Engine: D12.38, 380HP Fifth Wheel: #90
    Traction Capacity: 60-70tons Color: According To Your Requests

    SINOTRUK HOWO Tow Tractor Truck LHD 6x4 371HP Flat roof cabin air suspension



    Description:



    SINOTRUK HOWO Tow Tractor Truck LHD 6x4 371HP Flat roof cabin air suspension

    HW series heavy yupe transmission is a new generation well-crafted product developed by SINOTRUK specially for the heavy duty truck, SINOTRUK own the independent intellectual property rights for it, with its unique structure home and aboard, its primary transmission adopts twin cuntershaft structure and auxiliary transmission adopts planetary deceleration structure, which make its bearing capacity stronger and its structure more reliable. The integrated small housing design allows legible gear and flexible gear shift.



    Presently, this type of transmission is applied to be engine for the heavy duty truck which power range is 336--420 ps, it is the first choice for the domestic heavy duty truck.



    CNHTC owns several national patents for aluminum alloy fuel tanks and is the first manufacturer starting the mass production. The product quality is well guaranteed by the most advanced welding production line and full-process monitoring over the welding. Presently, the tank capacity includes 200L, 240L, 250L, 350L, and 400L and the round, D-shaped and square structure shapes can meet the different customers' demands. The aluminum alloy fuel tank is featured in light weight, high strength and excellent corrosion resistant performance to avoid the tank internal corrosion, enhance the fuel clearning degree and prolong the service life of engine.



    Specification:



    SINOTRUK HOWO Tow Tractor Truck LHD 6x4 371HP Flat roof cabin air suspension

    Model ZZ4257S3241W
    Drive Type 6×4
    Engine

    D12.38 , 380HP( Euro II)

    6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

    Displacement : 11.596L

    Cabin HW76(with single sleeper, air-conditioner and new-style seat)
    Transmission HW19710(10 forwards & 2 reverses)
    Front Axle 1×HF9 ( 9 Tons)
    Driving Axle HC16, 16Tons
    Steering ZF8098 hydraulic steering with power assistance.
    Clutch

    Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating

    with air assistance

    Rim/ Tire

    12R22.5 tubeless tyre

    11.00R20,12.00R20,12.00R24 Radial tire
    Wheel base 3200+1350(mm)
    Overall dimension

    6800×2496×2958(mm)

    Fifth Wheel

    #50, #90

    The curb weight 9180(Kg)
    Gross weight 25000 kg
    Max. speed 102km/h
    Color White, red, green, golden and so on.




    Applications:



    It’s suitable for towing all kinds semi trailer which is used in Logistics business, construction site and

    Mining area .



    Competitive Advantage:



    1.We are professional manufacturers to do the special vehicles ,such as fire truck ,

    wrecker tow truck, aerial work platform truck, water tank truck, fuel tank truck ,refrigerator truck,mixer
    truck, truck with crane ,garbage truck ,vacuum sewage suction truck,etc .
    2.We are supply all brands special truck of SINOTRUK
    3.the drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4
    4.We can provide LHD (left hand drive) or RHD (right hand drive) vehicles .
