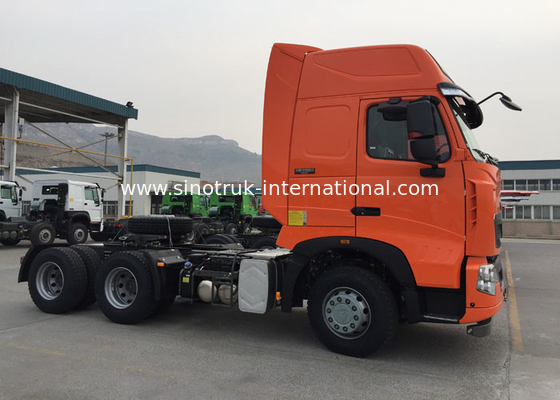

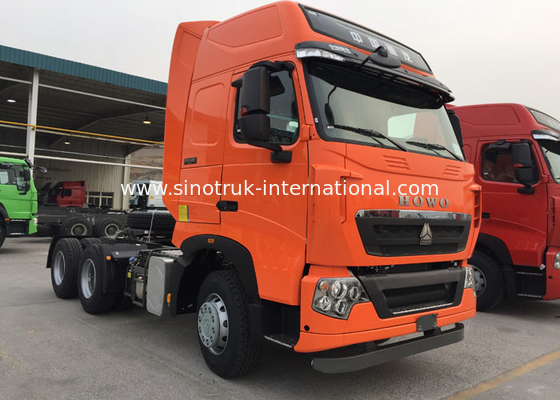

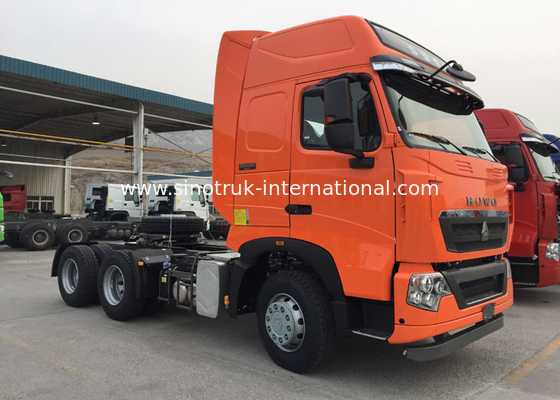

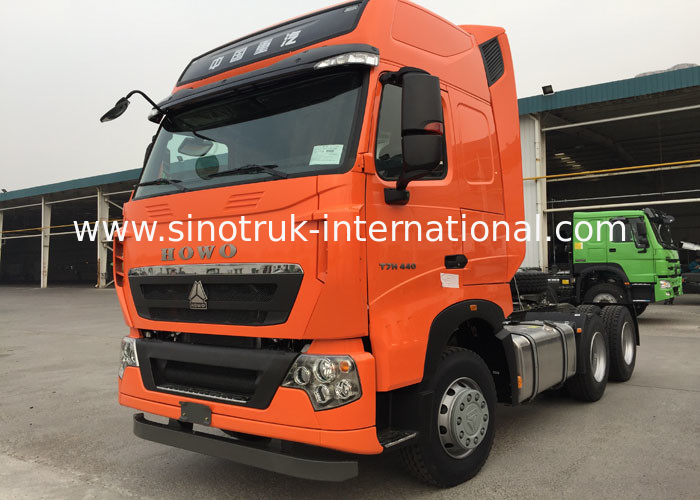

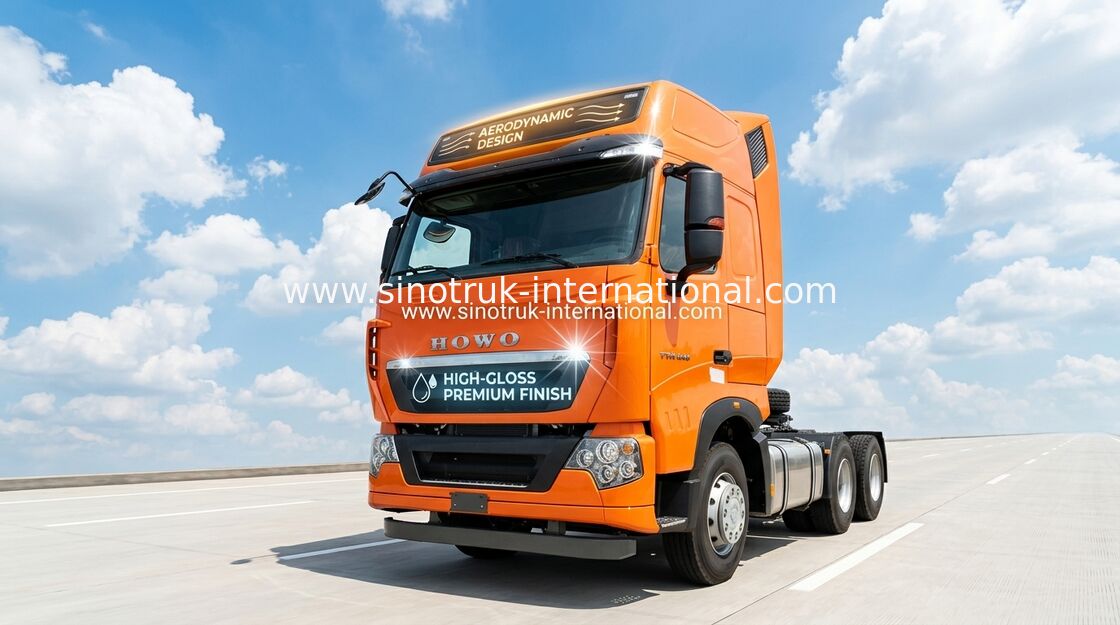

SINOTRUK HOWO T7H MAN Engine Tractor Truck 6X4 Euro 3 / 4 440 HP ZZ4257V324HD1B

SINOTRUK HOWO T7H MAN Engine Tractor Truck 6X4 Euro 3 / 4 440 HP ZZ4257V324HD1B

    • SINOTRUK HOWO T7H MAN Engine Tractor Truck 6X4 Euro 3 / 4 440 HP ZZ4257V324HD1B
    • SINOTRUK HOWO T7H MAN Engine Tractor Truck 6X4 Euro 3 / 4 440 HP ZZ4257V324HD1B
    • SINOTRUK HOWO T7H MAN Engine Tractor Truck 6X4 Euro 3 / 4 440 HP ZZ4257V324HD1B
    • SINOTRUK HOWO T7H MAN Engine Tractor Truck 6X4 Euro 3 / 4 440 HP ZZ4257V324HD1B
  • SINOTRUK HOWO T7H MAN Engine Tractor Truck 6X4 Euro 3 / 4 440 HP ZZ4257V324HD1B

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK HOWO T7H
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: ZZ4257V324HD1B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD36500-USD37000/UNIT)negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 20 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 4,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Tractor Truck Model: ZZ4257V324HD1B
    Drive Type: LHD 6X4 Emission Standard: Euro 4
    Fifth Wheel: #50, #90 Traction Capacity: 60-70tons
    Cabin: Two Betth(high Roof Cabin)

    SINOTRUK HOWO T7H MAN Engine Tractor Truck 6X4 Euro 3 or 4 440 HP ZZ4257V324HD1B



    Description:



    SINOTRUK HOWO T7H MAN Engine Tractor Truck 6X4 Euro 3 or 4 440 HP ZZ4257V324HD1B

    T7H platform product standard exclusive introduction of the world advanced technology MC07 (Manchester D08 localization) series of electronically controlled high pressure common rail engine, rated power 240~336 horsepower, emissions can reach national III to the country v. All standard engine fan EVB (exhaust valve brake). Other highlights are: the introduction of German technology: Battery the module design, and reservoir integrated; easy maintenance; light weight. The muffler introduced German technology: high efficiency, good noise reduction effect; light weight, easy disassembly and maintenance; the boarding ladder all blend into one harmonious whole.



    In the industry under 160 horsepower engine basically is four cylinder, 180 horsepower to six cylinder engine is a must to do, but this highly intensified engine's body performance, four cylinder, 210 horsepower machine can, at present only Manchester engine can do, but it weighs only 459 kg.D08 six cylinder 7L displacement engine, power is 240 horsepower, 280 horsepower, 310 horsepower and 336 horsepower. The ultra wide band (1200r/min-1800r/min) speed of economic power and fuel economy performance of far more than the current industry other displacement engine, the displacement of 8L about the performance of engine, and the engine weighs only 602 kg, than the Steyr engine light nearly 400 kilograms, this power and so light engine, at present only Manchester engine can do. Therefore, the reasonable matching of the assembly parts of the T7H vehicle, the vehicle weight less than Industry of similar products, such as 6*4 high ceilings standard transport tractor, the weight is only 7.5 tons (including the saddle), is the lightest 6*4 tractor, 6*2 high ceilings tractor lightweight configuration weight also in less than 6.5 tons, the light (including saddle).T7H products of all models, in addition to driving room, engine, front and rear axle configuration all kinds of man has its obvious advantages, other configuration parameters and the industry standard products and announcements. Configuration of 4-9L engine in heavy truck products, there are nearly 250 thousand units around the market every year.





    Specification:



    SINOTRUK HOWO T7H MAN Engine Tractor Truck 6X4 Euro 3 or 4 440 HP ZZ4257V324HD1B

    Model ZZ4257V324HD1B
    Drive Type 6×4
    Engine

    MC11.44-40 , 440HP( Euro 4)

    6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

    Displacement : 11.596L

    Cabin T7H-G(with Two sleepers, air-conditioner and new-style seat)
    Transmission HW19712CL(12 forwards & 2 reverses)
    Front Axle HR9
    Driving Axle AC16
    Steering GC110-15 hydraulic steering with power assistance.
    Clutch

    Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

     air assistance

    Rim/ Tire

    12R22.5 tubeless tyre

    11.00R20,12.00R20,12.00R24 Radial tire
    Wheel base 3200+1350(mm)
    Overall dimension

    6800×2496×3800(mm)

    Fifth Wheel

    #50, #90

    The curb weight 9180(Kg)
    Gross weight 25000 kg
    Max. speed 102km/h
    Color White, red, green, golden and so on.




    Applications:



    It’s suitable for towing all kinds semi trailer which is used in Logistics business, construction site and

    Mining area .



    Competitive Advantage:



    1) German MAN engine technology

    2) long quality warranty

    3) reliable quality

    4)with all kinds of truck model, which can fulfill your requirement

    5)the key parts adopt the world's top technology products

    6)based on strong technical support and top level technology make the trucks with high quality and more reliable

    7)it has higher safety and running efficiency.

    8)excellent appearance of cabin, safety, reliable

    9)low fuel consumption

    10)strong enough engine

    11)competitive price, cost-effective

    12)quick and efficient spare parts supply bring you more convenient

    13)fast delivery time, we can arrange production according to your needs exactly and Quickly

    14)professional import and export dealing procedure, make customs clearance more high efficiency
