High Speed Tipper Semi Trailer Truck For Mining And Construction 25-45 CBM

High Speed Tipper Semi Trailer Truck For Mining And Construction 25-45 CBM

    • High Speed Tipper Semi Trailer Truck For Mining And Construction 25-45 CBM
    • High Speed Tipper Semi Trailer Truck For Mining And Construction 25-45 CBM
    • High Speed Tipper Semi Trailer Truck For Mining And Construction 25-45 CBM
    • High Speed Tipper Semi Trailer Truck For Mining And Construction 25-45 CBM
  • High Speed Tipper Semi Trailer Truck For Mining And Construction 25-45 CBM

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: 3 Axles 60-80Tons

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: Negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship, or by 40GP, 40HQ,40FR and so on
    Delivery Time: 20 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 4,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Semi Trailer Dump Truck Model: 3 Axles 60-80Tons
    Fifth Wheel: #50, #90 Loading Capacity: 60-100tons
    Tank Capacity: 25-45CBM Cargo Body: 11500*2300*1700mm
    Axles: 3X20 Tons Material: Carbon Steel Or Mn Steel

    3Axles Tipper Semi Trailer, 30-100tons Loading capacity for Mining and construction



    Semi Trailer Dump Truck Description:



    Semi Trailer Dump Truck 3 Axles 60-80Tons 25-45CBM for Mining and Construction

    Our company is the production of a new Semi Trailer Dump Truck, the low center of gravity

    structure design, to prevent lifting rollover occurs. Lower center of gravity to 1.3

    meters, 1.4 meters, when loading do not shake and do not susceptible to rollover, reduce

    the damage of tires and springs. The truck frame and the carriage has obtained national

    patent frame with 16 beam Manganese plate made greatly increases the bearing strength.

    Wide rear and narrow front design is more conducive to dump, is not easy to be blocked,

    goods uniform unloading, never lead to rollover.

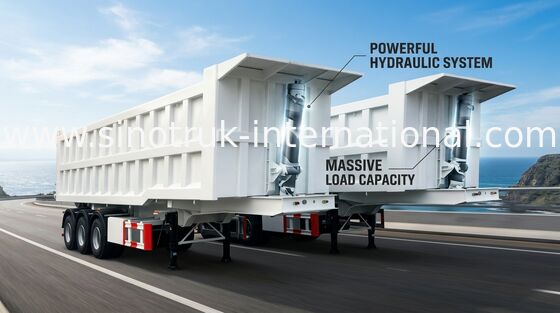

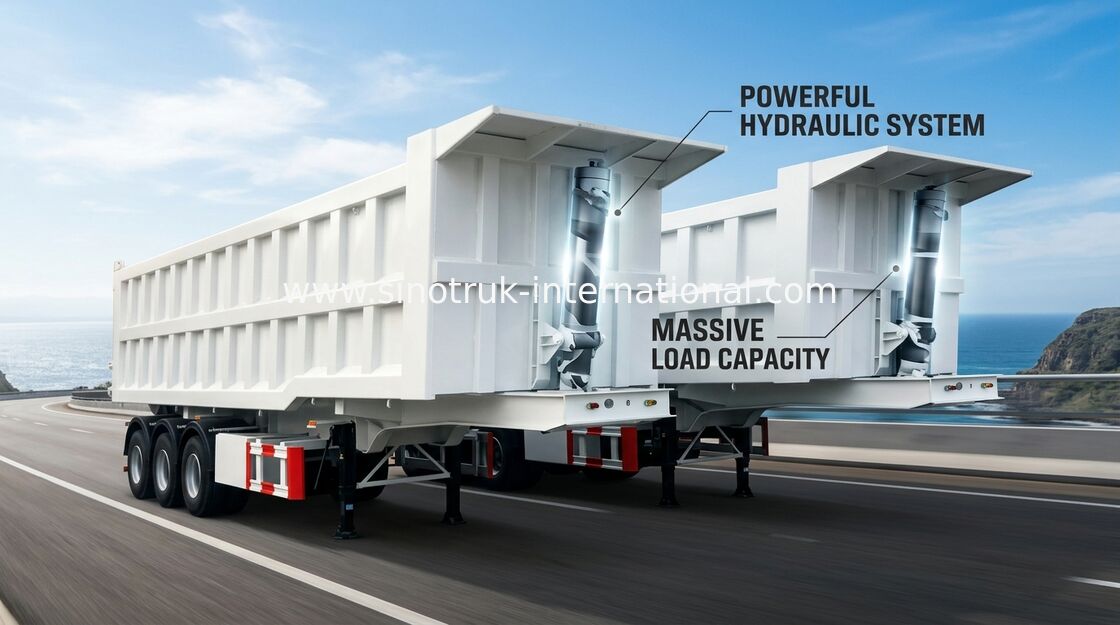

    The hydraulic cylinder of the Semi Trailer Dump Truck is made from the special

    manufacturers, its material strength is much higher than the ordinary cylinder, improve

    the use of the product cycle.



    The rear panel of the vehicle is locked with a mechanical device, the lock hook and the

    back plate are automatically opened at the time of unloading, and the blockage is avoided

    when unloading, especially when the stone is unloaded, and the loss of the vehicle is

    reduced.



    The Semi Trailer Dump Truck is pulled goods volume can reach 45 CBM (non-standard 65CBM),

    the weight can reach 80t - 100t, greatly improving the work efficiency is 8x4 self

    unloading alternative products (Dump Truck up to pull 25 CBM).



    Semi Trailer Dump Truck Specification:



    3Axles Tipper Semi Trailer, 30-100tons Loading capacity for Mining and construction

    Model 3 Axles 80Tons
    Axle

    FUWA brand, 20ton, 3 Sets

    Main beam

    Beam height: 500mm

    Upper plate: 10mm

    Double Middle plate: 6 mm

    Down plate: 12mm

    Cargo Body

    11500*2300*1700mm, floor:10mm, side:6mm

    Material

    Carbon steel or Mn steel

    Gross vehicle weight

    80000kgs

    King pin

    #90

    Support leg

    JOST Standard 28T

    Suspension

    Normal suspension

    Thickness leaf spring

    10/10/10

    Tire/Rim

    1200R20, 13pcs, 8.5, 12 pcs

    Brake Chamber

    Standard 6 pcs

    Spare wheel carrier

    2 pcs

    Tool box

    1 pcs

    Electrical System

    Chinese standard 24C lighting system

    Side Maker Lamp

    LED lamp

    Painting

    Polyurethane Paint

    Overall dimension

    12000×2500×3880(mm)

    Color White, red, green, golden and so on.




    Semi Trailer Dump Truck Applications:



    It’s suitable for Mining industry, Construction business, docks, for transporting soil, sand, stones and so  on.
