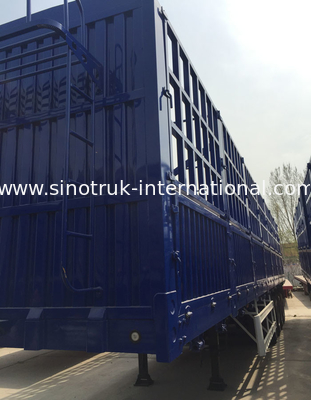

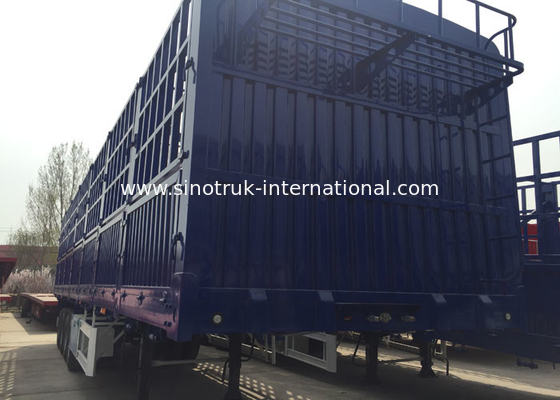

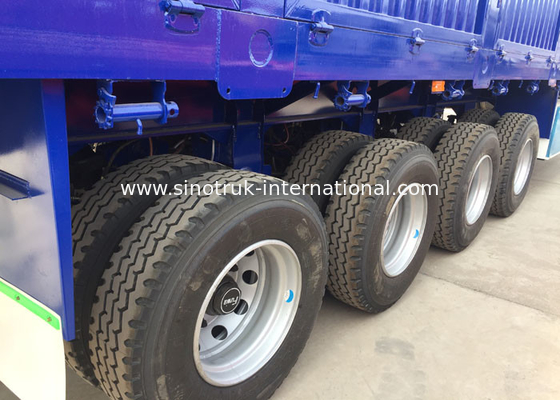

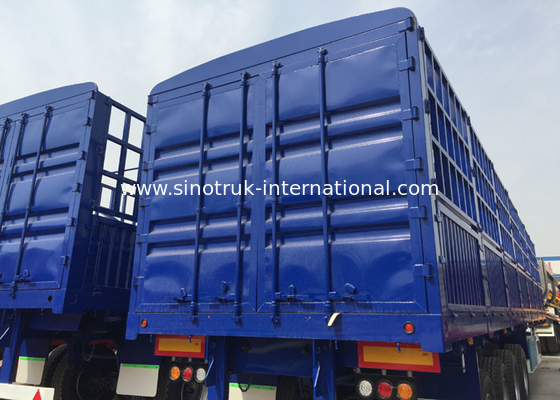

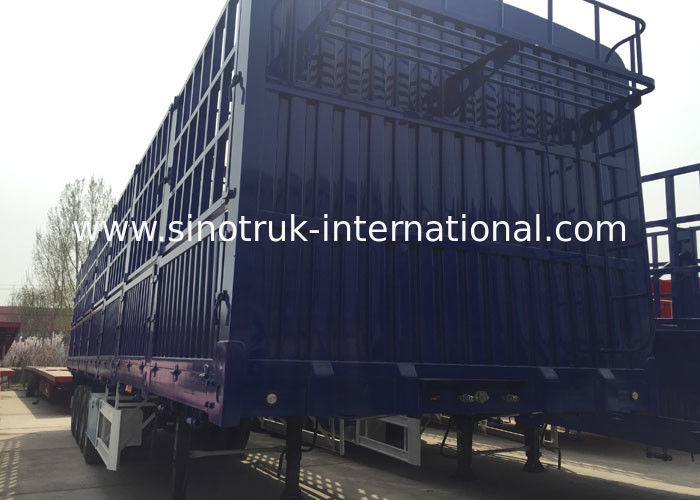

Logistic Industry Tri Axle Semi Tipper , Cargo Semi Low Bed Trailer

Logistic Industry Tri Axle Semi Tipper , Cargo Semi Low Bed Trailer

  • Logistic Industry Tri Axle Semi Tipper , Cargo  Semi Low Bed Trailer
  • Logistic Industry Tri Axle Semi Tipper , Cargo  Semi Low Bed Trailer
  • Logistic Industry Tri Axle Semi Tipper , Cargo  Semi Low Bed Trailer
  • Logistic Industry Tri Axle Semi Tipper , Cargo  Semi Low Bed Trailer
Logistic Industry Tri Axle Semi Tipper , Cargo  Semi Low Bed Trailer
Product Details:
Place of Origin: China
Brand Name: SINOTRUK
Certification: ISO/3C/BV/IFA/SGS
Model Number: 3 Axles 30-60Tons
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship, or by 40GP, 40HQ,40FR and so on
Delivery Time: 20 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4,000units per month
Contact Now
Detailed Product Description
Product Name: Dropside Semi Trailer Truck Model: 3 Axles 30-60Tons
Fifth Wheel: #50, #90 Loading Capacity: 30-60tons
Dimension Of Flat: 12600*3000mm Axles: 3X16 Tons
Material: Carbon Steel Or Mn Steel Landing Gear: 28T JOST
High Light:

Semi Trailer Dump Truck

,

semi flatbed trailers

3 axles Cargo Semi Trailer Truck Used In Logistic Industry



Tri Axle Semi Tipper ​Description:



Dropside Cargo Semi Trailer Truck 3 Axles 30-60Tons 13-16m SINOTRUK INTERNATIONAL

You can choose 2 or 3 Axles, which can loading 20-70 Tons.

This kind of semi trailer special used in logistic industry, with high loading capacity,

light self-weight, it's a high cost effective products.



It's our competitive products, which exported to so many countries, especially Asia and Africa countries.

Such as Philippines, Vietnam, Congo, Ethiopia and so on.

Our company semi trailer truck series,is applied to the transportation of all kinds of

mechanical equipment, big size articles,road construction equipment ,big size tank body

power station equipment and all kinds of steels .widely using ,high efficiency .



Whole vehicle adopts advanced computer aided design for optimization design ,flexible and

various ,to design carrying flat according to the requirements of customers.to meet

various of special goods transportation needs.





Tri Axle Semi Tipper Specification:



Dropside Cargo Semi Trailer Truck 3 Axles 30-60Tons 13-16m SINOTRUK INTERNATIONAL

Model 3 Axles 60Tons
Axle

FUWA brand, 16ton, 3 Sets

Main beam

Beam height: 500mm

Upper plate: 10mm

Double Middle plate: 6 mm

Down plate: 12mm

Dimension of cargo body

13000*3000*600+1500mm

Material

Carbon steel or Mn steel

Gross vehicle weight

70000kgs

King pin

#90

Support leg

JOST Standard 28T

Suspension

Normal suspension

Thickness leaf spring

10/10/10

Tire/Rim

1200R20, 13pcs, 8.5, 12 pcs

Brake Chamber

Standard 6 pcs

Spare wheel carrier

2 pcs

Tool box

1 pcs

Electrical System

Chinese standard 24C lighting system

Side Maker Lamp

LED lamp

Painting

Polyurethane Paint

Overall dimension

16000×2500×3880(mm)

Color White, red, green, golden and so on.




Tri Axle Semi Tipper Applications:



Dropside Cargo semi trailer for light or big size goods. suitable for long and short distance logistics.



About US



China National Heavy Duty Truck Group Co. Ltd. (hereinafter referred to as the "CNHTC") is the predecessor of the Jinan automobile manufacturing factory, founded in 1956, is the cradle of heavy-duty automobile industry in our country. In 1960 the production of Chinese first heavy duty truck - the Yellow River brand JN150 eight tons of Cargo Truck; in 1983 the successful introduction of the Austria STEYR project, is the first comprehensive introduction of overseas manufacturing technology of heavy automobile enterprise. In the year of 2001, CNHTC established after reform and restructuring , after 10 years of development, it has become the domestic and foreign well-known heavy duty truck manufacturing enterprise group. In the year of 2000, was listed on the main board in Hongkong, preliminary build up international platform in 2009; to achieve the strategic cooperation with the German company, the company shares Chinese Manchester SINOTRUK (Hongkong) Limited 25%+1 shares, CNHTC introduction of MAN Company D08, D20, D26 three types of engine, Middle and heavy duty truck axle and the corresponding vehicle technology, for long-term development of enterprises laid the solid foundation. At present, CNHTC has become China's largest heavy vehicle production base, has made outstanding contributions to China's heavy-duty automobile industry development and national economic construction.
