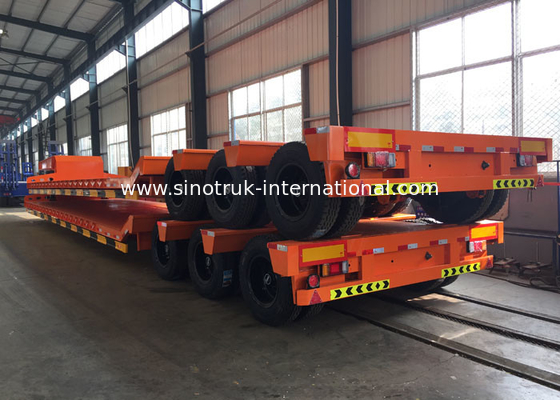

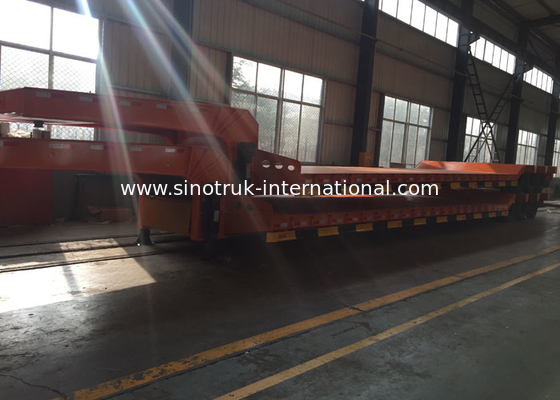

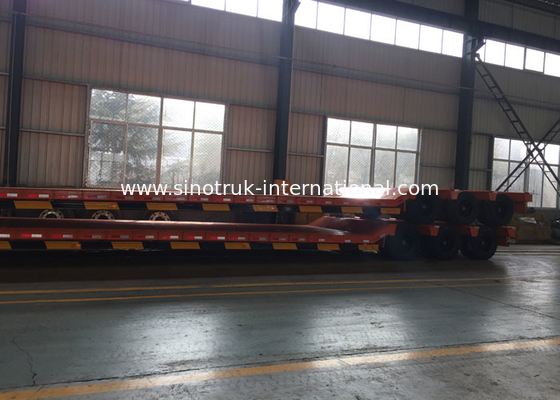

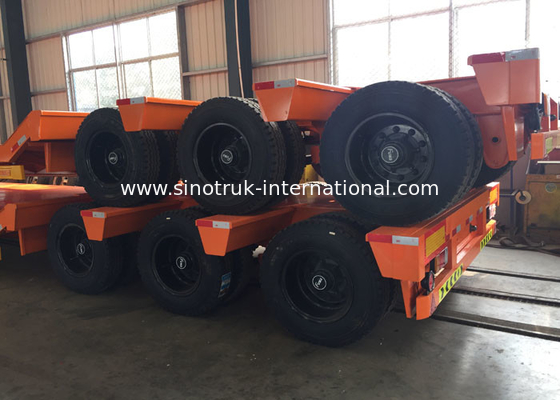

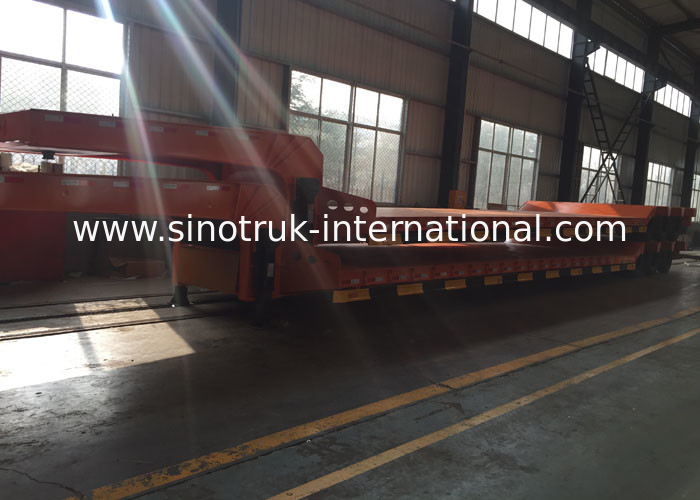

Hydraulic Flatbed Semi Trailer Truck For Construction Loading 80 Tons 17m

    • Hydraulic Flatbed Semi Trailer Truck For Construction Loading 80 Tons 17m
    • Hydraulic Flatbed Semi Trailer Truck For Construction Loading 80 Tons 17m
    • Hydraulic Flatbed Semi Trailer Truck For Construction Loading 80 Tons 17m
    • Hydraulic Flatbed Semi Trailer Truck For Construction Loading 80 Tons 17m
  • Hydraulic Flatbed Semi Trailer Truck For Construction Loading 80 Tons 17m

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: 3 Axles 50-80Tons

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: Negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship, or by 40GP, 40HQ,40FR and so on
    Delivery Time: 20 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 4,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Low-bed Semi Trailer Truck Model: 3 Axles 50-80Tons
    Fifth Wheel: #50, #90 Loading Capacity: 50-80tons
    Dimension Of Flat: 13000*3000mm Axles: 3X16 Tons
    Material: Carbon Steel Or Mn Steel Landing Gear: 28T JOST

    Low-bed Semi Trailer Truck 3 Axles 80Tons 17m for Loading construction machines



    Semi Trailer Truck​ Description:



    Low-bed Semi Trailer Truck 3 Axles 80Tons 17m for Loading construction machine

    Our company's Low bed semi trailer which exported to so many countries, such as Asia countries, Africa countries, South America countries and so on.



    Which is popular used in Mining industry, Construction business and so on.



    Semi Trailer Truck​ Specification:



    Low-bed Semi Trailer Truck 3 Axles 80Tons 17m for Loading construction machines

    Model 3 Axles 60Tons
    Axle

    FUWA brand, 16ton, 2 Sets

    Main beam

    Beam height: 500mm

    Upper plate: 10mm

    Double Middle plate: 6 mm

    Down plate: 12mm

    Dimension of Flat

    13000*3000*6mm

    Material

    Carbon steel or Mn steel

    Gross vehicle weight

    75000kgs

    King pin

    #90

    Support leg

    JOST Standard 28T

    Suspension

    Normal suspension

    Thickness leaf spring

    10/10/10

    Tire/Rim

    1200R20, 13pcs, 8.5, 12 pcs

    Brake Chamber

    Standard 6 pcs

    Spare wheel carrier

    2 pcs

    Tool box

    1 pcs

    Electrical System

    Chinese standard 24C lighting system

    Side Maker Lamp

    LED lamp

    Painting

    Polyurethane Paint

    Overall dimension

    16000×2500×3880(mm)

    Color White, red, green, golden and so on.




    Semi Trailer Truck​ Applications:



    Low bed semi trailer for a variety of mechanical equipment, large objects, highway construction  equipment, large tanks, power station equipment for various steel transportation.



    Our Advantage:



    1) Our company produces low flat semitrailer divided into flat, concave beam and tire exposed structure,  beam adopts flat type or goose neck. The frame is ladder type, the beam cross-section is

     I-shaped, has high anti breaking strength and bearing capacity.

    2) The main plane of the frame is low, which ensures the smooth transportation, and is suitable for  carrying all kinds of engineering machinery, large equipment and steel.

    3)Using three axis balance, double axis balance or rigid suspension, the mass balance block is arranged

    between the front and rear leaf springs.

    4) the key parts adopt the world's top technology products

    5) based on strong technical support and top level technology make the trucks with high quality and more

    reliable



    Hydraulic Flatbed Semi Trailer Truck For Construction Loading 80 Tons 17mHydraulic Flatbed Semi Trailer Truck For Construction Loading 80 Tons 17m
