Comfortable Dump Tipper Semi Trailer / Compact Structure Semi Dump Trailers

    • Comfortable Dump Tipper Semi Trailer / Compact Structure Semi Dump Trailers
    • Comfortable Dump Tipper Semi Trailer / Compact Structure Semi Dump Trailers
    • Comfortable Dump Tipper Semi Trailer / Compact Structure Semi Dump Trailers
    • Comfortable Dump Tipper Semi Trailer / Compact Structure Semi Dump Trailers
  • Comfortable Dump Tipper Semi Trailer / Compact Structure Semi Dump Trailers

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: 3 Axles 60-80Tons

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: Negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship, or by 40GP, 40HQ,40FR and so on
    Delivery Time: 20 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 4,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Tipper Semi Trailer Model: 3 Axles
    Advantage: Comfortable Loading Capacity: 60-80tons
    Tank Capacity: 25-45CBM Structure: Compact Structure
    Axles: 3X16 Tons Other Name: Semi Dump Trailers

    Comfortable Dump Tipper Semi Trailer / Compact Structure Semi Dump Trailers



    Tipper Semi Trailer  Description:



    The hydraulic cylinder of the Semi Trailer Dump Truck is made from the special

    manufacturers, its material strength is much higher than the ordinary cylinder, improve

    the use of the product cycle.



    The rear panel of the vehicle is locked with a mechanical device, the lock hook and the

    back plate are automatically opened at the time of unloading, and the blockage is avoided

    when unloading, especially when the stone is unloaded, and the loss of the vehicle is

    reduced.



    The Semi Trailer Dump Truck is pulled goods volume can reach 45 CBM (non-standard 65CBM),

    the weight can reach 80t - 100t, greatly improving the work efficiency is 8x4 self

    unloading alternative products (Dump Truck up to pull 25 CBM).



    Tipper Semi Trailer Specification:



    Comfortable Dump Tipper Semi Trailer / Compact Structure Semi Dump Trailers

    Model 3 Axles 60Tons

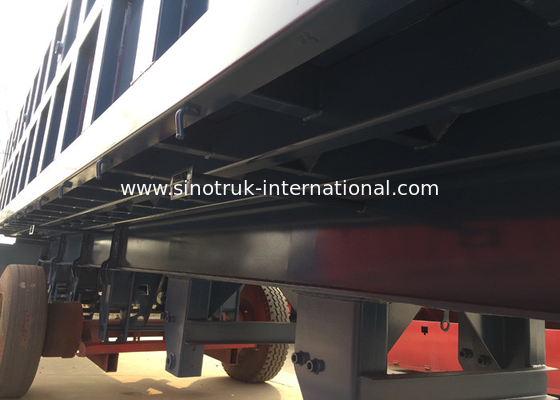

    Axle

    FUWA brand, 16ton, 3 Sets

    Main beam

    Beam height: 500mm

    Upper plate: 10mm

    Double Middle plate: 6 mm

    Down plate: 12mm

    Tire/Rim

    1200R20, 13pcs, 8.5, 12 pcs

    Brake Chamber

    Standard 6 pcs

    Spare wheel carrier

    2 pcs

    Tool box

    1 pcs

    Electrical System

    Chinese standard 24C lighting system

    Side Maker Lamp

    LED lamp

    Painting

    Polyurethane Paint

    Overall dimension

    12000×2500×3880(mm)

    Color White, red, green, golden and so on.



    Competitive Advantage:



    1) Optimized cargo body structure,light weight,high rigidity,large loading capacity

    2) Using the high strength steel,it has long service life

    3) Optimized the whole truck structure has lower center of gravity,with higher security when lifting the cargo

    body.

    4) the key parts adopt the world's top technology products

    5) based on strong technical support and top level technology make the trucks with high quality and more

    reliable





    Comfortable Dump Tipper Semi Trailer / Compact Structure Semi Dump Trailers

    Comfortable Dump Tipper Semi Trailer / Compact Structure Semi Dump Trailers
