SINOTRUK Flat Bed Semi Trailer Truck For Transport Containers Bulk Cargo

    • SINOTRUK Flat Bed Semi Trailer Truck For Transport Containers Bulk Cargo
    • SINOTRUK Flat Bed Semi Trailer Truck For Transport Containers Bulk Cargo
    • SINOTRUK Flat Bed Semi Trailer Truck For Transport Containers Bulk Cargo
    • SINOTRUK Flat Bed Semi Trailer Truck For Transport Containers Bulk Cargo
  • SINOTRUK Flat Bed Semi Trailer Truck For Transport Containers Bulk Cargo

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: 3 Axles 30-60Tons

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: Negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship, or by 40GP, 40HQ,40FR and so on
    Delivery Time: 20 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 4,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Flat Bed Semi Trailer Truck Application: Transport Containers Bulk Cargo
    Fifth Wheel: #50, #90 Brand: SINOTRUK
    Dimension Of Flat: 12600*3000mm Axles: 3X16 Tons
    Material: Carbon Steel Or Mn Steel Landing Gear: 28T JOST

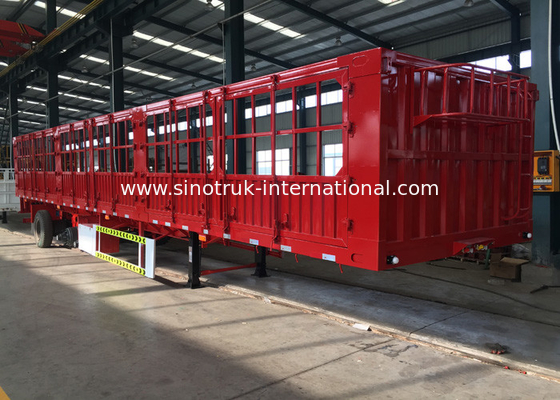

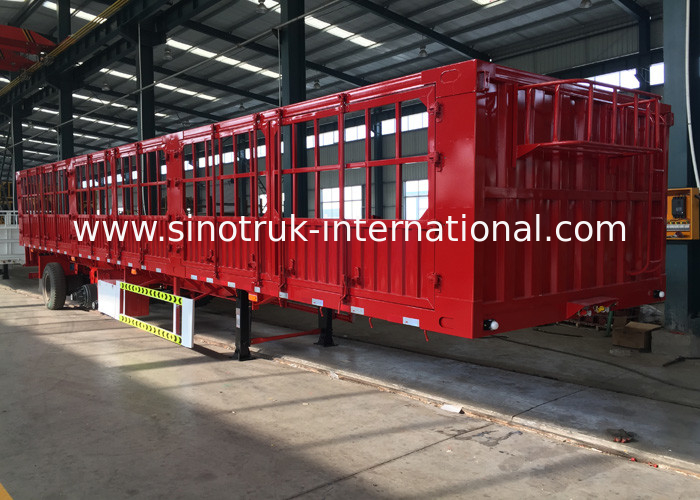

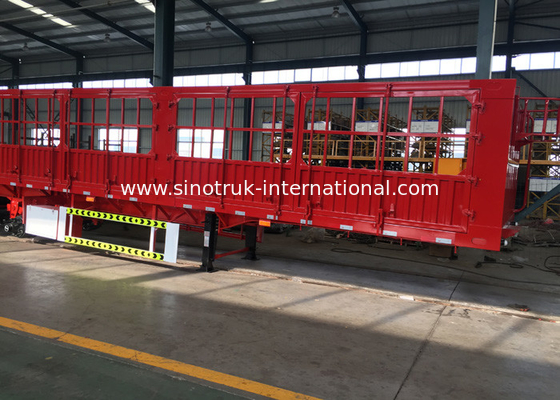

    SINOTRUK Flat Bed Semi Trailer Truck For Transport Containers Bulk Cargo

    Semi Trailer Truck Introduction:

    Semi Trailer Truck can be used to transport containers ,bulk cargo and other goods , and we also can according to your requirements to make this trailer.QUEST production the flatbed trailer all configurations and accessories used domestic and aboard famous brand. Our main beam material use Q345,it has high-strength and strong stiffness features.other type flatbed trailer , like extendable flatbed trailer , flatbed trailer for transporting logs , and flatbed trailer with side wall.




    Semi Trailer Truck Specification:


    Dropside Cargo Semi Trailer Truck 3 Axles 30-60Tons 13-16m SINOTRUK INTERNATIONAL

    Model3 Axles 60Tons

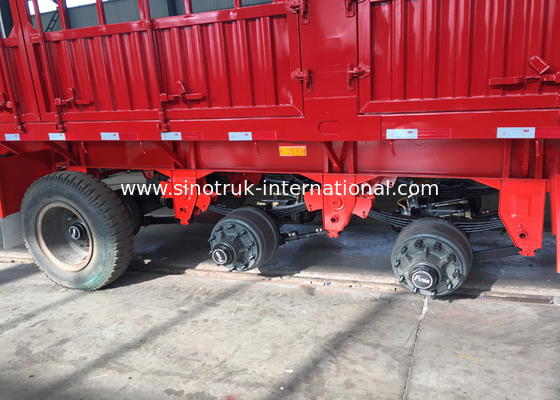

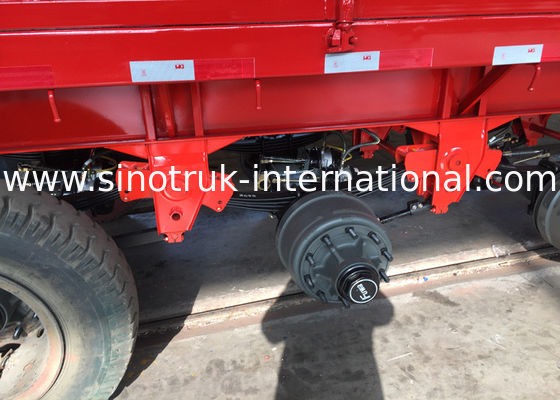

    Axle

    FUWA brand, 16ton, 3 Sets

    Main beam

    Beam height: 500mm
    Upper plate: 10mm
    Double Middle plate: 6 mm
    Down plate: 12mm

    Dimension of cargo body

    13000*3000*600+1500mm

    Material

    Carbon steel or Mn steel

    Gross vehicle weight

    70000kgs

    King pin

    #90

    Support leg

    JOST Standard 28T

    Suspension

    Normal suspension

    Thickness leaf spring

    10/10/10

    Tire/Rim

    1200R20, 13pcs, 8.5, 12 pcs

    Brake Chamber

    Standard 6 pcs

    Spare wheel carrier

    2 pcs

    Tool box

    1 pcs

    Electrical System

    Chinese standard 24C lighting system

    Side Maker Lamp

    LED lamp

    Painting

    Polyurethane Paint

    Overall dimension

    16000×2500×3880(mm)

    ColorWhite, red, green, golden and so on.


    Tri Axle Semi Tipper Applications:

    Dropside Cargo semi trailer for light or big size goods. suitable for long and short distance logistics.

    1. Main-frame: Longitudinal beam, using high strength structural steel and offering bending and shock resistance, can met heavy load requirments.

    2. Sub-frame: Using high strength 16Mn structural steel and intergrated hydraulic system increase operation accuracy. Widened turning point of tipper body increase the overall stability, reliability and safety of the operation.

    3. Tipping mechanism: Mallery type rear dumping, front tipping rear dumping, side dumping mechanisms available for customer order.

    4. Different types of suspension are designed for various operating condition: Bogie suspension; Air suspension; Mechanical suspension.

    SINOTRUK Flat Bed Semi Trailer Truck For Transport Containers Bulk CargoSINOTRUK Flat Bed Semi Trailer Truck For Transport Containers Bulk Cargo
