Place of Origin: | China |
Brand Name: | SINOTRUK |
Certification: | ISO/3C/BV/IFA/SGS |
Model Number: | ZZ1127G4215C1 |
Minimum Order Quantity: | 1 Unit |
---|---|
Price: | USD26000-USD26500/UNIT)negotiation |
Packaging Details: | Nude or Waxing in Roro or bulk ship |
Delivery Time: | 25 working days after received your advance payment |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 2,000units per month |
Product Name: | Refrigerator Truck | Feature: | Low Temperature |
---|---|---|---|
Drive Type: | LHD 4X2 | Emission Standard: | Euro 2 |
Application: | Refrigerated Food Truck | Loading Capacity: | 5-8Tons |
High Light: | refrigerated box truck,refrigerated food truck,4X2 Refrigerated Food Truck |

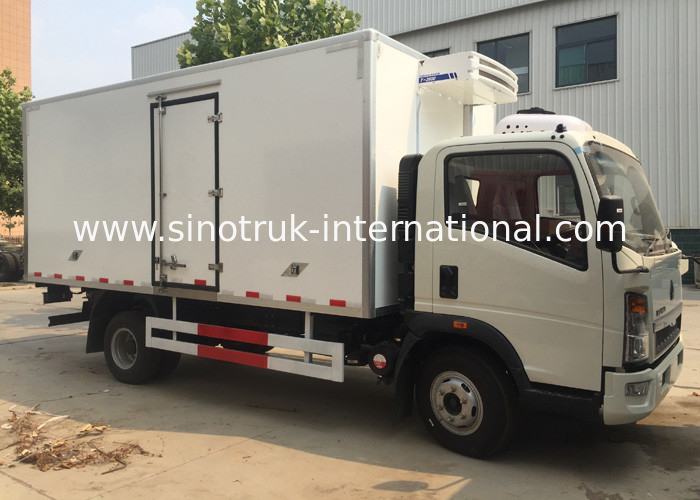

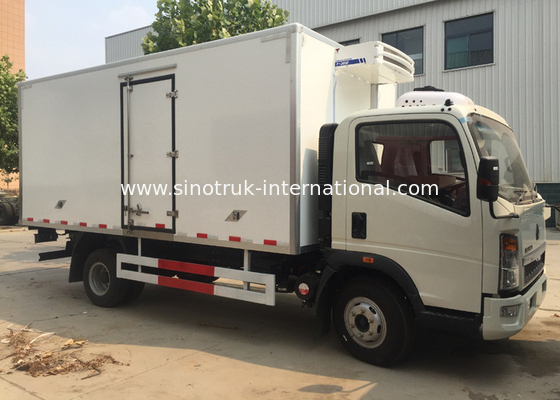

Low Temperature Refrigerator Truck / LHD 4X2 Refrigerated Food Truck
Refrigerator Truck Description:
power have 266HP, 290HP, 336HP, 371HP and so on.
Acoording to the loading capacity we will equipped with suitable Refrigerator, we have many famouse brand, such as Carrier, Thermo and so on.
Refrigerator Truck Specification:
Low Temperature Refrigerator Truck / LHD 4X2 Refrigerated Food Truck | |
Chassis Model |
ZZ1127G4215C1 |
Drive Type |
4×2 |
Engine |
YC4E140, 140HP |
Cabin |
2080 lengthened cab(with one sleeper, air-conditioner and two new-style seat) |
Transmission |
DC6J48TC(6 forwards & 1 reverses) |
Front Axle |
3.2 Tons |
Driving Axle |
8.2 Tons |
Clutch |
hydraulically operating with air assistance |
Rim/ Tire |
8.25-20, 9.00R20 |
Wheel base |
4200(mm) |
Van board material |
polymer composites |
Dimension of cargo body |
5200*2300*2000mm, Bottom:3mm Side:1.5mm |
Refrigerator |
XL-300, -18C0 |
Overall dimension |
7128×2462×3375mm |
Refrigerator Truck Applications:
Refrigerated Truck can widespread use in transportation of all kind of frozen food, vaccinum, vegetables and fruit.
Construction
Chassis,heat insulation box body,refrigeration unit,temperature recorders in the carriage,for special purpose,optional parts including meat hook,aluminum alloy rail,ventilation channel and others.
Refrigeration unit classification
Non independent refrigeration unit,independent unit,the domestic units and imported units.
Usually using external refrigerator,for a few mini refrigerated truck,using internal refrigerator.
