Heavy Duty White Color Semi Bed Trailer For 60 Tons Loading Capacity

Heavy Duty White Color Semi Bed Trailer For 60 Tons Loading Capacity

  • Heavy Duty White Color Semi Bed Trailer For 60 Tons Loading Capacity
  • Heavy Duty White Color Semi Bed Trailer For 60 Tons Loading Capacity
  • Heavy Duty White Color Semi Bed Trailer For 60 Tons Loading Capacity
  • Heavy Duty White Color Semi Bed Trailer For 60 Tons Loading Capacity
Heavy Duty White Color Semi Bed Trailer For 60 Tons Loading Capacity
Product Details:
Place of Origin: China
Brand Name: SINOTRUK
Certification: ISO/3C/BV/IFA/SGS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship, or by 40GP, 40HQ,40FR and so on
Delivery Time: 20 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4,000units per month
Contact Now
Detailed Product Description
Model Number: SINOTRUK Product Name: Semi Trailer Dump Truck
Model: 3 Axles 60-80Tons Fifth Wheel: #50, #90
Loading Capacity: 60-80tons Tank Capacity: 25-45CBM
Cargo Body: 10500*2300*1500mm Axles: 3X16 Tons
Material: Carbon Steel Or Mn Steel Color: White
High Light:

semi flatbed trailers

,

hydraulic flatbed trailer

Semi Trailer Dump Truck 3 Axles 60Tons 25-45CBM for Mining and Construction





Description:



Semi Trailer Dump Truck 3 Axles 60Tons 25-45CBM for Mining and Construction

Our company is the production of a new Semi Trailer Dump Truck, the low center of gravity

structure design, to prevent lifting rollover occurs. Lower center of gravity to 1.3

meters, 1.4 meters, when loading do not shake and do not susceptible to rollover, reduce

the damage of tires and springs. The truck frame and the carriage has obtained national

patent frame with 16 beam Manganese plate made greatly increases the bearing strength.

Wide rear and narrow front design is more conducive to dump, is not easy to be blocked,

goods uniform unloading, never lead to rollover.



The hydraulic cylinder of the Semi Trailer Dump Truck is made from the special

manufacturers, its material strength is much higher than the ordinary cylinder, improve

the use of the product cycle.



The rear panel of the vehicle is locked with a mechanical device, the lock hook and the

back plate are automatically opened at the time of unloading, and the blockage is avoided

when unloading, especially when the stone is unloaded, and the loss of the vehicle is

reduced.



The Semi Trailer Dump Truck is pulled goods volume can reach 45 CBM (non-standard 65CBM),

the weight can reach 80t - 100t, greatly improving the work efficiency is 8x4 self

unloading alternative products (Dump Truck up to pull 25 CBM).



Specification:



Semi Trailer Dump Truck 3 Axles 60Tons 25-45CBM for Mining and Construction

Model 3 Axles 60Tons
Axle

FUWA brand, 16ton, 3 Sets

Main beam

Beam height: 500mm

Upper plate: 10mm

Double Middle plate: 6 mm

Down plate: 12mm

Cargo Body

10500*2300*1500mm, floor:10mm, side:6mm

Material

Carbon steel or Mn steel

Gross vehicle weight

75000kgs

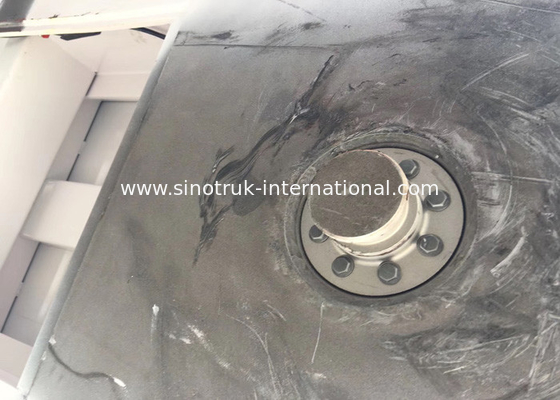

King pin

#90

Support leg

JOST Standard 28T

Suspension

Normal suspension

Thickness leaf spring

10/10/10

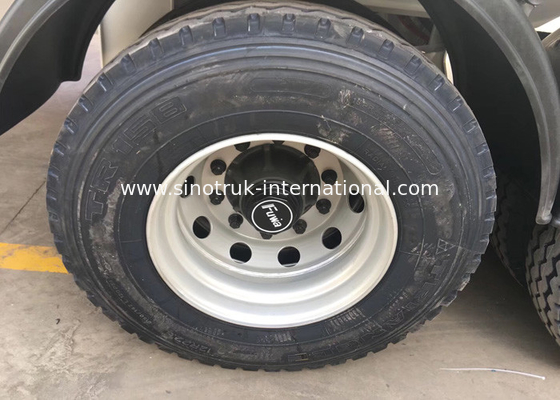

Tire/Rim

1200R20, 13pcs, 8.5, 12 pcs

Brake Chamber

Standard 6 pcs

Spare wheel carrier

2 pcs

Tool box

1 pcs

Electrical System

Chinese standard 24C lighting system

Side Maker Lamp

LED lamp

Painting

Polyurethane Paint

Overall dimension

12000×2500×3880(mm)

Color White, red, green, golden and so on.




Applications:



It’s suitable for Mining industry, Construction business, docks, for transporting soil, sand, stones and so  on.





FAQ

1. How Do You Transport The Semi Trailers
We Will Transport The Trailers By Rolling Ship Or Container,We Have Possess Long-Term Cooperation With Ship Agency Who Can Provide You Lowest Shipping Fee.


2. How Can You Guarantee Quality?
Our Raw Material And Oem Parts Including Axle, Suspension,Tire Are Purchased Centralized By Ourselves,Every Part Will Be Inspected Strictly.Moreover,Advanced Equipment Rather Than Only Worker Is Been Applied During The Whole Producing Process To Ensure The Welding Quality.


3.Can I Have Samples Of This Type Of Trailer To Test The Quality?
Yes, You Can Buy Any Samples To Test The Quality,Our Moq Is 1 Set.


4. What'S The Delivery Time And Can You Lower The Price?
It Depends On Your Order. The Delivery Time Is 7 Workdays After We Received Your Prepayment. If You Have Place An Order Of Large Quantities, Then ,Of Course, The Price Can Be Lowered.


5. Can I Customize The Painting And The Logo?
Yes, We Offer Customized Logo For Any Type.


6. Can You Satisfy My Spacial Requirement?
Sure! We Are Direct Manufacturer With Rich Experience And We Have Strong Producing Capacity And R&D Capacity.
