Place of Origin: | China |
Brand Name: | SINOTRUK |
Certification: | ISO/3C/BV/IFA/SGS |
Model Number: | 3 Axles 60-80Tons |
Minimum Order Quantity: | 1 Unit |
---|---|
Price: | Negotiation |
Packaging Details: | Nude or Waxing in Roro or bulk ship, or by 40GP, 40HQ,40FR and so on |
Delivery Time: | 20 working days after received your advance payment |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 4,000units per month |
Product Name: | Semi Trailer Dump Truck | Model: | 3 Axles 60-80Tons |
---|---|---|---|
Fifth Wheel: | #50, #90 | Loading Capacity: | 60-80tons |
Tank Capacity: | 25-45CBM | Cargo Body: | 10500*2300*1500mm |
Axles: | 3X16 Tons | Function: | Transport Heavy Duty Equipment |
High Light: | semi flatbed trailers,hydraulic flatbed trailer |

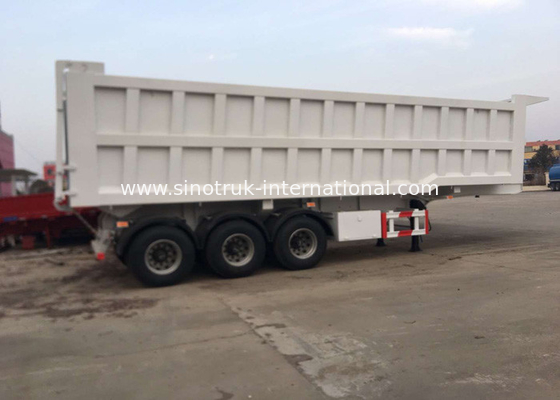

Semi Trailer Dump Truck 3 Axles 60Tons 25-45CBM for Mining and Construction
1. Semi Trailer Dump Truck
2. tri axle semi trailer
3. Transport Heavy Duty Equipment
4. Nude or Waxing in Roro or bulk ship, or by 40GP, 40HQ,40FR and so on
Description:
Semi Trailer Dump Truck 3 Axles 60Tons 25-45CBM for Mining and Construction
Our company is the production of a new Semi Trailer Dump Truck, the low center of gravity
structure design, to prevent lifting rollover occurs. Lower center of gravity to 1.3
meters, 1.4 meters, when loading do not shake and do not susceptible to rollover, reduce

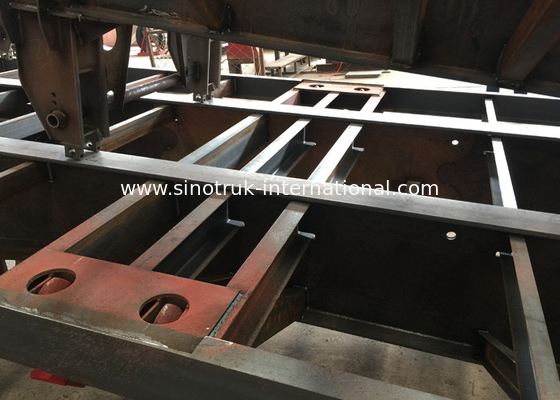

the damage of tires and springs. The truck frame and the carriage has obtained national
patent frame with 16 beam Manganese plate made greatly increases the bearing strength.
Wide rear and narrow front design is more conducive to dump, is not easy to be blocked,
goods uniform unloading, never lead to rollover.
The hydraulic cylinder of the Semi Trailer Dump Truck is made from the special
manufacturers, its material strength is much higher than the ordinary cylinder, improve
the use of the product cycle.
The rear panel of the vehicle is locked with a mechanical device, the lock hook and the
back plate are automatically opened at the time of unloading, and the blockage is avoided
when unloading, especially when the stone is unloaded, and the loss of the vehicle is
reduced.
The Semi Trailer Dump Truck is pulled goods volume can reach 45 CBM (non-standard 65CBM),
the weight can reach 80t - 100t, greatly improving the work efficiency is 8x4 self
unloading alternative products (Dump Truck up to pull 25 CBM).
Specification:
Semi Trailer Dump Truck 3 Axles 60Tons 25-45CBM for Mining and Construction |
|
Model | 3 Axles 60Tons |
Axle |
FUWA brand, 16ton, 3 Sets |
Main beam |
Beam height: 500mm Upper plate: 10mm Double Middle plate: 6 mm Down plate: 12mm |
Cargo Body |
10500*2300*1500mm, floor:10mm, side:6mm |
Material |
Carbon steel or Mn steel |
Gross vehicle weight |
75000kgs |
King pin |
#90 |
Support leg |
JOST Standard 28T |
Suspension |
Normal suspension |
Thickness leaf spring |
10/10/10 |
Tire/Rim |
1200R20, 13pcs, 8.5, 12 pcs |
Brake Chamber |
Standard 6 pcs |
Spare wheel carrier |
2 pcs |
Tool box |
1 pcs |
Electrical System |
Chinese standard 24C lighting system |
Side Maker Lamp |
LED lamp |
Painting |
Polyurethane Paint |
Overall dimension |
12000×2500×3880(mm) |
Color | White, red, green, golden and so on. |
Applications:
It’s suitable for Mining industry, Construction business, docks, for transporting soil, sand, stones and so on.
FAQ
Q1. What is your terms of packing?
A: For trucks usually waxing before shipment. For spare parts will be carton, wooden case or frame according to different goods.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We will show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 15 to 30 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
