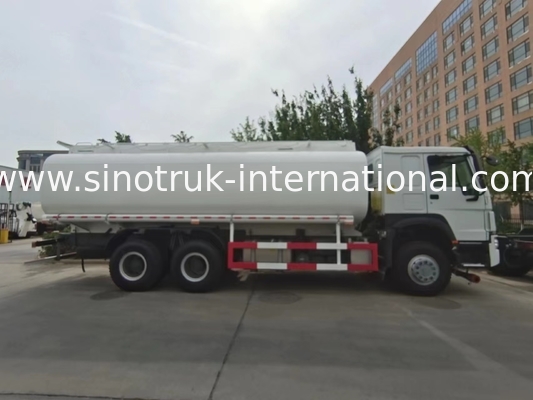

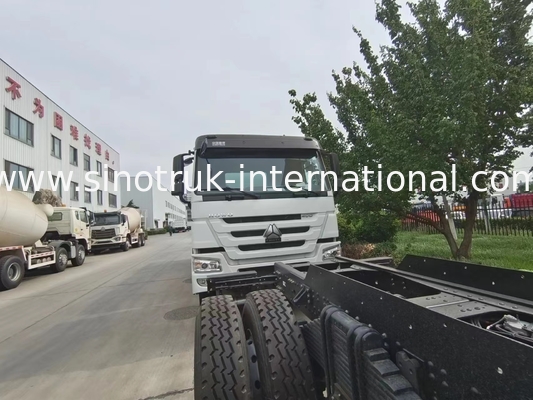

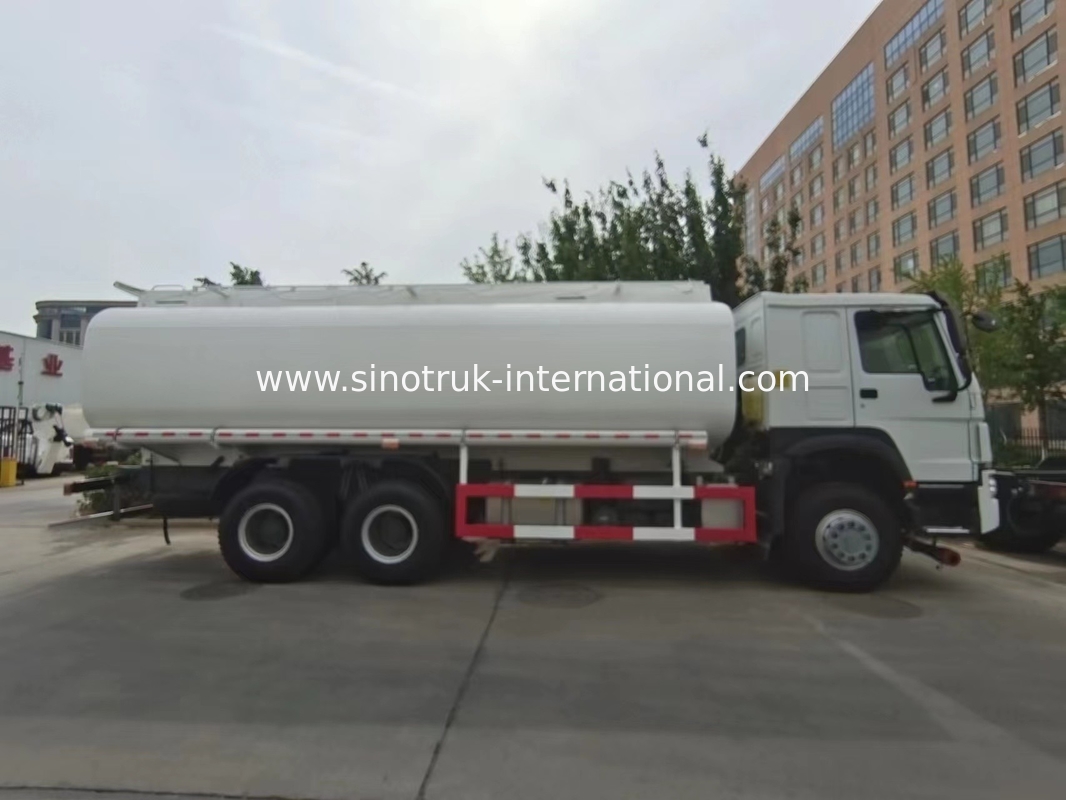

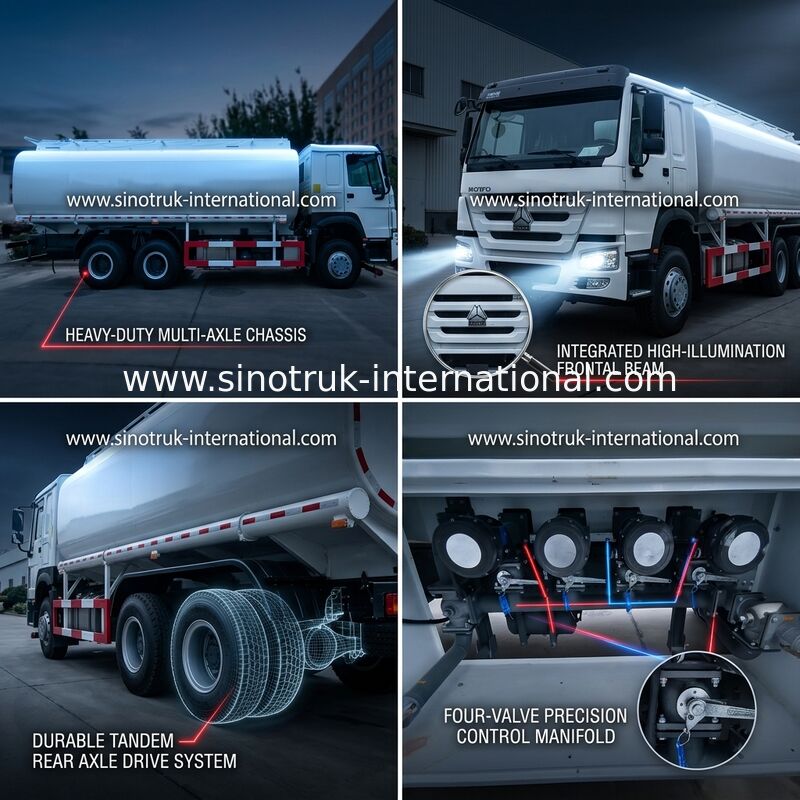

HOWO 6×4 10 Wheels Oil Tank Truck 400HP 20CBM For Transportation

HOWO 6×4 10 Wheels Oil Tank Truck 400HP 20CBM For Transportation

  • HOWO 6×4 10 Wheels Oil Tank Truck 400HP 20CBM For Transportation
  • HOWO 6×4 10 Wheels Oil Tank Truck 400HP 20CBM For Transportation
  • HOWO 6×4 10 Wheels Oil Tank Truck 400HP 20CBM For Transportation
  • HOWO 6×4 10 Wheels Oil Tank Truck 400HP 20CBM For Transportation
HOWO 6×4 10 Wheels Oil Tank Truck 400HP 20CBM For Transportation
Product Details:
Place of Origin: China
Brand Name: SINOTRUK HOWO
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ1257V4647B1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 10-30 working days
Payment Terms: L/C, T/T
Supply Ability: 3,000 units per month
Contact Now
Detailed Product Description
Product Mame: Oil Tank Truck Model: ZZ1257V4647B1
Color: White Drive Type: LHD 6X4
Engine: WP12.400E201, 400HP, Euro 2
High Light:

20CBM Oil Tank Truck

,

400HP Engine Oil Tank Truck

,

HOWO 6×4 Oil Tank Truck

HOWO 6×4 10 Wheels Oil Tank Truck 400HP 20CBM



Oil Tank Truck SINOTRUK HOWOA7 20CBM for Oil Transportation 6X4 LHD Euro2 400HP



Description:



The SINOTRUK HOWO A7 Oil Tank Truck is designed with A7-W Cab technology and HF7 or HF9 front axle, as well as HC16 driving axles. It is available in 4X2, 6X2, 6X4, and 8X4 drive types, with engine power ranging from 266HP to 420HP.

Also known as mobile fuel trucks, our Oil Tankers are used for the transportation and storage of oil derivatives such as gasoline, diesel oil, lubricating oil, and coal tar oil. They are equipped with oil equipment and pumps to facilitate different oil and gas transportation needs. The tanker's special parts include a tank, PTO, drive shaft, gear pump, and pipeline system components such as an oil pump, three through four ball valve, and two-way valve. The pipes system is designed to suit various oil transportation requirements.

Our Oil Tank Trucks are manufactured using advanced butt welding technology and undergo high-pressure gas testing to check for leaks. The tanks are designed with high strength, stable center of gravity, and are safe and stable during operation. After welding, the tanks undergo shot blasting pretreatment to remove rust, and are painted using advanced baking technology to ensure durability and a beautiful appearance. The tankers have independent sub-warehouses to pack different oil products, chemicals, and food, making them suitable for use as liquid food trucks, chemical liquid trucks, and insulation liquid transport vehicles. They can also be used as dangerous goods transport vehicles and asphalt transport vehicles.



Specification:



Oil Tank Truck SINOTRUK HOWOA7 20CBM for Oil Transportation 6X4 LHD Euro2 400HP
Chassis Model ZZ1257V4647B1
Drive Type 6×4
Engine WP12.400E201
Cabin A7-W lengthened cab(with one sleeper, air-conditioner and two new-style seat)
Transmission HW15710(10 forwards & 2 reverses)
Front Axle HF9(1X9 Tons)
Driving Axle HC16(1X16 Tons)
Clutch hydraulically operating with air assistance
Rim/ Tire 11.00R20, Radial tyre
Wheel base 4400+1350(mm)
Capacity of tank body 16-20CBM
Thickness of tank body 5mm,With 5 cabin
Basic setup Gear oil pump, flow meter, flash hider, fire extinguisher
Overall dimension 9200×2500×3150mm
The curb weight 11940(Kg)
Gross weight 25000 kg
Max. speed 95km/h
Color White, red, green, golden and so on.


Applications:



The Oil tank truck is mainly used for oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil)

transportation and storage.



Competitive Advantage:



1) Have various truck models to meet your needs
2) The most important components adopt the world's leading technology products
3) Based on strong technical support and advanced technology, the truck has excellent performance

more reliable quality

4) Optimize the structure of the bearing body, light weight, high rigidity, and large bearing capacity

5) Using high-strength steel, long service life

6) Optimized sealing structure, better sealing effect.

7) Intelligent hydraulic control system helps to avoid misoperation, providing higher safety and operating efficiency.

8) A variety of box structures and equipment options

9) Low fuel consumption
10) Enough powerful engine

11) Competitive price, cost-effective
12) Fast and efficient spare parts supply to provide you with more convenience
13) Fast delivery time, we can accurately and quickly design and produce according to your needs

14) Professional import and export trade process makes customs clearance more efficient
